Bilstein Suspension Shock Absorber - 33-244495

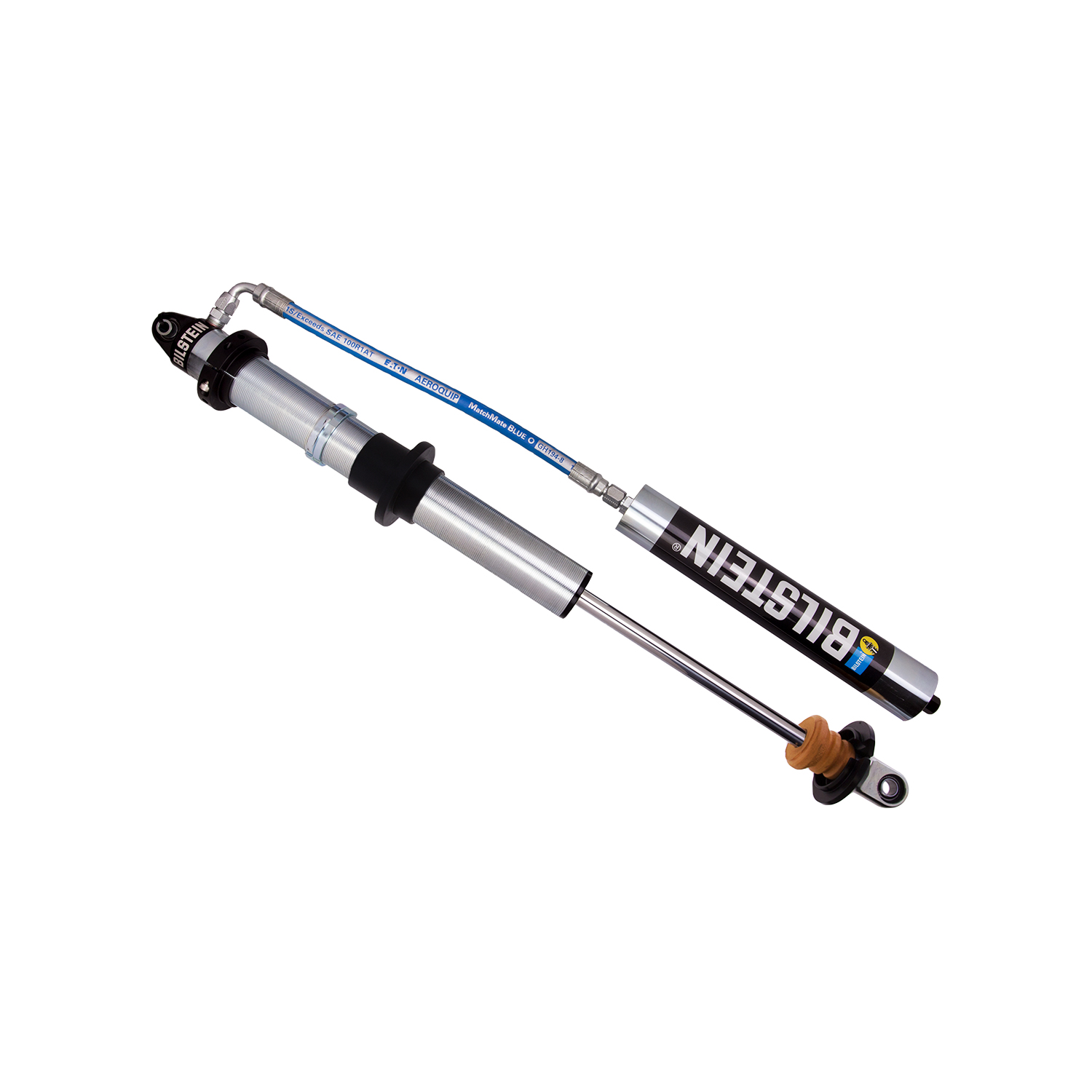

M 9200 (Coilover) - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-244495
$781.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein M 9200 (Coilover) is designed specifically for professional off-road competition use which requires custom lengths and valve settings. M 9200 (Coilover) features a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard coilover springs. These coilovers are equipped with a 60mm ID remote reservoir and are owner rebuildable and revalvable. M 9200 (Coilover) offers the ability to efficiently adjust spring rates to achieve the optimum performance.

Application: No Applications

Products specifications

Attribute name Attribute value
Boot Included N/A
Mount Type Eye-to-Eye
Lower Mount Type Eye .5x1.5in
Compression @0.52m/s 1000
Optional Reservoir Clamp N/A
Internal Design Monotube
Finish Zinc Plated
Reservoir Yes
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Collapsed Length (IN) 24.50
Piston Diameter 60mm
Stroke/Travel Length (IN) 14.00
Shaft Diameter (mm) 22.0
Stroke/Travel Length (mm) 355.6
Series M 9200 (Coilover)
Extended Length (IN) 38.50
Rebound @0.52m/s 2550
Extended Length (mm) 977.9
Collapsed Length (mm) 622.3
Upper Mount Type Eye .5x1.5in
Body Design Threaded Body (Coilover)
Country of Origin US
Condition New
