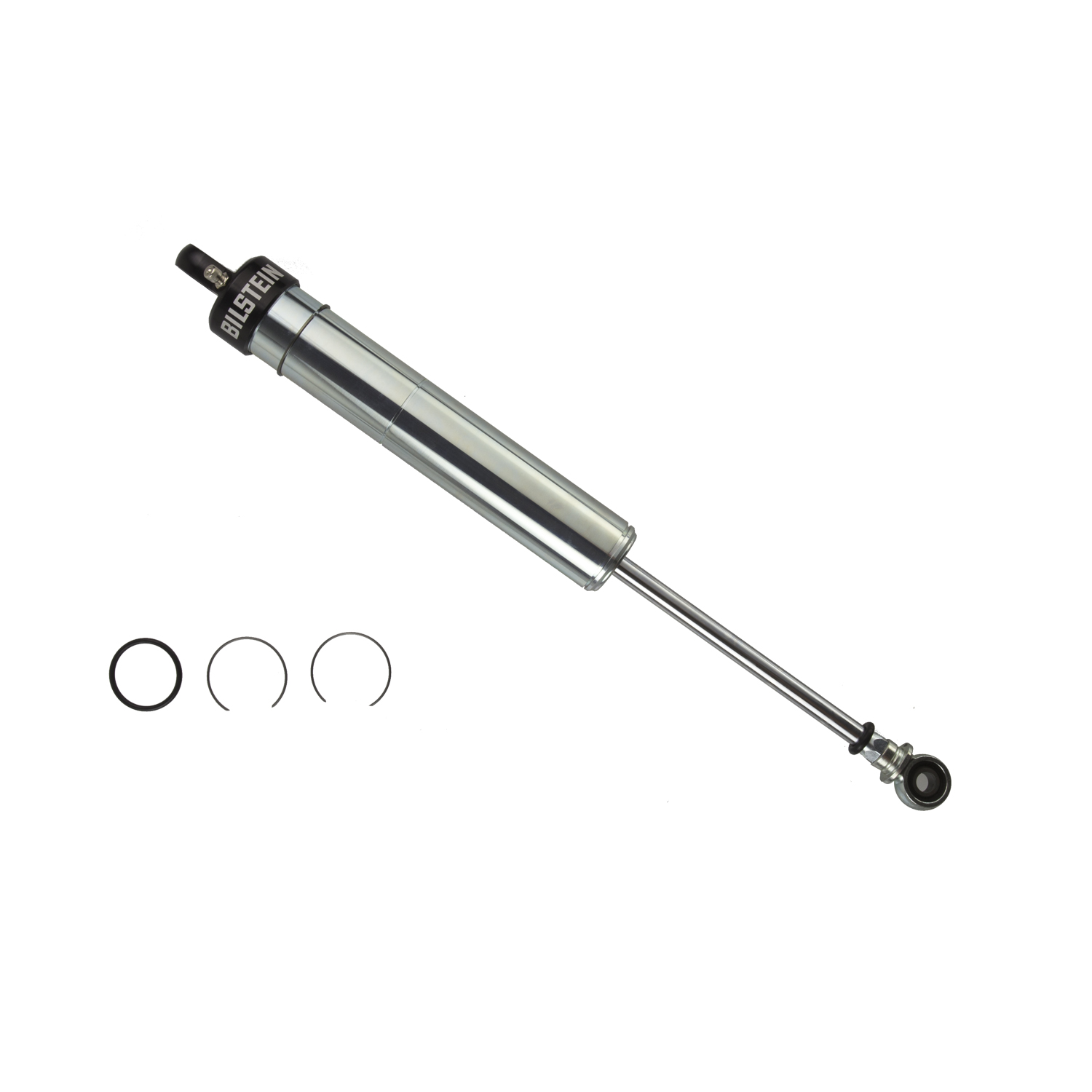

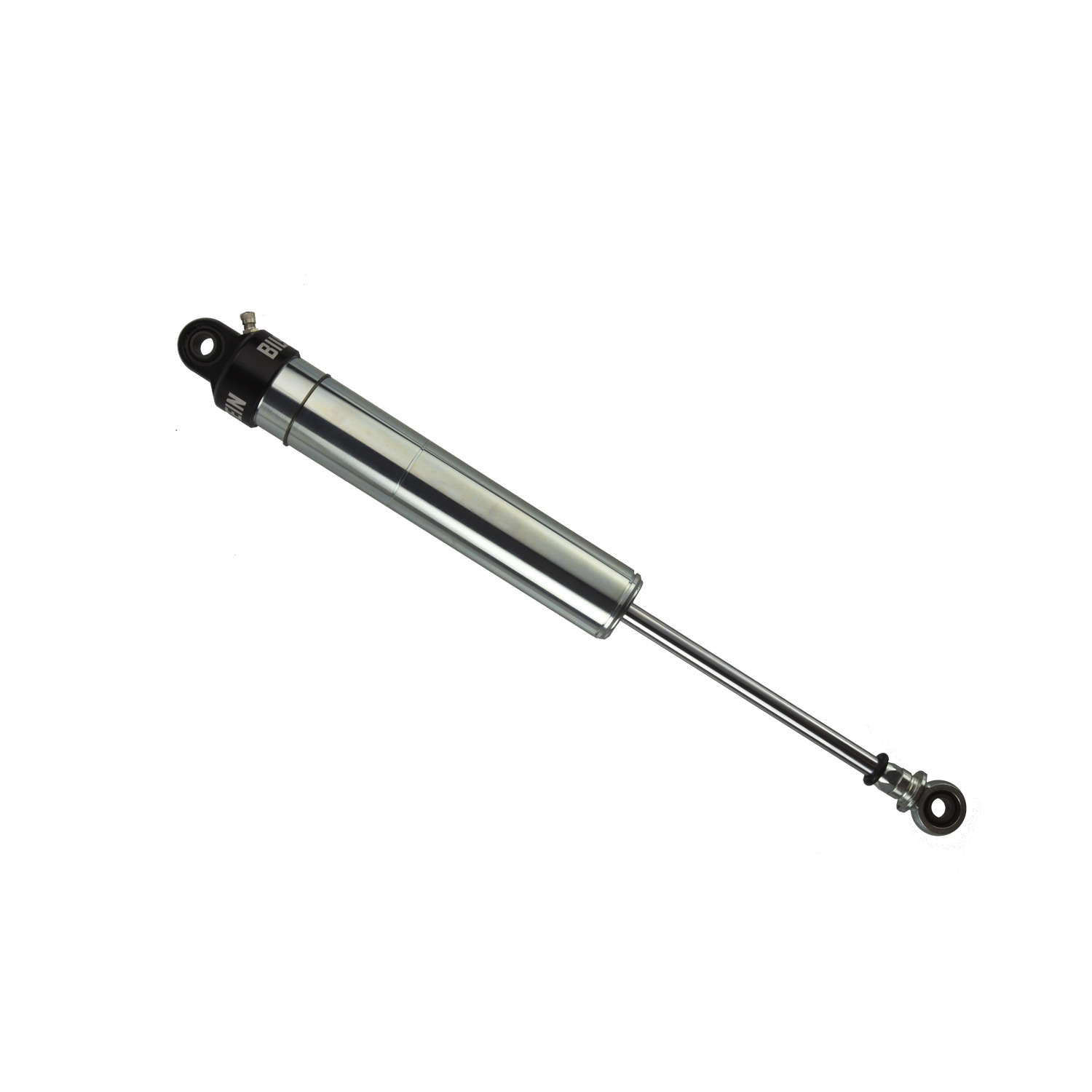

Bilstein Suspension Shock Absorber - 33-247748

SN2 Series - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-247748
Old price: $199.00
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein SN2 Series shock absorbers feature a steel, smooth body design utilizing the 46mm monotube technology (piston and piston band sold separately) designed for motorsports applications. These shock absorbers are available in non-, single and double adjustable configurations in optimized lengths and can also be converted to a coilover design (kit sold separately). SN2 Series shock absorbers are ideal for racers whose sanctioning rules require steel body shock absorbers but allow for a user rebuildable design and aluminum end caps.

Products specifications

Attribute name Attribute value
Collapsed Length (IN) 14.03
Internal Design Monotube
Upper Mount Type 1/2in Heim
Lower Mount Type 1/2in Heim
Collapsed Length (mm) 356.3
Valving Identifier Digressive Dry Kit (no valving)
Finish Zinc Plated
Extended Length (IN) 21.80
Extended Length (mm) 553.8
Body Design Smooth Body Screw Top (Non-coilover)
Body Material Steel
Series SN2 Series
Adjustable Damping Non-Adjustable
Boot Included No
Piston Type Digressive
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware B4-BOA-0000117
Piston Diameter 46mm
Shaft Diameter 14mm
Stroke/Travel Length (mm) 197.4
Stroke/Travel Length (IN) 7.77
Country of Origin US
Condition New
