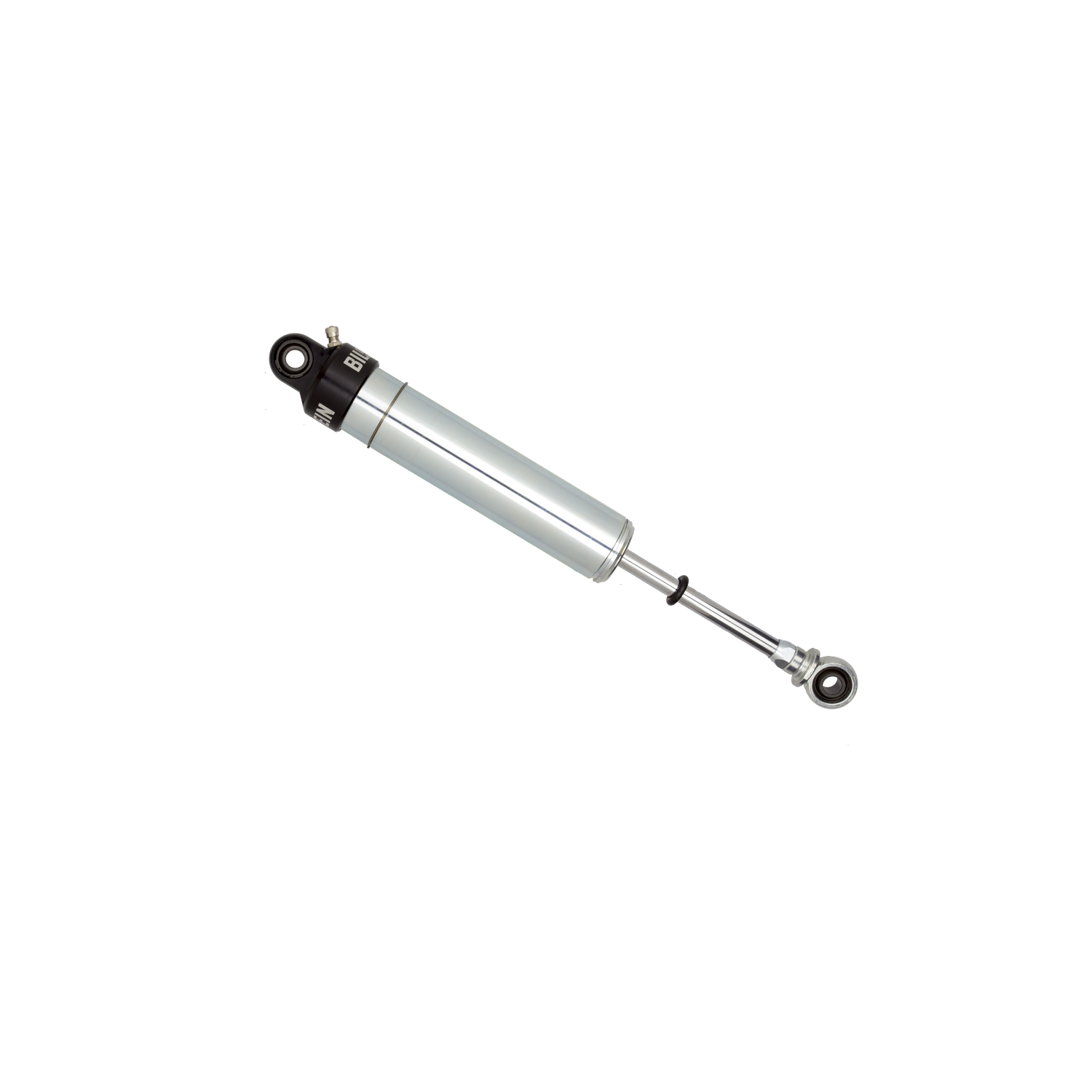

Bilstein Suspension Shock Absorber - 33-247816

SN2 Series - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-247816
Old price: $199.00
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein SN2 Series shock absorbers feature a steel, smooth body design utilizing the 46mm monotube technology (piston and piston band sold separately) designed for motorsports applications. These shock absorbers are available in non-, single and double adjustable configurations in optimized lengths and can also be converted to a coilover design (kit sold separately). SN2 Series shock absorbers are ideal for racers whose sanctioning rules require steel body shock absorbers but allow for a user rebuildable design and aluminum end caps.

Products specifications

Attribute name Attribute value
Series SN2 Series
Boot Included No
Piston Type Linear
Extended Length (IN) 17.81
Body Design Smooth Body Screw Top (Non-coilover)
Upper Mount Type 1/2in Heim
Extended Length (mm) 452.3
Adjustable Damping Non-Adjustable
Valving Identifier Linear Dry Kit (no valving)
Finish Zinc Plated
Collapsed Length (mm) 304.8
Body Material Steel
Internal Design Monotube
Lower Mount Type 1/2in Heim
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware B4-BOA-0000117
Collapsed Length (IN) 12.00
Piston Diameter 46mm
Stroke/Travel Length (mm) 147.6
Shaft Diameter 14mm
Stroke/Travel Length (IN) 5.81
Country of Origin US
Condition New
