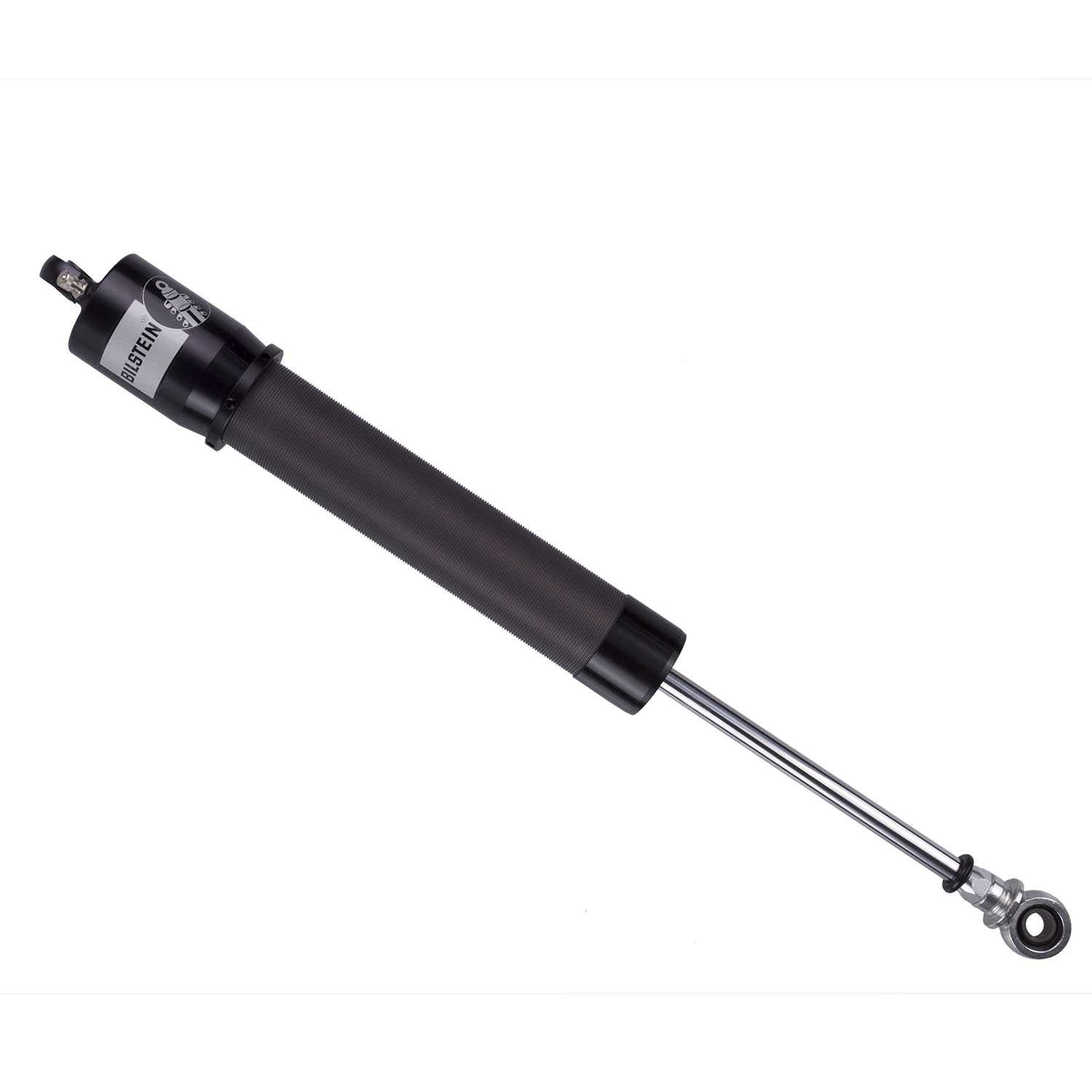

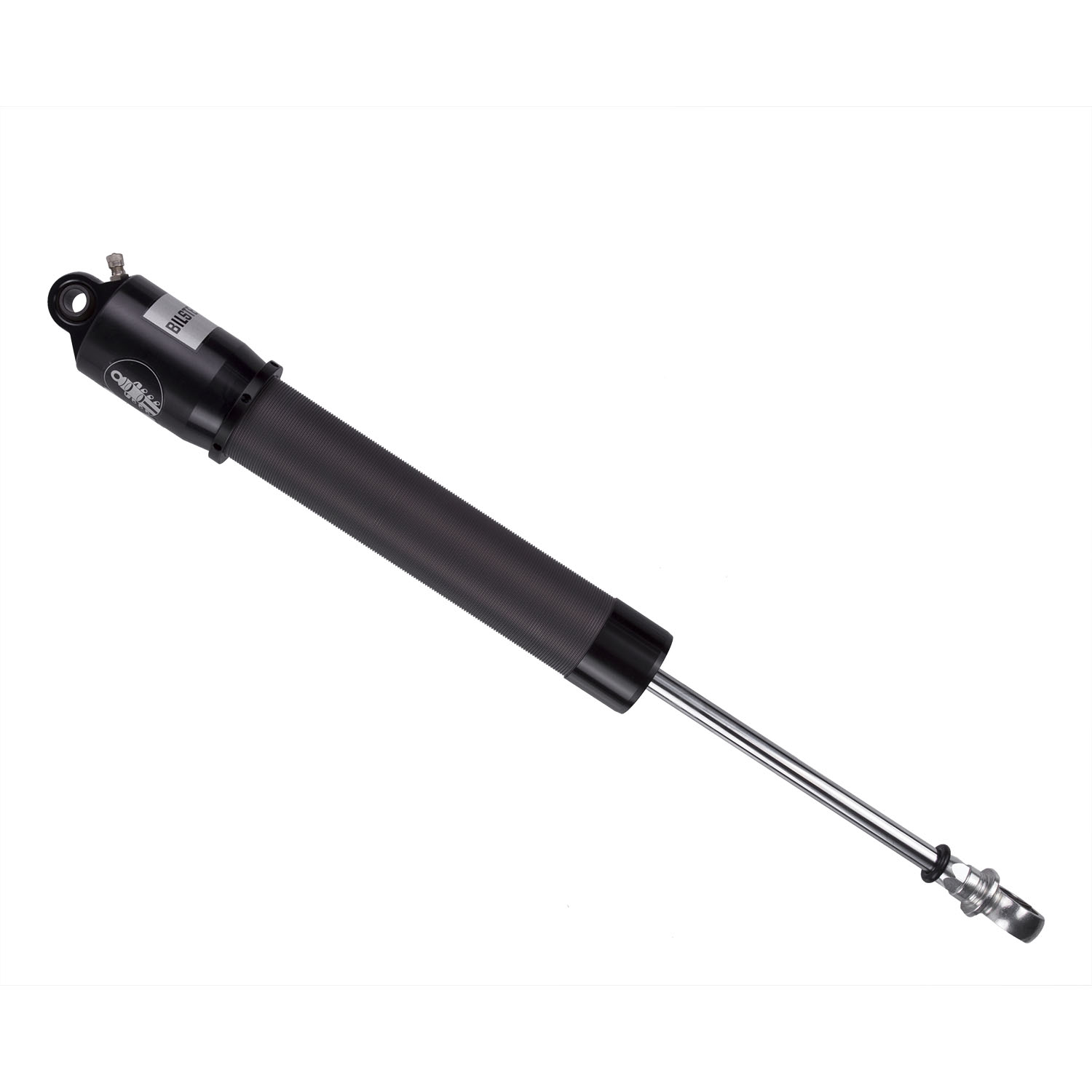

Bilstein Suspension Shock Absorber - 33-252520

XVA Series - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-252520
Old price: $430.00
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance.

Products specifications

Attribute name Attribute value
Extended Length (IN) 23.78
Body Material Aluminum
Internal Design Monotube
Adjustable Damping Non-Adjustable
Series XVA Series
Piston Type Linear
Collapsed Length (IN) 15.45
Body Design Threaded Body Large Bulb Screw Top (Coilover)
Collapsed Length (mm) 392.5
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware B4-KT1-Z245A01
Piston Diameter 46mm
Shaft Diameter 14mm
Stroke/Travel Length (mm) 211.6
Stroke/Travel Length (IN) 8.33
Boot Included No
Lower Mount Type 1/2in Heim
Valving Identifier Linear Dry Kit (no valving)
Upper Mount Type 1/2in Heim
Extended Length (mm) 604.0
Finish Clear Anodized
Country of Origin US
Condition New
