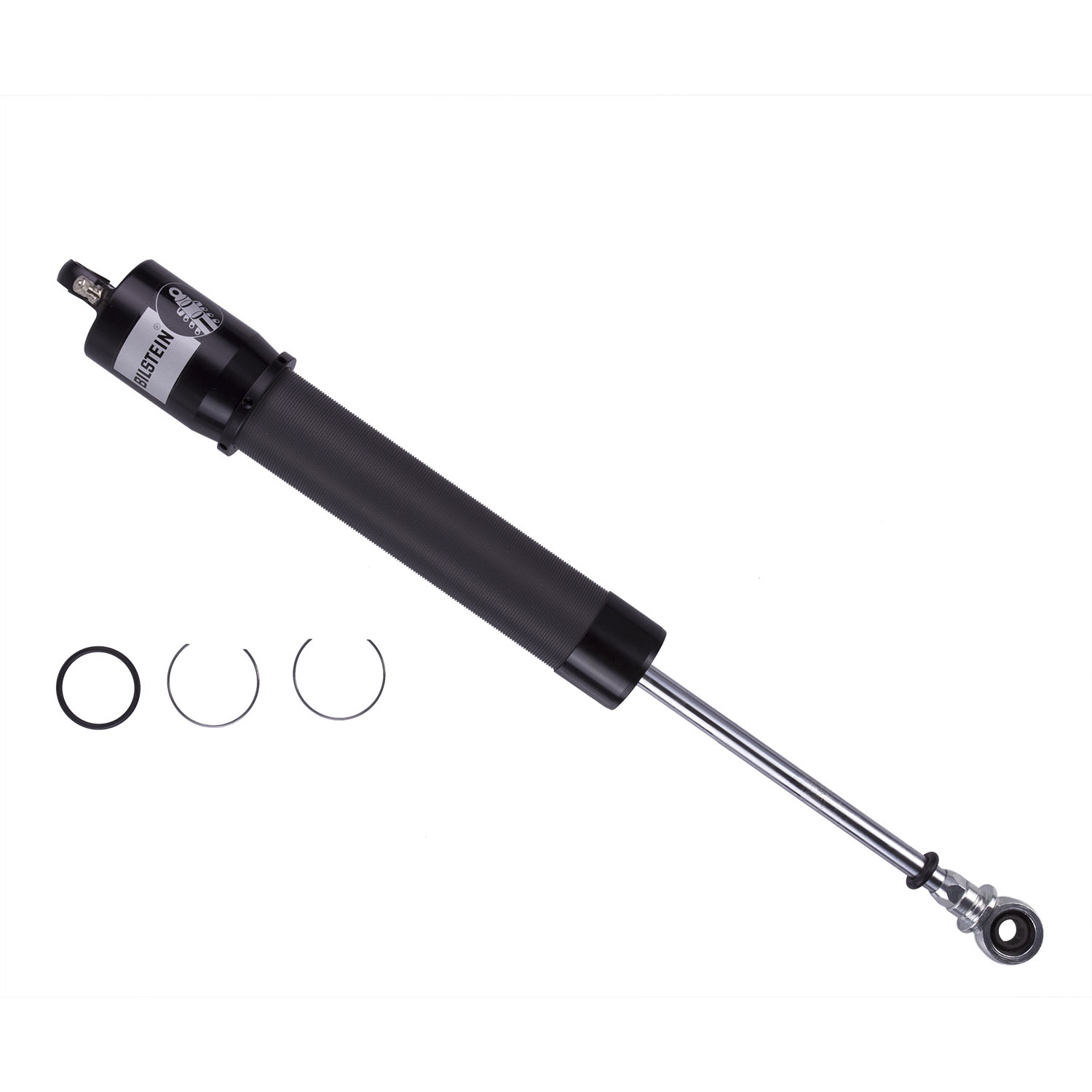

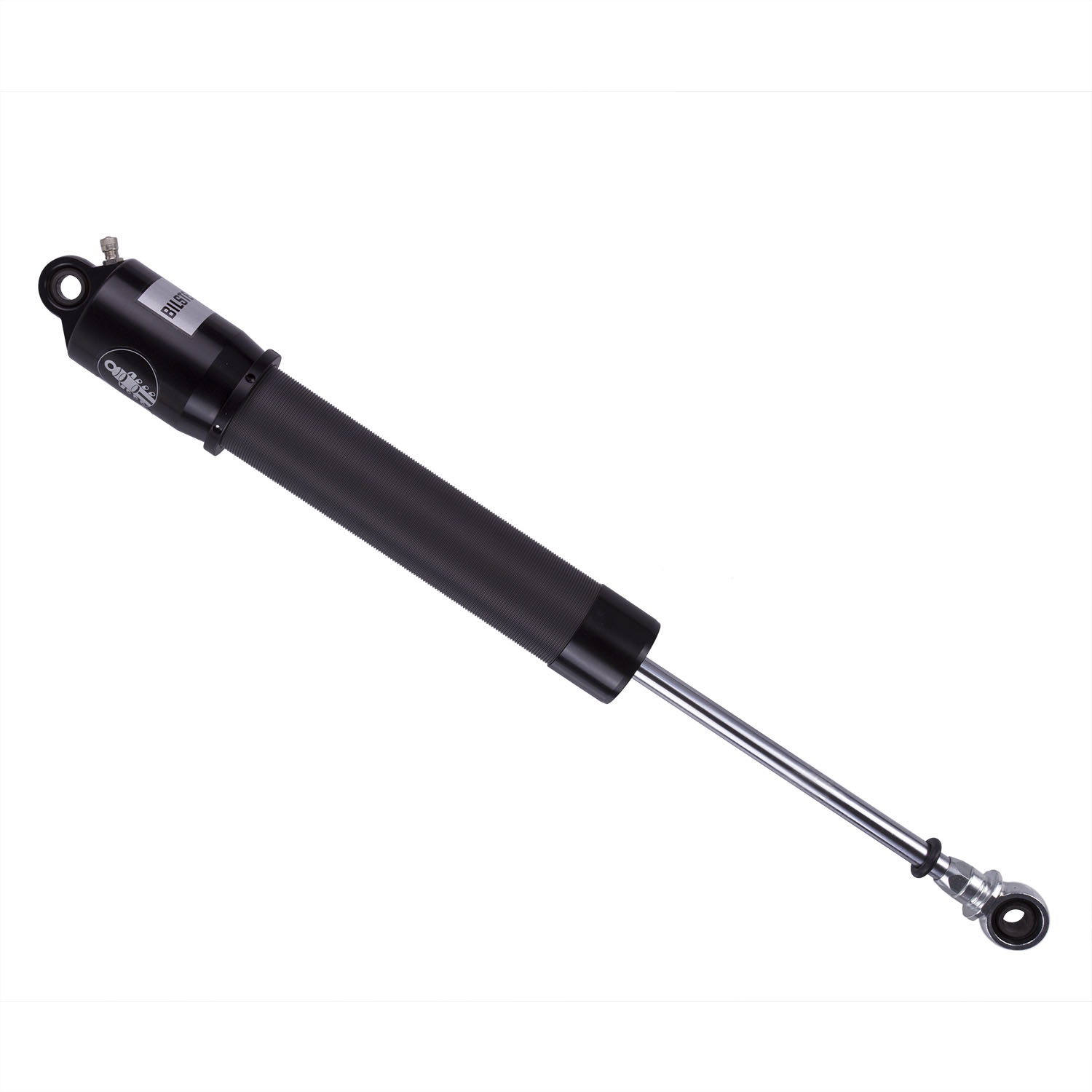

Bilstein Suspension Shock Absorber - 33-255279

XVA Series - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-255279
Old price: $375.00
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance.

Products specifications

Attribute name Attribute value
Series XVA Series
Lower Mount Type 1/2in Heim
Body Material Aluminum
Body Design Threaded Body Large Bulb Screw Top (Coilover)
Collapsed Length (IN) 15.39
Adjustable Damping Non-Adjustable
Extended Length (mm) 602.5
Finish Clear Anodized
Spring Seat Included No
Valving Identifier Digressive Dry Kit (no valving)
Extended Length (IN) 23.72
Upper Mount Type 1/2in Heim
Internal Design Monotube
Boot Included No
Piston Type Digressive
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware B4-KT1-Z245A01
Piston Diameter 46mm
Collapsed Length (mm) 391.0
Shaft Diameter 14mm
Stroke/Travel Length (mm) 211.6
Stroke/Travel Length (IN) 8.33
Country of Origin US
Condition New
