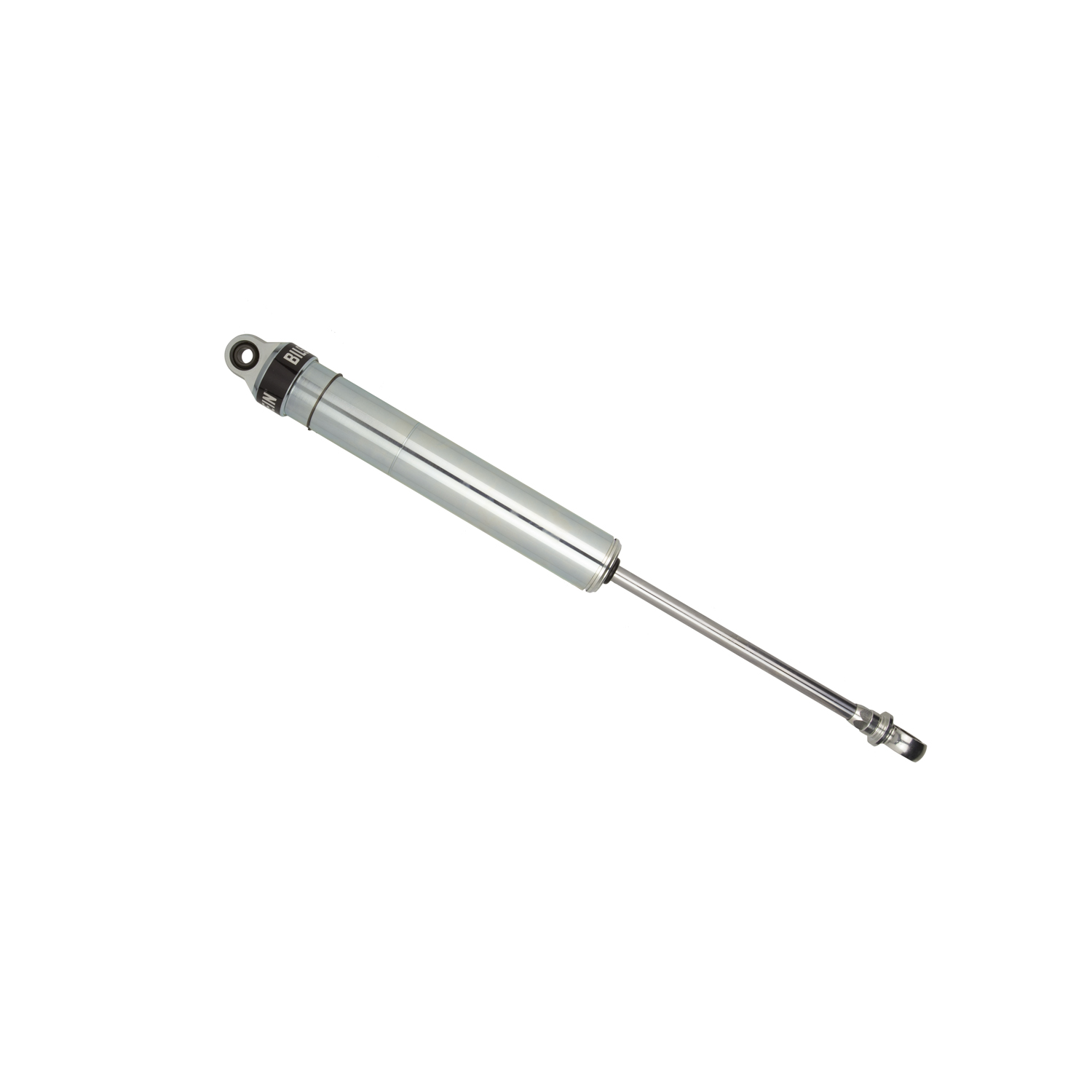

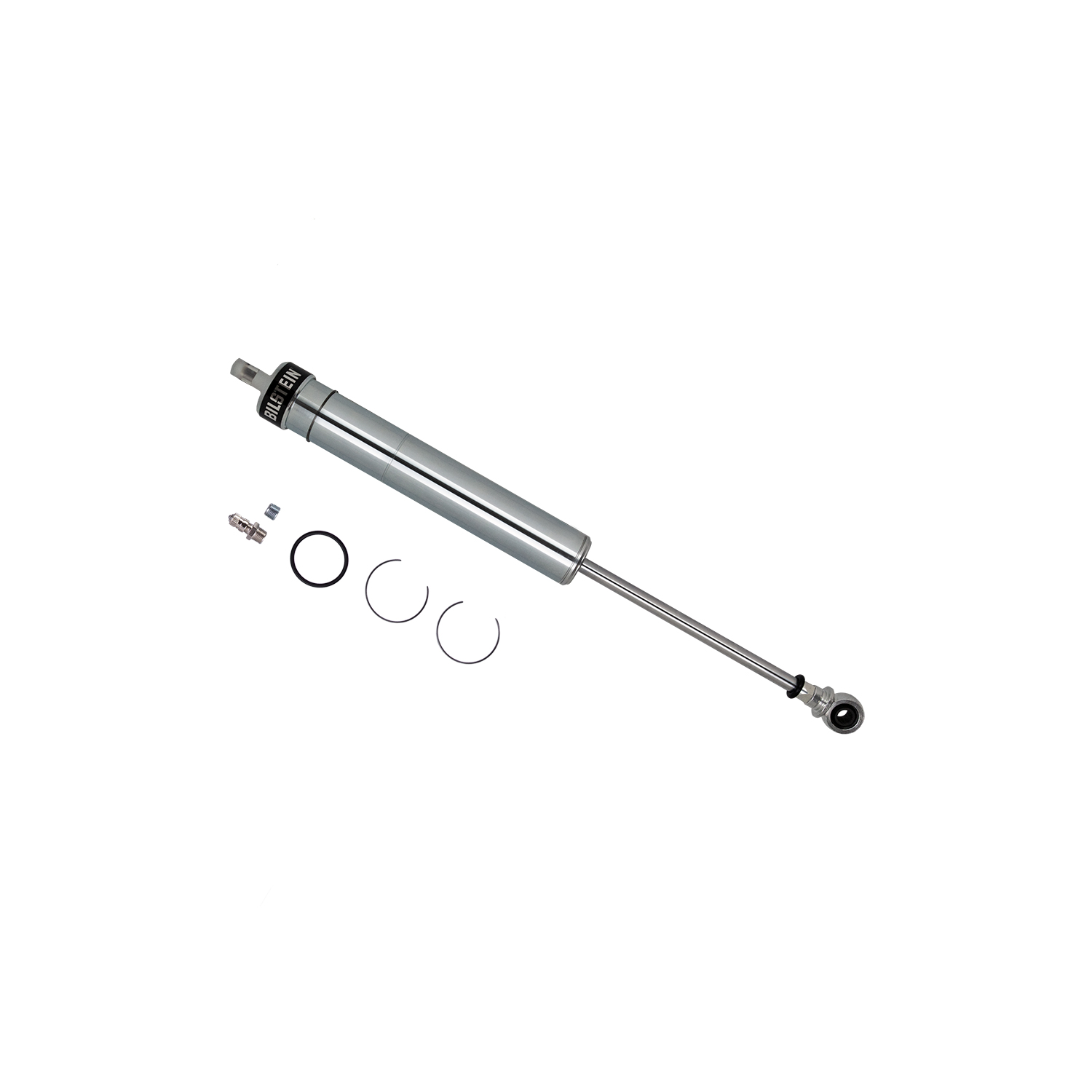

Bilstein Suspension Shock Absorber - 33-260082

SNS2 Series - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-260082
Old price: $199.00
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein SNS2 Series shock absorbers feature a steel, smooth body design utilizing the 46mm monotube technology (piston and piston band sold separately) designed for motorsports applications. These shock absorbers feature a steel body cap and a Schrader valve or fill plug. They are upgradeable to adjustable shafts and can be converted to a coilover (kit sold separately). SNS2 Series shock absorbers are ideal for racers whose sanctioning rules require an all steel construction with rebuild capability.

Products specifications

Attribute name Attribute value
Finish Zinc Plated
Collapsed Length (IN) 15.12
Body Design Smooth Body Screw Top (Non-coilover)
Upper Mount Type 1/2in Heim
Internal Design Monotube
Extended Length (mm) 607.0
Extended Length (IN) 23.90
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware B4-BOA-0000117
Collapsed Length (mm) 384.0
Piston Diameter 46mm
Shaft Diameter 14mm
Stroke/Travel Length (mm) 223.0
Stroke/Travel Length (IN) 8.78
Lower Mount Type 1/2in Heim
Valving Identifier Linear Dry Kit (no valving)
Series SNS2 Series
Body Material Steel
Boot Included No
Adjustable Damping Non-Adjustable
Piston Type Linear
Country of Origin US
Condition New
