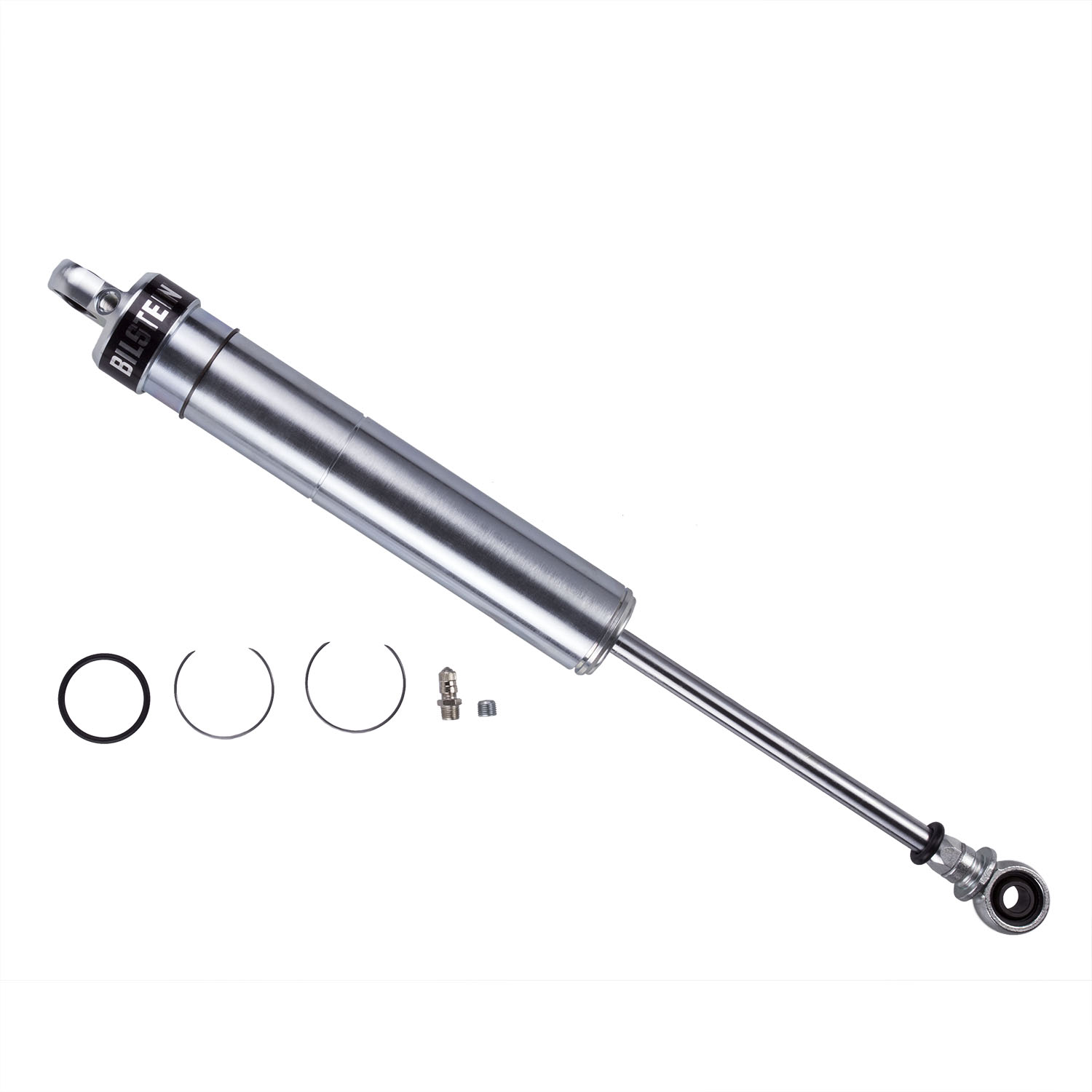

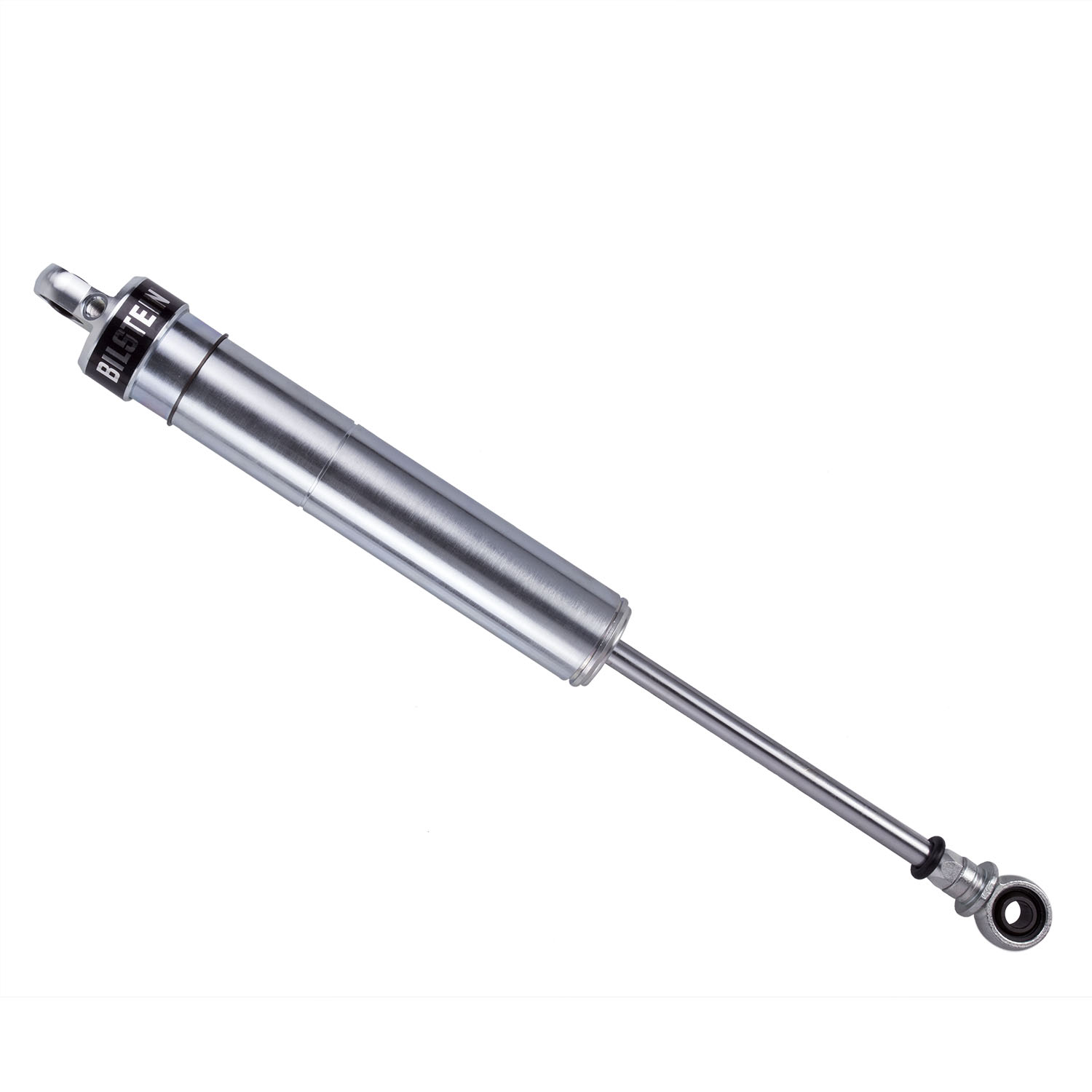

Bilstein Suspension Shock Absorber - 33-260136

SNS2 Series - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-260136
Old price: $199.00
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein SNS2 Series shock absorbers feature a steel, smooth body design utilizing the 46mm monotube technology (piston and piston band sold separately) designed for motorsports applications. These shock absorbers feature a steel body cap and a Schrader valve or fill plug. They are upgradeable to adjustable shafts and can be converted to a coilover (kit sold separately). SNS2 Series shock absorbers are ideal for racers whose sanctioning rules require an all steel construction with rebuild capability.

Products specifications

Attribute name Attribute value
Lower Mount Type 1/2in Heim
Extended Length (mm) 553.8
Upper Mount Type 1/2in Heim
Collapsed Length (mm) 356.3
Series SNS2 Series
Body Design Smooth Body Screw Top (Non-coilover)
Extended Length (IN) 21.80
Boot Included No
Internal Design Monotube
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware B4-BOA-0000117
Piston Diameter 46mm
Shaft Diameter 14mm
Stroke/Travel Length (mm) 197.4
Stroke/Travel Length (IN) 7.77
Valving Identifier Digressive Dry Kit (no valving)
Body Material Steel
Finish Zinc Plated
Collapsed Length (IN) 14.03
Piston Type Digressive
Adjustable Damping Non-Adjustable
Country of Origin US
Condition New
