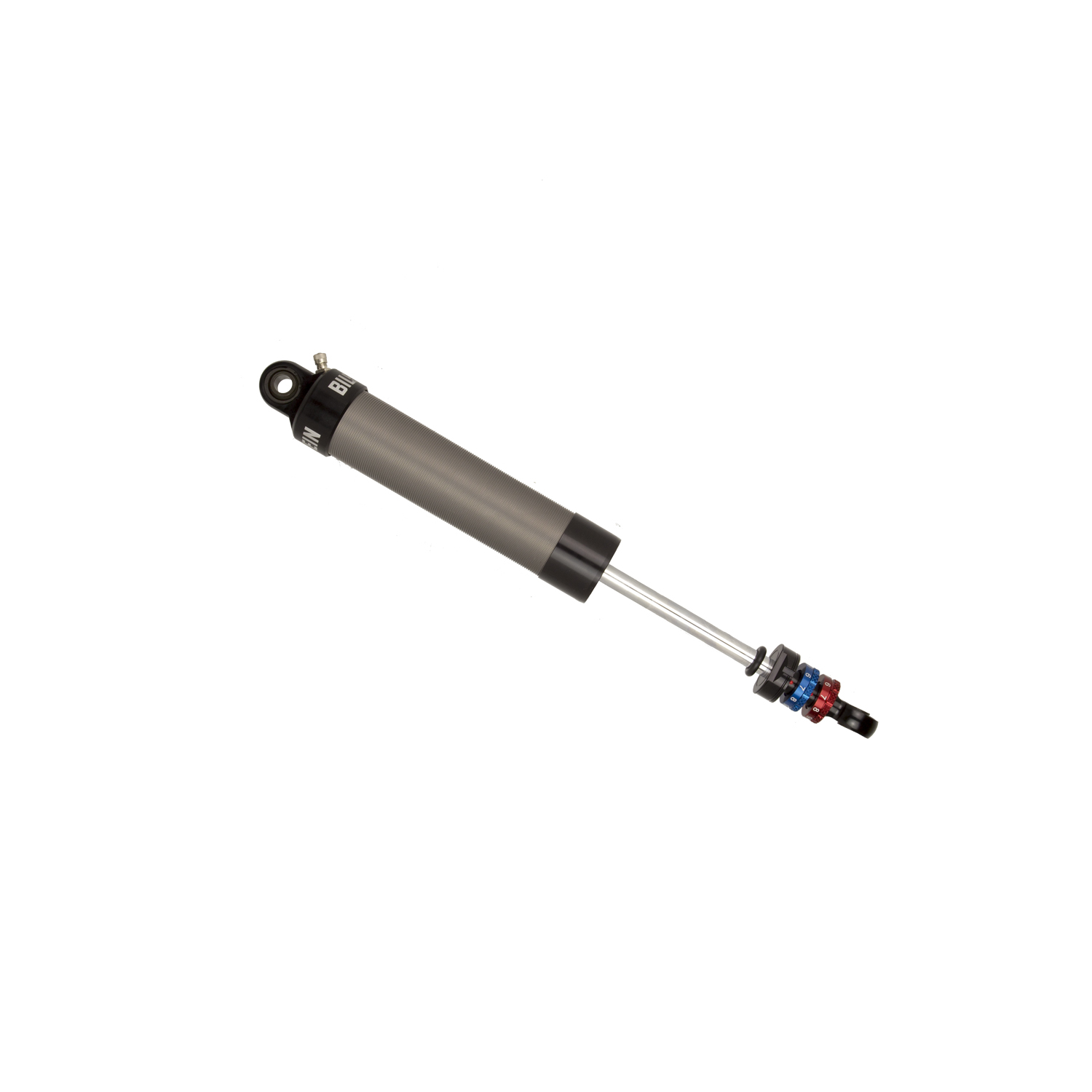

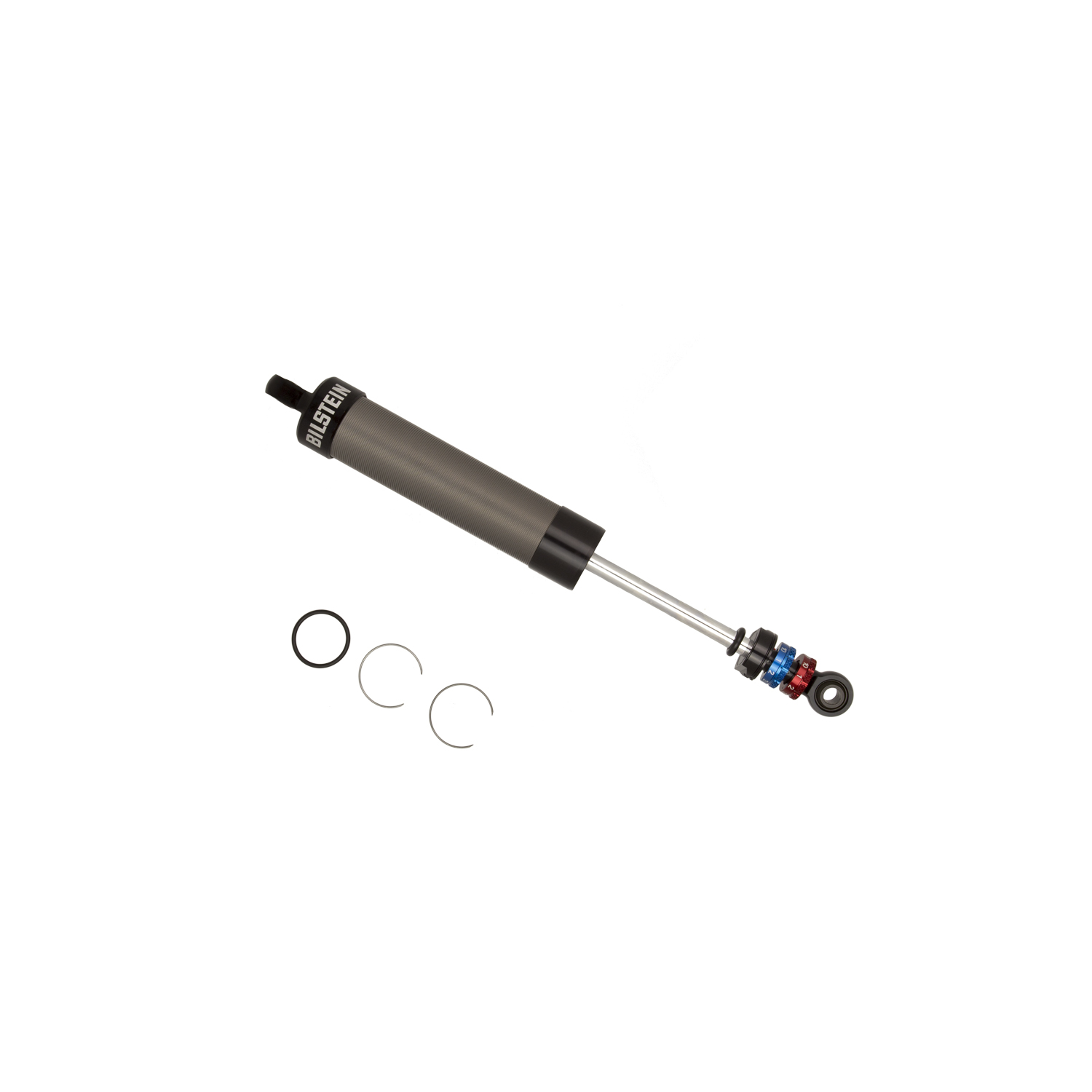

Bilstein Suspension Shock Absorber - 33-262031

AS2 Series - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-262031
Old price: $605.00
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein AS2 Series shock absorbers are designed for motorsports applications and provide the user with the option to rebuild them. The modular aluminum design is offered in non-, single and double adjustable configurations which provide superior on-vehicle tuning capabilities. The threaded body provides precise height adjustments for coilover setups and dissipates heat quickly. The hard anodized coating reduces internal friction and improves strength and durability (pistons, piston bands and heims are sold separately to allow for a variety of combinations). AS2 Series shock absorbers are ideal for racers demanding a lightweight design with upgrade capability.

Products specifications

Attribute name Attribute value
Collapsed Length (IN) 12.87
Finish Clear Anodized
Extended Length (IN) 18.24
Upper Mount Type 1/2in Heim
Valving Identifier Digressive Dry Kit (no valving)
Internal Design Monotube
Series AS2 Series
Piston Type Digressive
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware N/A
Piston Diameter 46mm
Stroke/Travel Length (mm) 136.4
Shaft Diameter 14mm
Collapsed Length (mm) 326.8
Body Design Threaded Body Screw Top (Coilover)
Lower Mount Type 1/2in Heim
Boot Included No
Body Material Aluminum
Extended Length (mm) 463.3
Adjustable Damping Double Adjustable – Compression and Rebound
Stroke/Travel Length (IN) 5.37
Country of Origin US
Condition New
