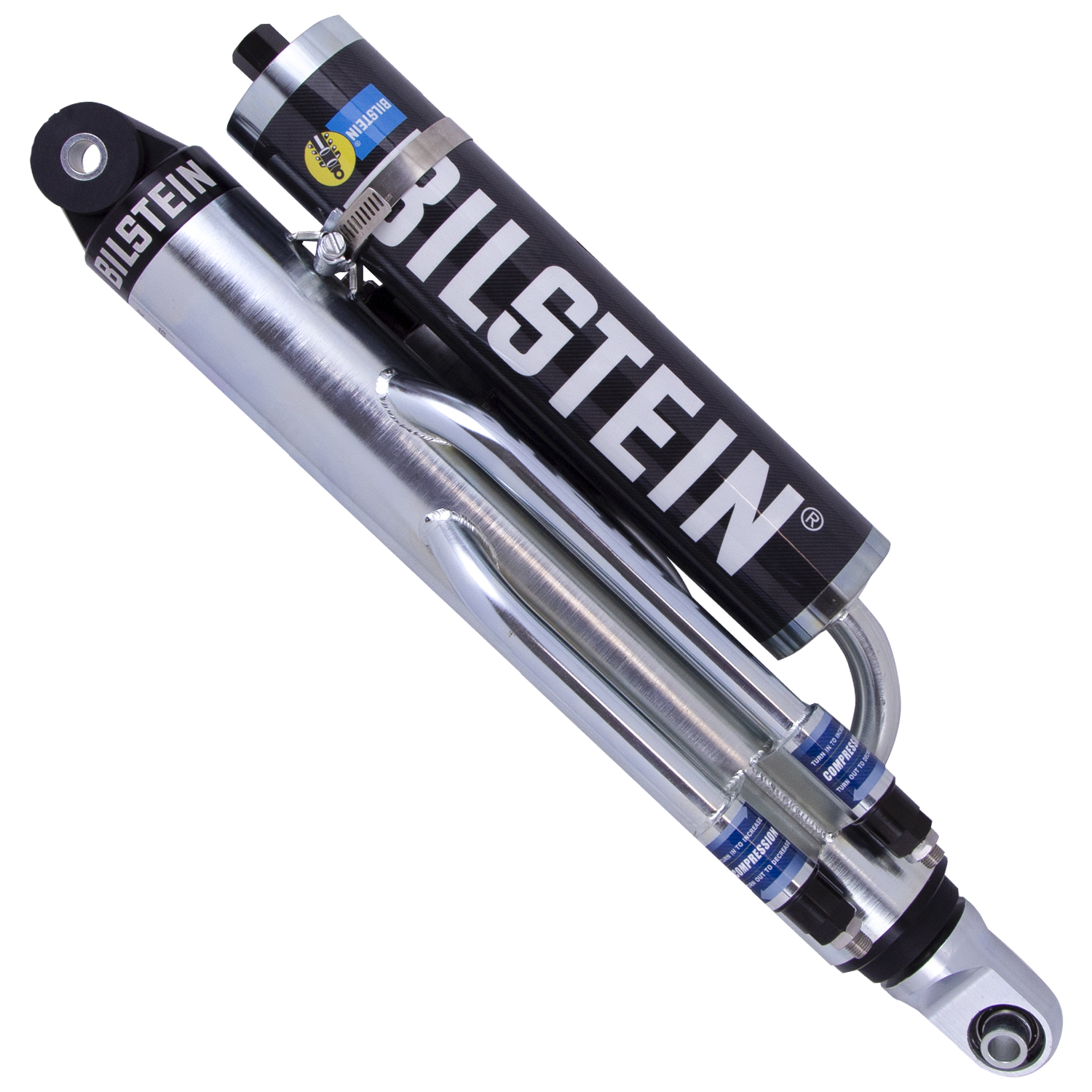

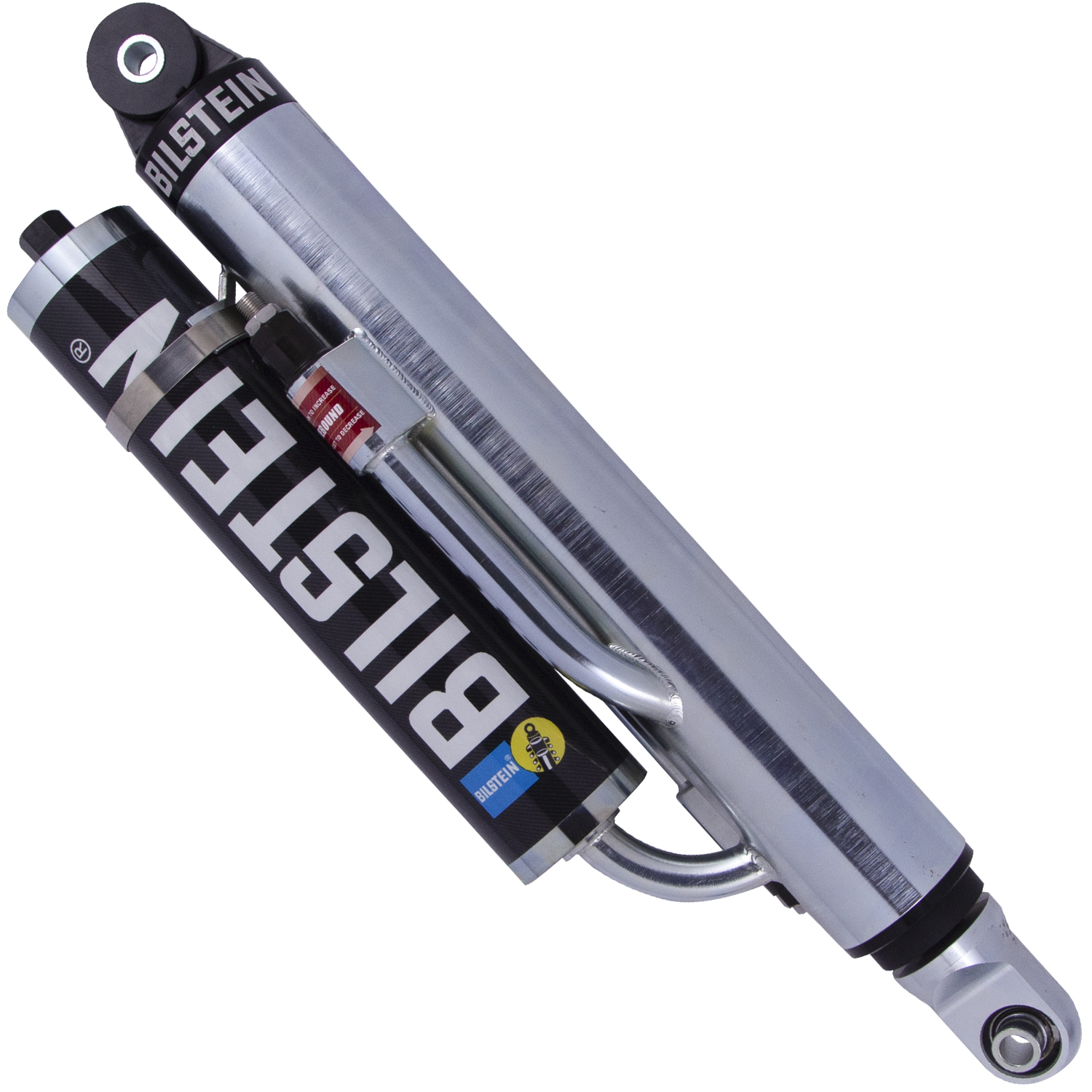

Bilstein Suspension Shock Absorber - 33-269542

M 9200 (Bypass) - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-269542
$1,037.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.

Application: No Applications

Products specifications

Attribute name Attribute value
Finish Zinc Plated
Optional Reservoir Clamp N/A
Mount Type Eye-to-Eye
Position Left
Internal Design Monotube
Body Design 3-Tube Bypass Screw Top
Compression @0.52m/s Custom
Boot Included N/A
Extended Length (mm) 749.3
Series M 9200 (Bypass)
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Collapsed Length (IN) 19.50
Piston Diameter 60mm
Stroke/Travel Length (IN) 10.00
Shaft Diameter (mm) 22.0
Stroke/Travel Length (mm) 254.0
Extended Length (IN) 29.50
Lower Mount Type Eye .5x1.5in
Rebound @0.52m/s Custom
Collapsed Length (mm) 495.3
Upper Mount Type Eye .5x1.5in
Reservoir Yes
Country of Origin US
Condition New
