Bilstein Suspension Shock Absorber - 33-269597

M 9200 (Bypass) - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-269597
$1,037.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

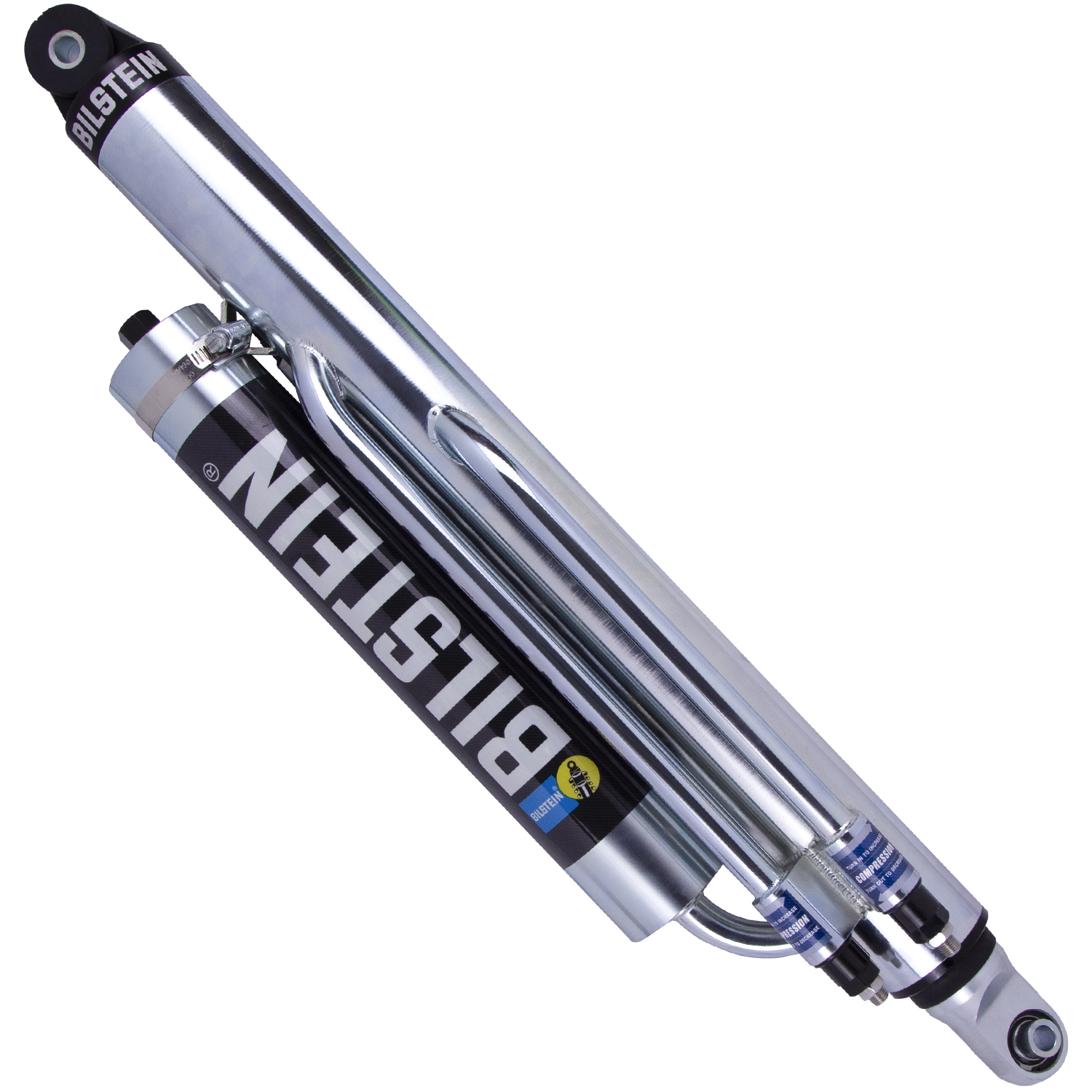

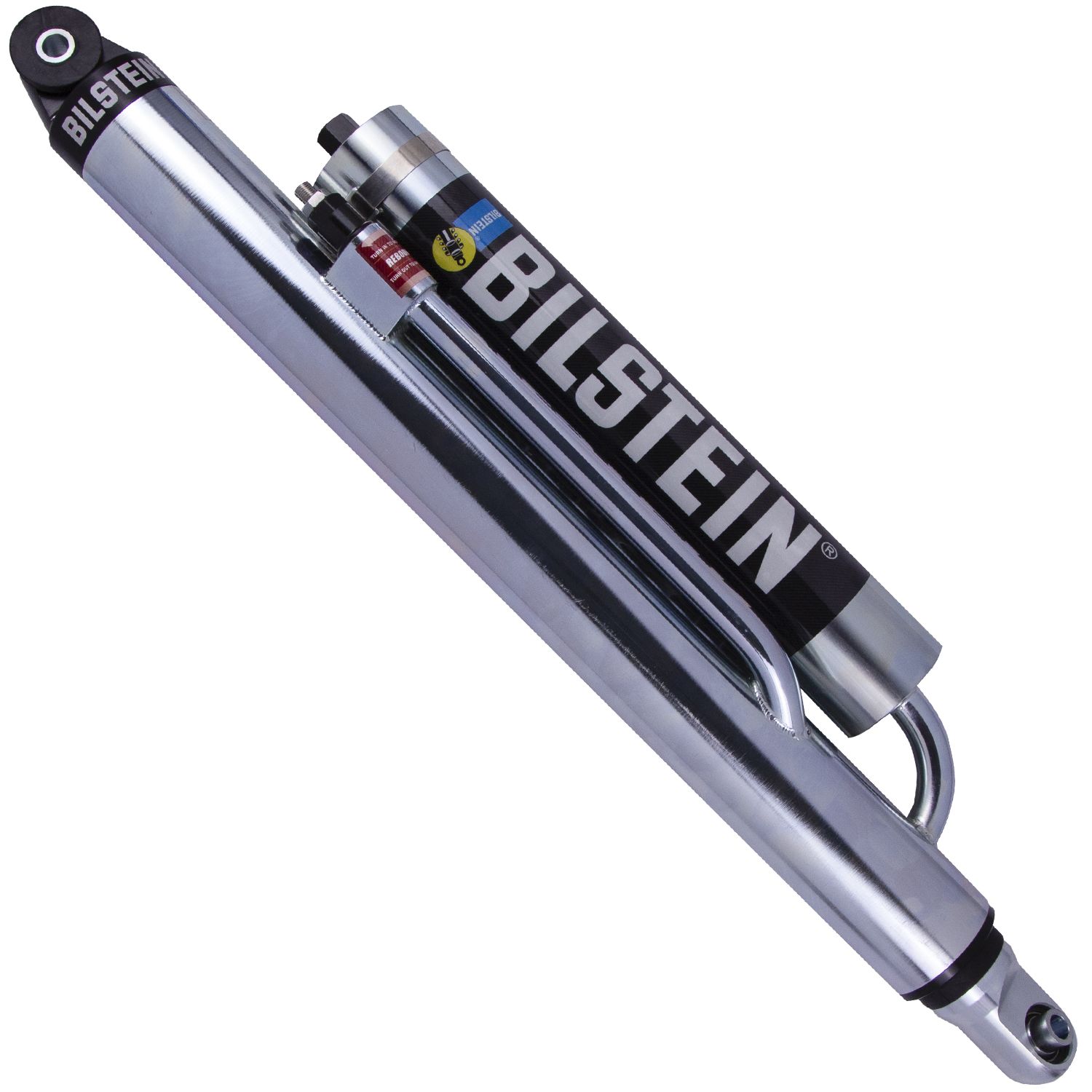

Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.

Application: No Applications

Products specifications

Attribute name Attribute value
Reservoir Yes
Boot Included N/A
Optional Reservoir Clamp N/A
Rebound @0.52m/s Custom
Extended Length (mm) 977.9
Position Right
Extended Length (IN) 38.50
Body Design 3-Tube Bypass Screw Top
Compression @0.52m/s Custom
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Collapsed Length (IN) 24.50
Piston Diameter 60mm
Stroke/Travel Length (IN) 14.00
Shaft Diameter (mm) 22.0
Stroke/Travel Length (mm) 355.6
Upper Mount Type Eye .5x1.5in
Internal Design Monotube
Collapsed Length (mm) 622.3
Lower Mount Type Eye .5x1.5in
Finish Zinc Plated
Mount Type Eye-to-Eye
Series M 9200 (Bypass)
Country of Origin US
Condition New
