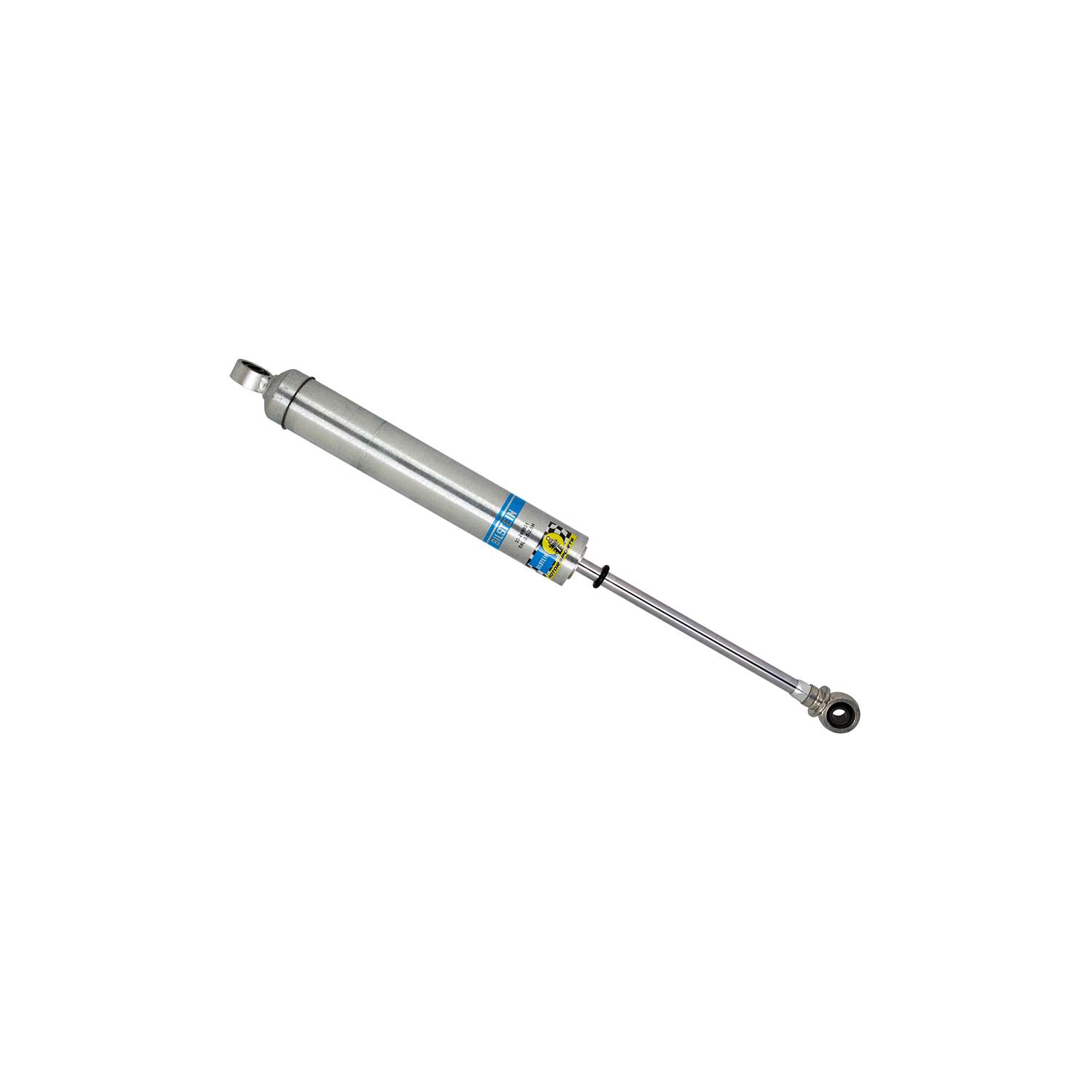

Bilstein Suspension Shock Absorber - 33-269931

SL Series - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-269931
Old price: $170.50
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein SL Series shock absorbers feature a 46mm piston, steel construction, and a smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths, valve settings and can be converted to a coilover design (kit sold separately). Also available as dry kits (partially assembled wtih no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SL Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.

Products specifications

Attribute name Attribute value
Piston Type Digressive
Extended Length (mm) 597.5
Body Material Steel
Adjustable Damping Non-Adjustable
Body Design Smooth Body (Non-Coilover)
Finish Zinc Plated
Boot Included No
Internal Design Monotube
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware B4-BOA-0000117
Collapsed Length (IN) 15.00
Piston Diameter 46mm
Collapsed Length (mm) 381.0
Shaft Diameter 14mm
Stroke/Travel Length (mm) 219.5
Stroke/Travel Length (IN) 8.64
Lower Mount Type 1/2in Heim
Extended Length (IN) 23.52
Upper Mount Type 1/2in Heim
Compression @0.26m/s 730
Series SL Series
Rebound @0.26m/s 775
Valving Identifier 3.5-2.5H
Country of Origin US
Condition New
