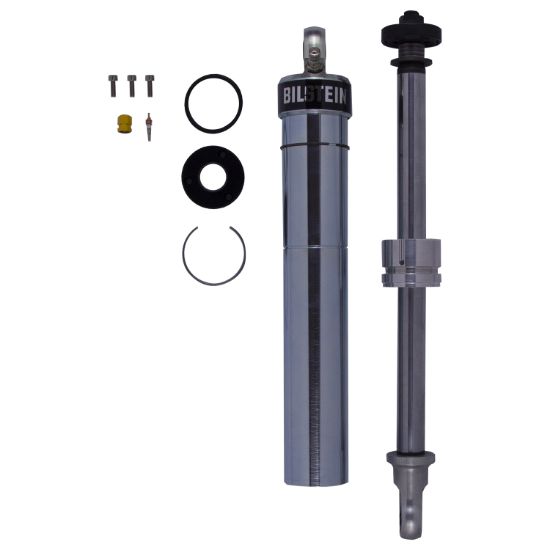

Bilstein Suspension Shock Absorber - 33-286884

EM46 Series - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-286884
$632.50
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein EM46 Series shock absorbers are emulsion dampers that feature an all-steel smooth body construction and 46mm piston for motorsports applications.  The shock absorbers also include a large 22mm shaft, severe duty 3 stage high temperature rod seal and can convert to coilover usage (kit sold separately).  EM46 Series shock absorbers are ideal for racers looking for a rebuildable shock with the ability to create and fine tune spring rate as a replacement or supplement for suspension springs.

Application: No Applications

Products specifications

Attribute name Attribute value
Boot Included No
Body Material Steel
Series EM46 Series
Adjustable Damping Non-Adjustable
Collapsed Length (IN) 15.24
Body Design Smooth Body Screw Top (Non-coilover)
Extended Length (mm) 641.0
Upper Mount Type 1/2in Heim
Piston Type Digressive
Lower Mount Type 1/2in Heim
Internal Design Monotube
Finish Zinc Plated
Extended Length (IN) 25.24
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware B4-BOA-0000117
Piston Diameter 46mm
Collapsed Length (mm) 387.0
Stroke/Travel Length (IN) 10.00
Shaft Diameter 22mm
Stroke/Travel Length (mm) 254.0
Country of Origin US
Condition New
Quantity per Application 2
