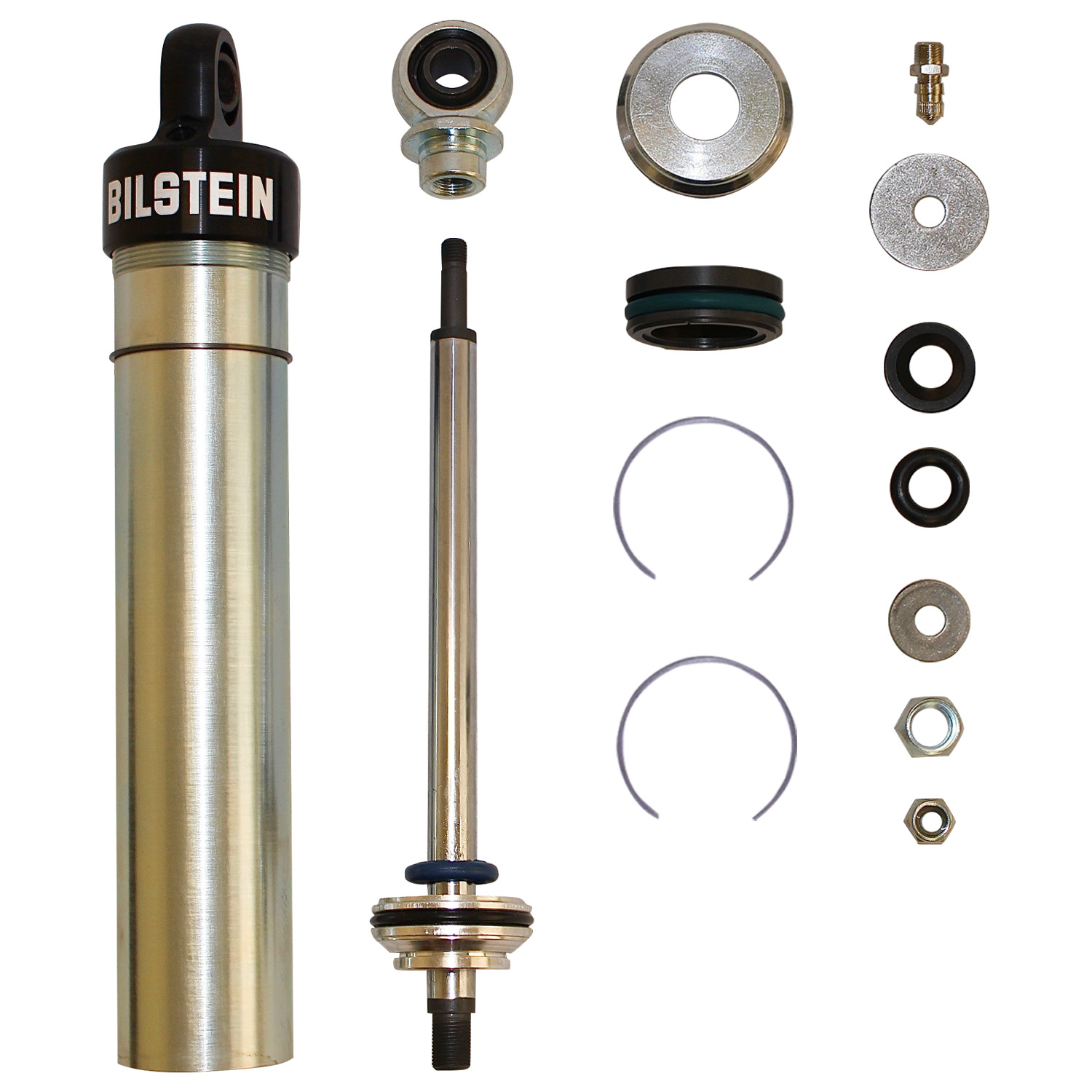

Bilstein Suspension Shock Absorber - 33-316451

SN2 Series - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-316451
$212.23
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein SN2 Series shock absorbers feature a steel, smooth body design utilizing the 46mm monotube technology (piston and piston band sold separately) designed for motorsports applications. These shock absorbers are available in non-, single and double adjustable configurations in optimized lengths and can also be converted to a coilover design (kit sold separately). SN2 Series shock absorbers are ideal for racers whose sanctioning rules require steel body shock absorbers but allow for a user rebuildable design and aluminum end caps.

Application: No Applications

Products specifications

Attribute name Attribute value
Upper Mount Type 1/2in Heim
Piston Type Sold Separately
Extended Length (mm) 553.8
Finish Zinc Plated
Internal Design Monotube
Body Material Steel
Series SN2 Series
Boot Included No
Extended Length (IN) 21.80
Collapsed Length (IN) 14.03
Body Design Smooth Body Screw Top (Non-coilover)
Collapsed Length (mm) 356.3
Lower Mount Type 1/2in Heim
Adjustable Damping Non-Adjustable
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Piston Diameter 46mm
Shaft Diameter 14mm
Stroke/Travel Length (mm) 197.4
Stroke/Travel Length (IN) 7.77
Country of Origin US
Condition New
