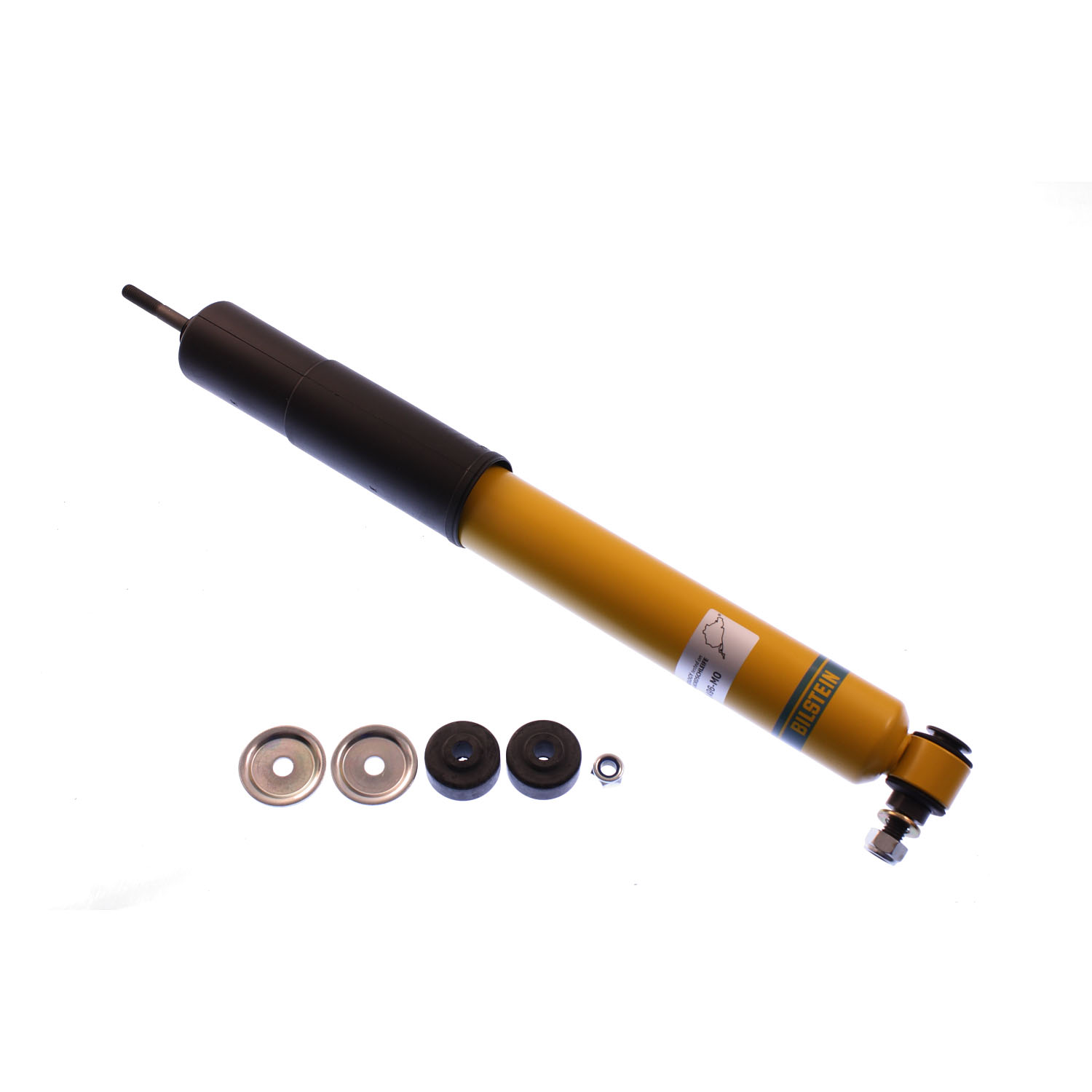

Bilstein Suspension Shock Absorber - AK1196

Name: Bilstein Suspension Shock Absorber - AK1196
SKU: AK1196
Price: 0.01 USD
Availability: OutOfStock

AK Series - Suspension Shock Absorber

Manufacturer: Bilstein

Manufacturer part number: AK1196

Old price: $113.00

Price: $0.01

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.

Products specifications

Attribute name	Attribute value
Boot Included	Blue Straight
Body Design	Stock Mount Smooth Body
Finish	Yellow Paint
Lower Mount Type	Cantilever
Series	AK Series
Body Material	Steel
Internal Design	Monotube
Extended Length (IN)	19.80
Piston Type	Digressive
Valving Identifier	310/130
Collapsed Length (IN)	12.36
Rebound @0.26m/s	1380
Adjustable Damping	Non-Adjustable
Compression @0.26m/s	580
Extended Length (mm)	503.0
Upper Mount Type	Stem
Spring Seat Included	No
Segment	Motorsports
PartType	Shocks / Struts
Prop 65 Y/N	Y
Prop 65 - Short Label	WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware	N/A
Piston Diameter	46mm
Collapsed Length (mm)	314.0
Shaft Diameter	11mm
Stroke/Travel Length (mm)	189.0
Stroke/Travel Length (IN)	7.44
Country of Origin	US
Condition	New
Quantity per Application	2
