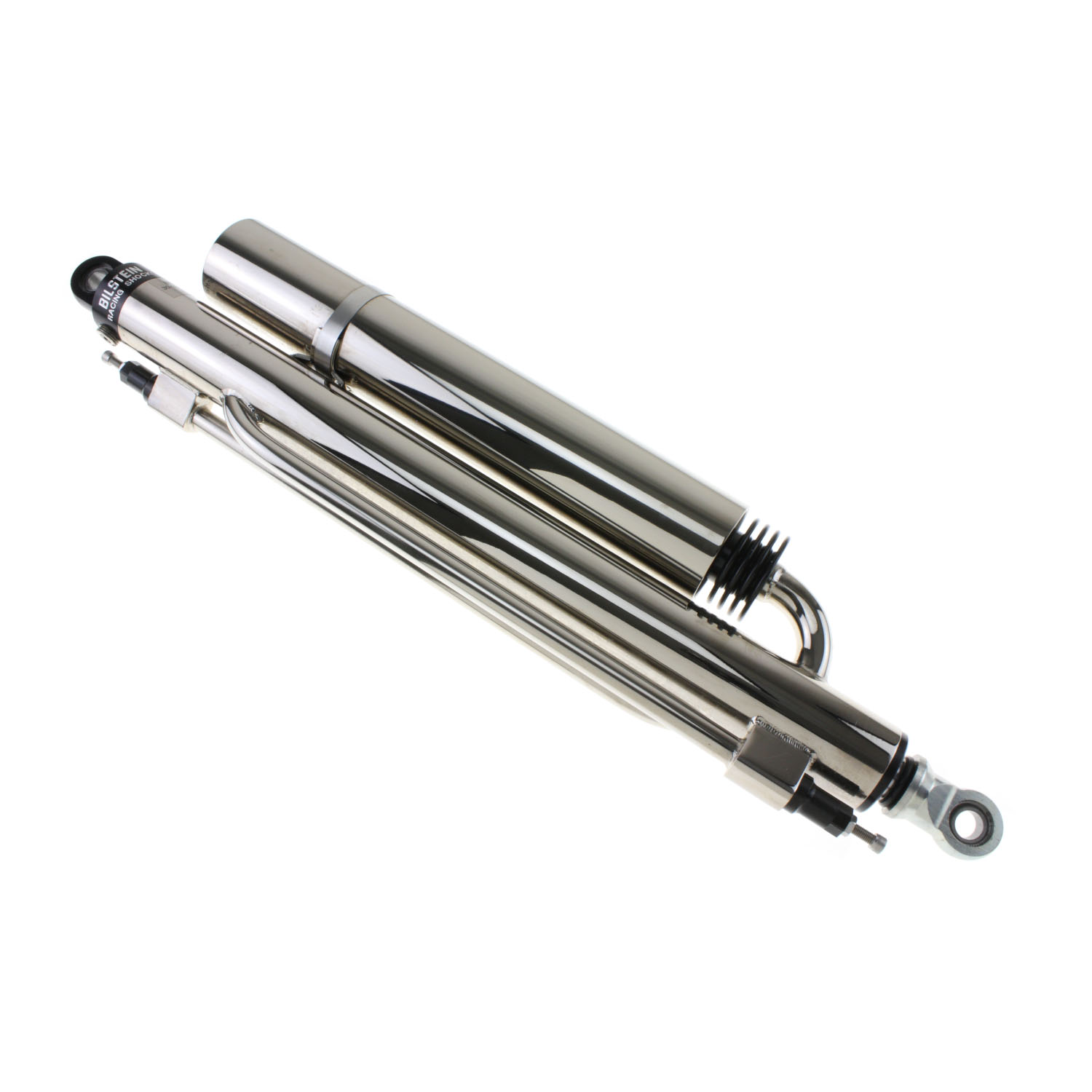

Bilstein Suspension Shock Absorber - B46-9110BYST

Name: Bilstein Suspension Shock Absorber - B46-9110BYST
SKU: B46-9110BYST
Price: 0.01 USD
Availability: OutOfStock

M 9100 (Bypass) - Suspension Shock Absorber

Manufacturer: Bilstein

Manufacturer part number: B46-9110BYST

Old price: $604.00

Price: $0.01

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Bilstein M 9100 (Bypass) off-road racing shock absorbers are filled with the technology perfected over 3 decades of off-road dominance. Bilstein's monotube gas pressure design maximizes heat dissipation for increased shock life, and decreases oil foaming to prevent performance loss while under extreme working conditions. Available for lifted truck, custom truck, rock crawling and off-road racing applications.

Products specifications

Attribute name	Attribute value
Collapsed Length (IN)	19.71
Extended Length (mm)	749.3
Upper Mount Type	1/2in Heim
Body Design	2-Tube Bypass Screw Top
Series	M 9100 (Bypass)
Compression @0.52m/s	Custom
Rebound @0.52m/s	Custom
Mount Type	Eye-to-Eye
Finish	Nickel Plated
Collapsed Length (mm)	500.6
Reservoir	Yes
Lower Mount Type	1/2in Heim
Extended Length (IN)	29.50
Optional Reservoir Clamp	N/A
Internal Design	Monotube
Spring Seat Included	No
Segment	Motorsports
PartType	Shocks / Struts
Prop 65 Y/N	Y
Prop 65 - Short Label	WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Piston Diameter	46mm
Shaft Diameter (mm)	22.0
Stroke/Travel Length (mm)	248.7
Stroke/Travel Length (IN)	9.79
Country of Origin	US
Condition	New
Quantity per Application	2
