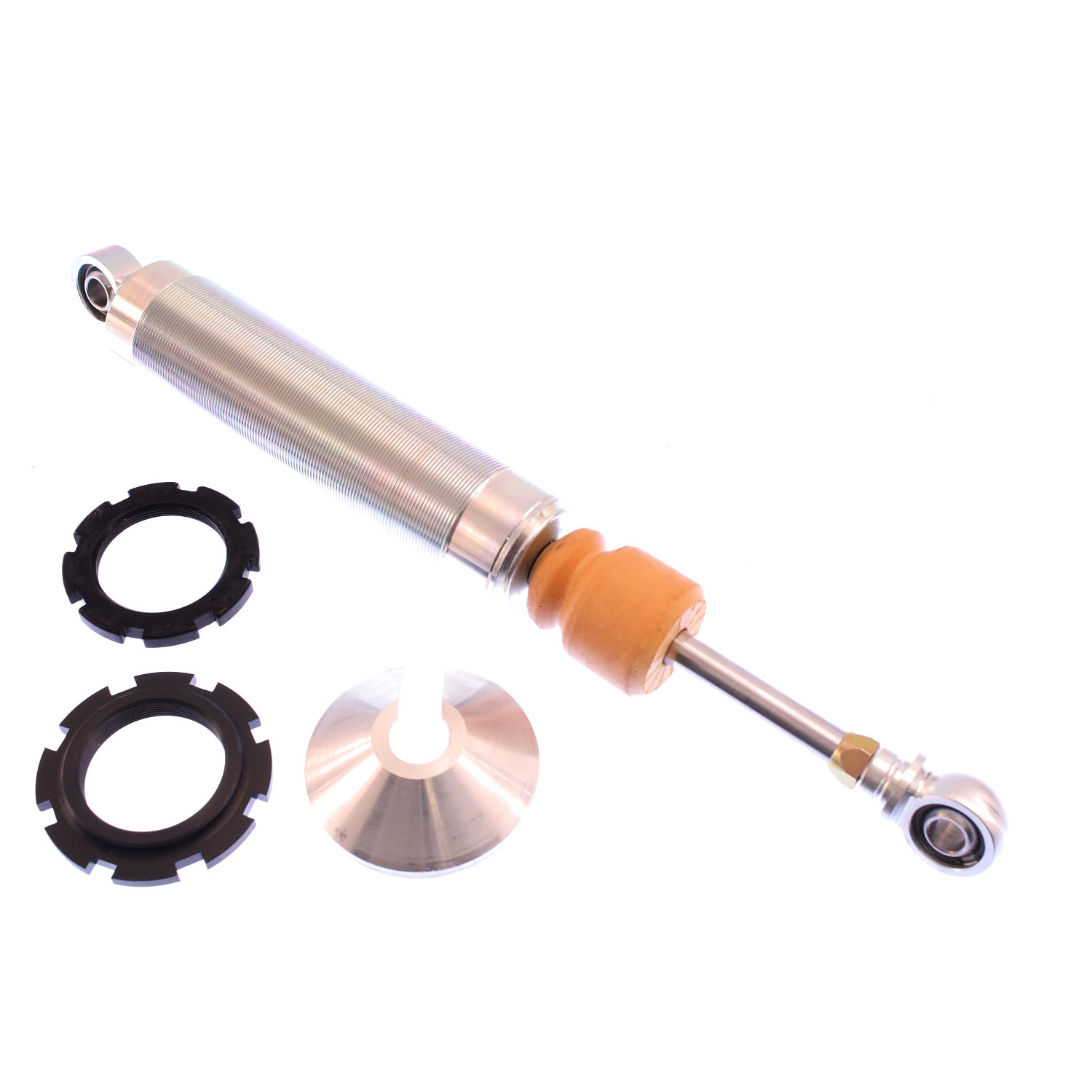

Bilstein Suspension Shock Absorber - F4-B46-0204-H0

M 7100 Classic (Coilover) - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: F4-B46-0204-H0
Old price: $235.00
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein M 7100 Classic (Coilover) is designed for custom off-road motorsports and recreational applications. These coilovers are factory rebuildable and feature a fully threaded, non-reservoir shock body. Each coilover is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 Classic (Coilover) is offered in a 10 inch travel stroke and come with 2.5 inch ID single rate spring hardware. For custom, light weight applications, M7100 Classic (Coilover) will deliver reliable performance.

Products specifications

Attribute name Attribute value
Extended Length (IN) 16.25
Rebound @0.52m/s Custom
Upper Mount Type 1/2in Heim
Mount Type Eye-to-Eye
Body Design Threaded Body (Coilover)
Reservoir No
Collapsed Length (mm) 285.8
Extended Length (mm) 412.8
Optional Reservoir Clamp N/A
Collapsed Length (IN) 11.25
Internal Design Monotube
Finish Zinc Plated
Series M 7100 Classic (Coilover)
Compression @0.52m/s Custom
Lower Mount Type 1/2in Heim
Spring Seat Included Yes
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

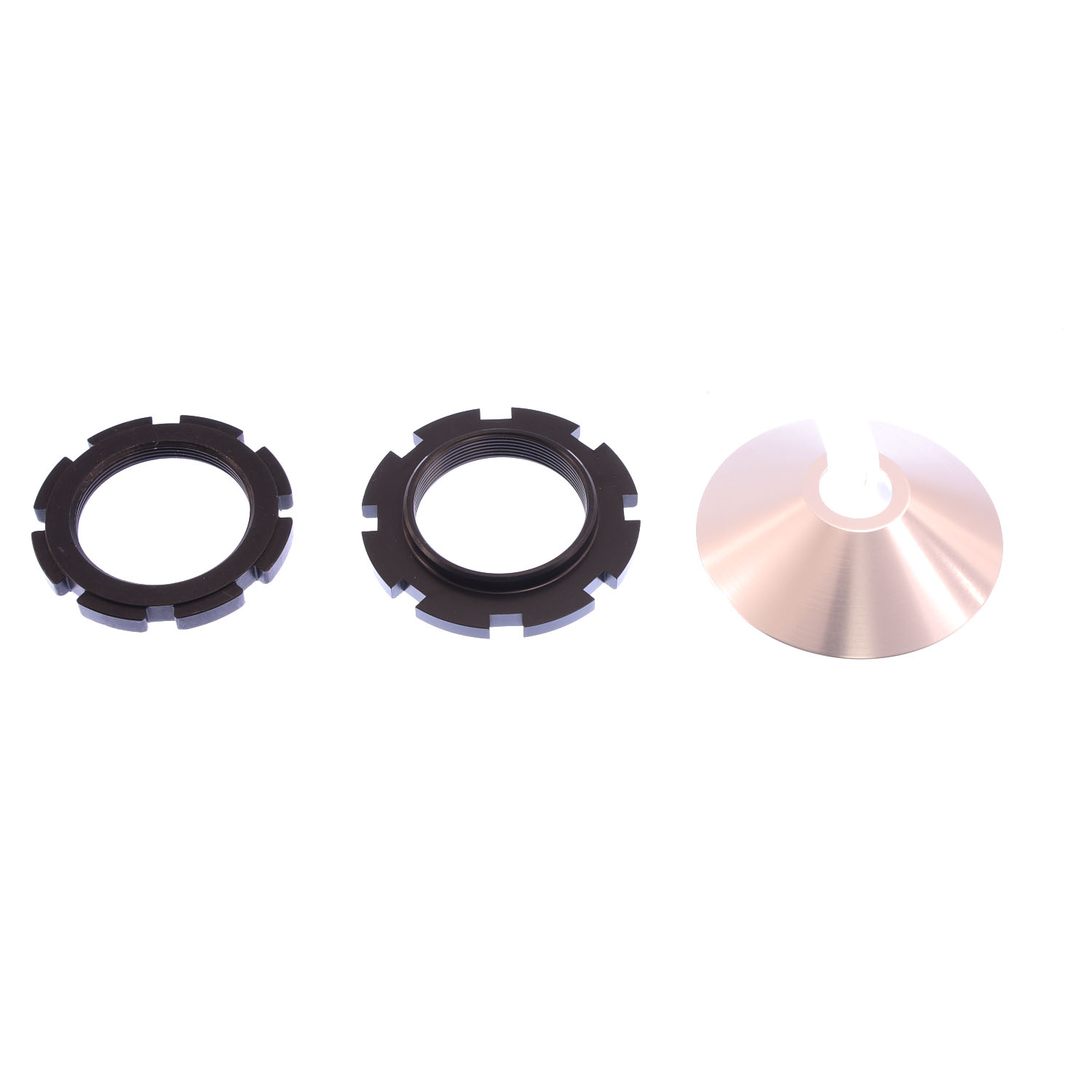

Spring Hardware Single Rate (2.5in)
Piston Diameter 46mm
Stroke/Travel Length (mm) 127.0
Shaft Diameter (mm) 14.0
Stroke/Travel Length (IN) 5.00
Country of Origin US
Condition New
Quantity per Application 2
