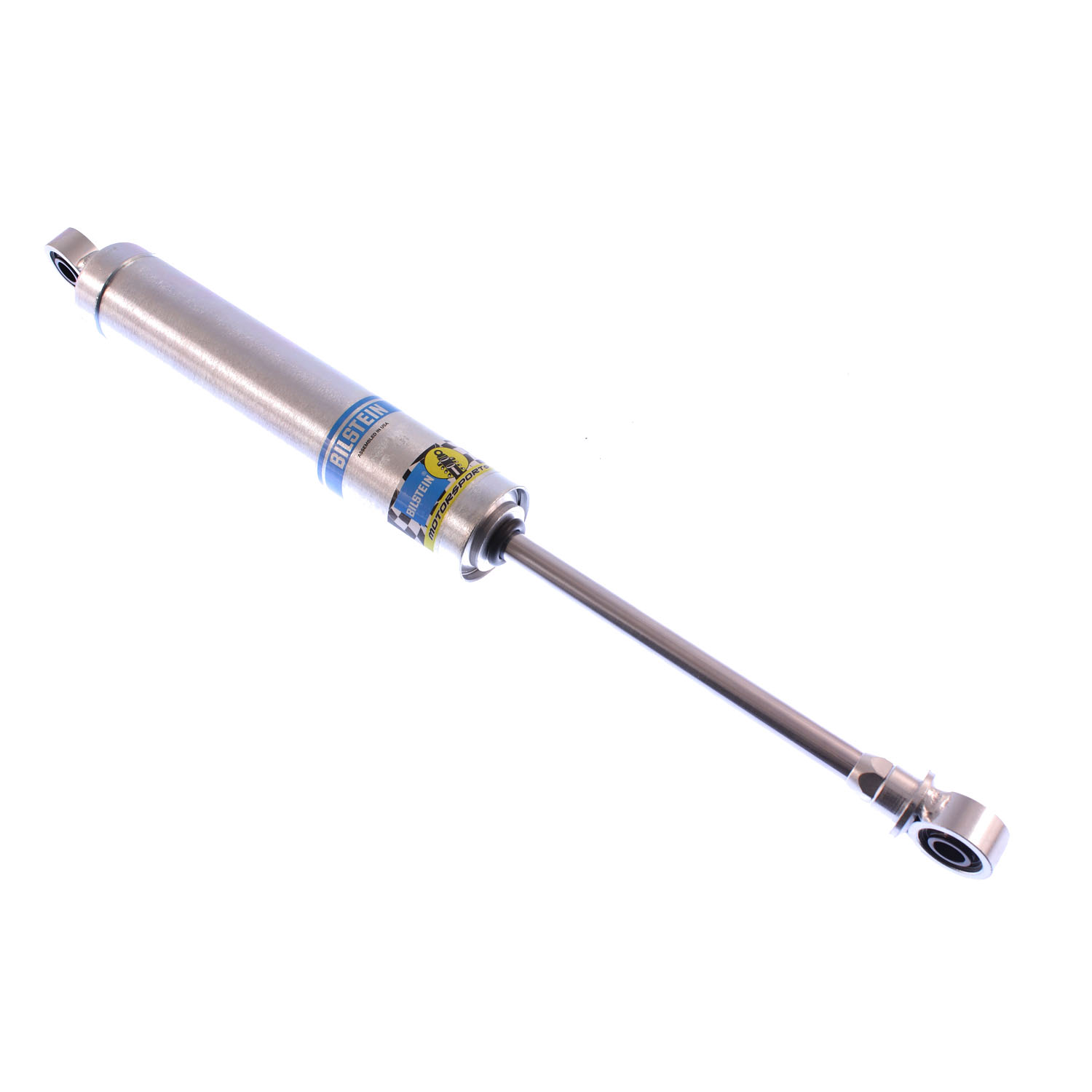

Bilstein Suspension Shock Absorber - F4-B46-0207-ZL

SZ Series - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: F4-B46-0207-ZL
Old price: $170.50
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein SZ Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). They are also available as dry kits (partially assembled wtih no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.

Products specifications

Attribute name Attribute value
Compression @0.26m/s 335
Adjustable Damping Non-Adjustable
Body Design Smooth Body (Non-Coilover)
Extended Length (IN) 23.52
Boot Included No
Finish Zinc Plated
Upper Mount Type 1/2in Heim
Lower Mount Type 1/2in Heim
Extended Length (mm) 597.5
Collapsed Length (IN) 14.88
Series SZ Series
Internal Design Monotube
Rebound @0.26m/s 430
Valving Identifier 2020
Piston Type Digressive
Body Material Steel
Spring Seat Included No
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware B4-BOA-0000117
Piston Diameter 46mm
Collapsed Length (mm) 378.0
Shaft Diameter 14mm
Stroke/Travel Length (mm) 219.5
Stroke/Travel Length (IN) 8.64
PartType Shocks / Struts
Segment Motorsports
Country of Origin US
Condition New
