Bilstein Suspension Shock Absorber - F4-B46-0349-H2

M 7100 Classic - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: F4-B46-0349-H2
Old price: $130.20
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

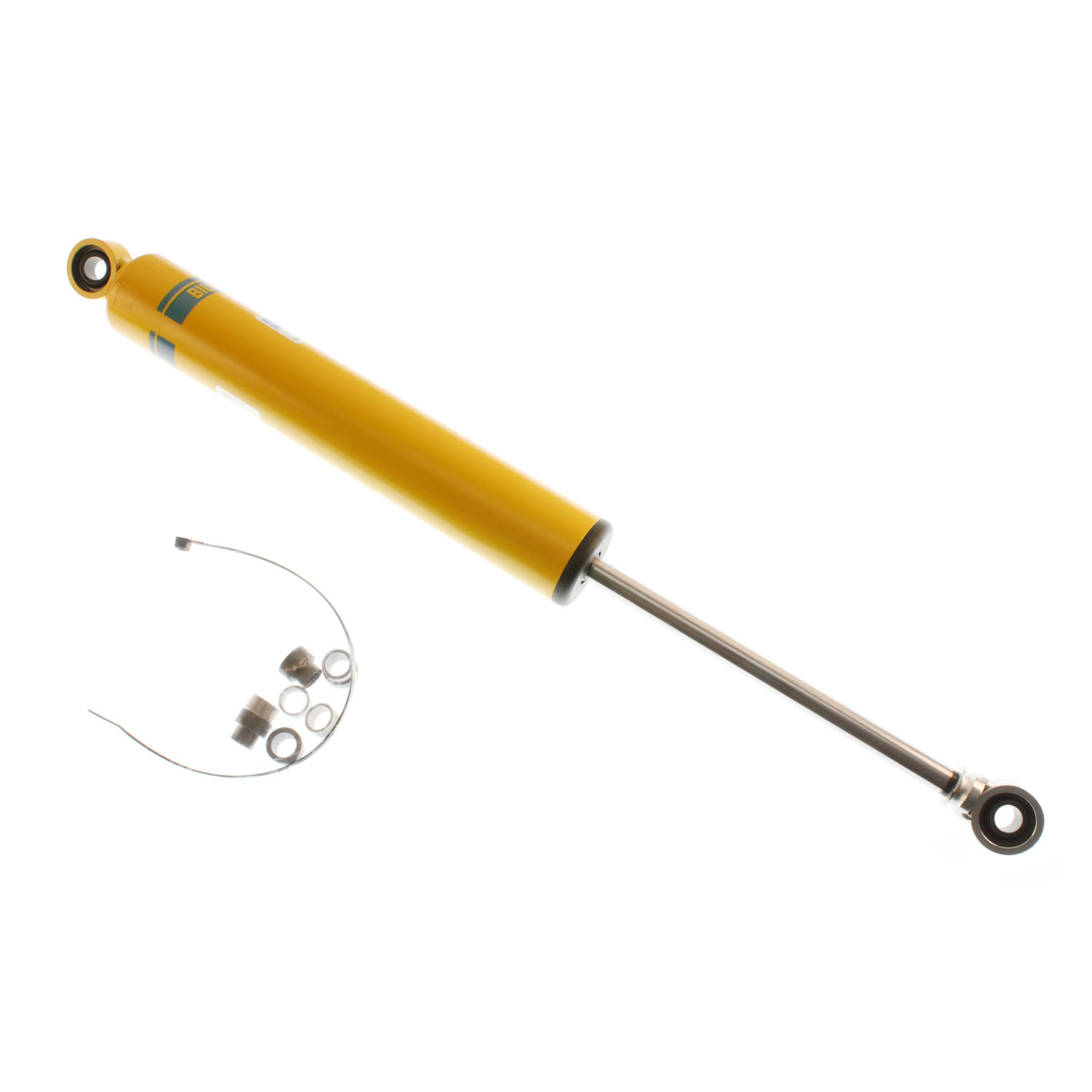

Bilstein M 7100 Classic shock absorbers are the most successful shock absorbers in off-road racing history. Since their inception in the early 70's, these 46mm monotube shock absorbers are equipped on more winning off-road cars and trucks than any other shock absorber. Today, the M 7100 Classic shock absorbers are perfect for meeting the demands of vintage off road race cars and VW based off-road recreational vehicles. Withstanding the test of time, the M 7100 Classic shock absorber will deliver period correct performance.

Products specifications

Attribute name Attribute value
Collapsed Length (mm) 357.9
Rebound @0.52m/s 2710
Extended Length (IN) 22.05
Finish Yellow Paint
Reservoir No
Collapsed Length (IN) 14.09
Extended Length (mm) 560.1
Internal Design Monotube
Optional Reservoir Clamp N/A
Mount Type Eye-to-Eye
Series M 7100 Classic
Body Design Smooth Body (Non-Coilover)
Lower Mount Type 1/2in Heim
Compression @0.52m/s 980
Upper Mount Type 1/2in Heim
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Piston Diameter 46mm
Shaft Diameter (mm) 14.0
Stroke/Travel Length (mm) 202.2
Stroke/Travel Length (IN) 7.96
Country of Origin DE
Condition New
Quantity per Application 2
