Bilstein Suspension Shock Absorber - F4-B46-1072-H1

Name: Bilstein Suspension Shock Absorber - F4-B46-1072-H1
SKU: F4-B46-1072-H1
Price: 0.01 USD
Availability: OutOfStock

M 7100 Classic - Suspension Shock Absorber

Manufacturer: Bilstein

Manufacturer part number: F4-B46-1072-H1

Old price: $151.20

Price: $0.01

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

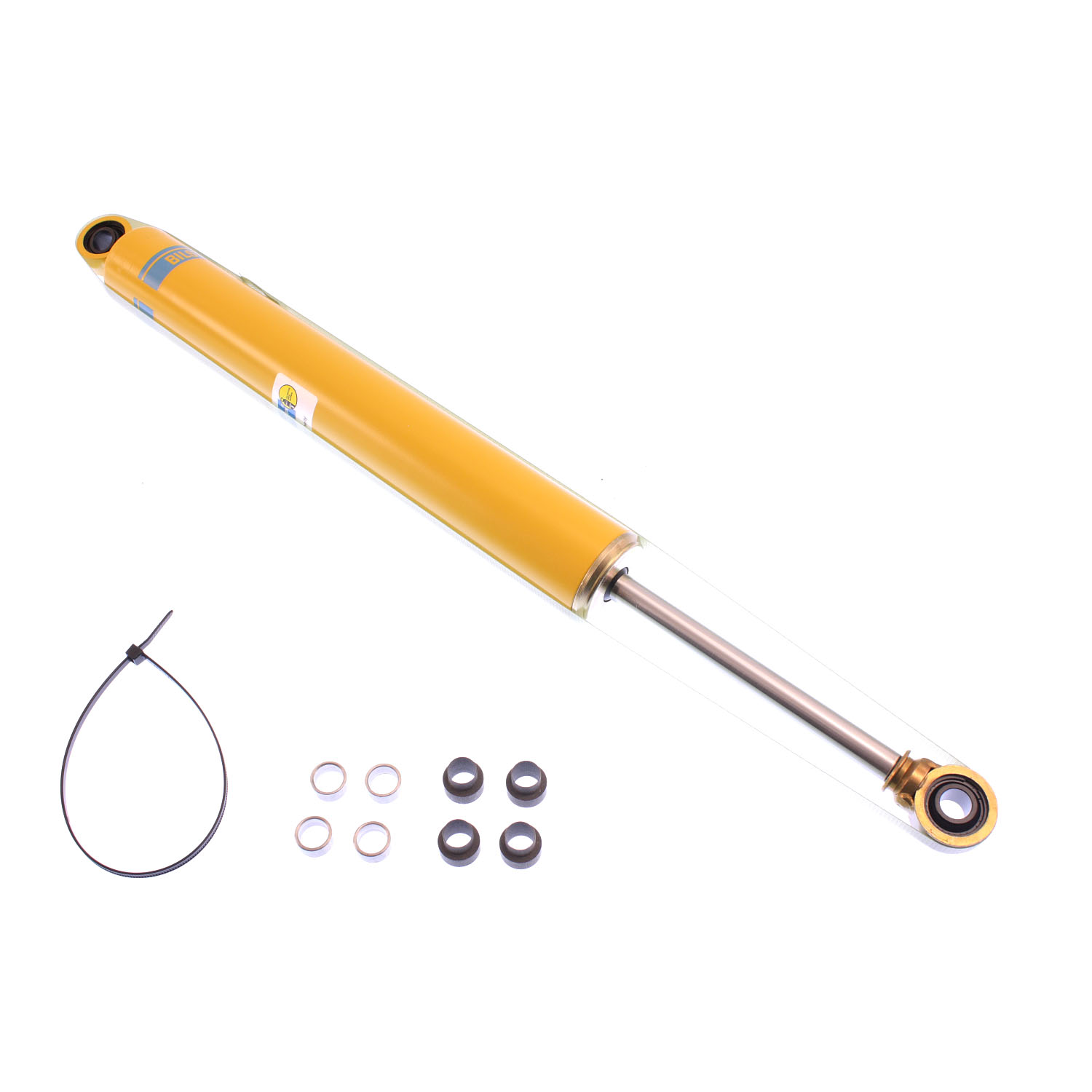

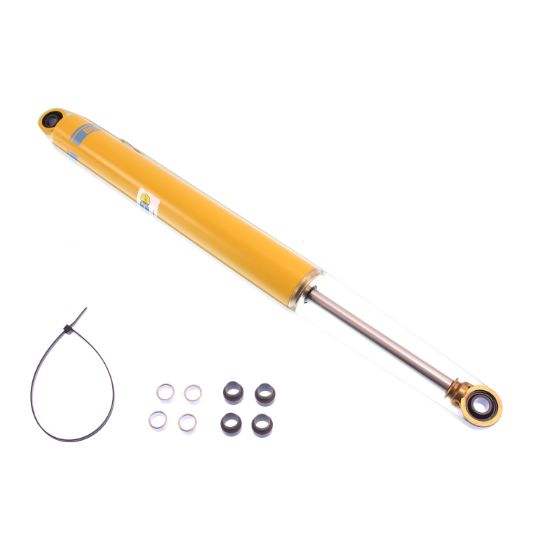

Bilstein M 7100 Classic shock absorbers are the most successful shock absorbers in off-road racing history. Since their inception in the early 70's, these 46mm monotube shock absorbers are equipped on more winning off-road cars and trucks than any other shock absorber. Today, the M 7100 Classic shock absorbers are perfect for meeting the demands of vintage off road race cars and VW based off-road recreational vehicles. Withstanding the test of time, the M 7100 Classic shock absorber will deliver period correct performance.

Products specifications

Attribute name	Attribute value
Mount Type	Eye-to-Eye
Upper Mount Type	1/2in Heim
Body Design	Smooth Body (Non-Coilover)
Finish	Yellow Paint
Rebound @0.52m/s	1710
Lower Mount Type	1/2in Heim
Series	M 7100 Classic
Extended Length (IN)	34.78
Reservoir	No
Extended Length (mm)	883.4
Compression @0.52m/s	590
Collapsed Length (IN)	20.94
Optional Reservoir Clamp	N/A
Internal Design	Monotube
Collapsed Length (mm)	531.9
Spring Seat Included	No
Segment	Motorsports
PartType	Shocks / Struts
Prop 65 Y/N	Y
Prop 65 - Short Label	WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Piston Diameter	46mm
Stroke/Travel Length (IN)	13.84
Shaft Diameter (mm)	14.0
Stroke/Travel Length (mm)	351.5
Country of Origin	DE
Condition	New
Quantity per Application	2
