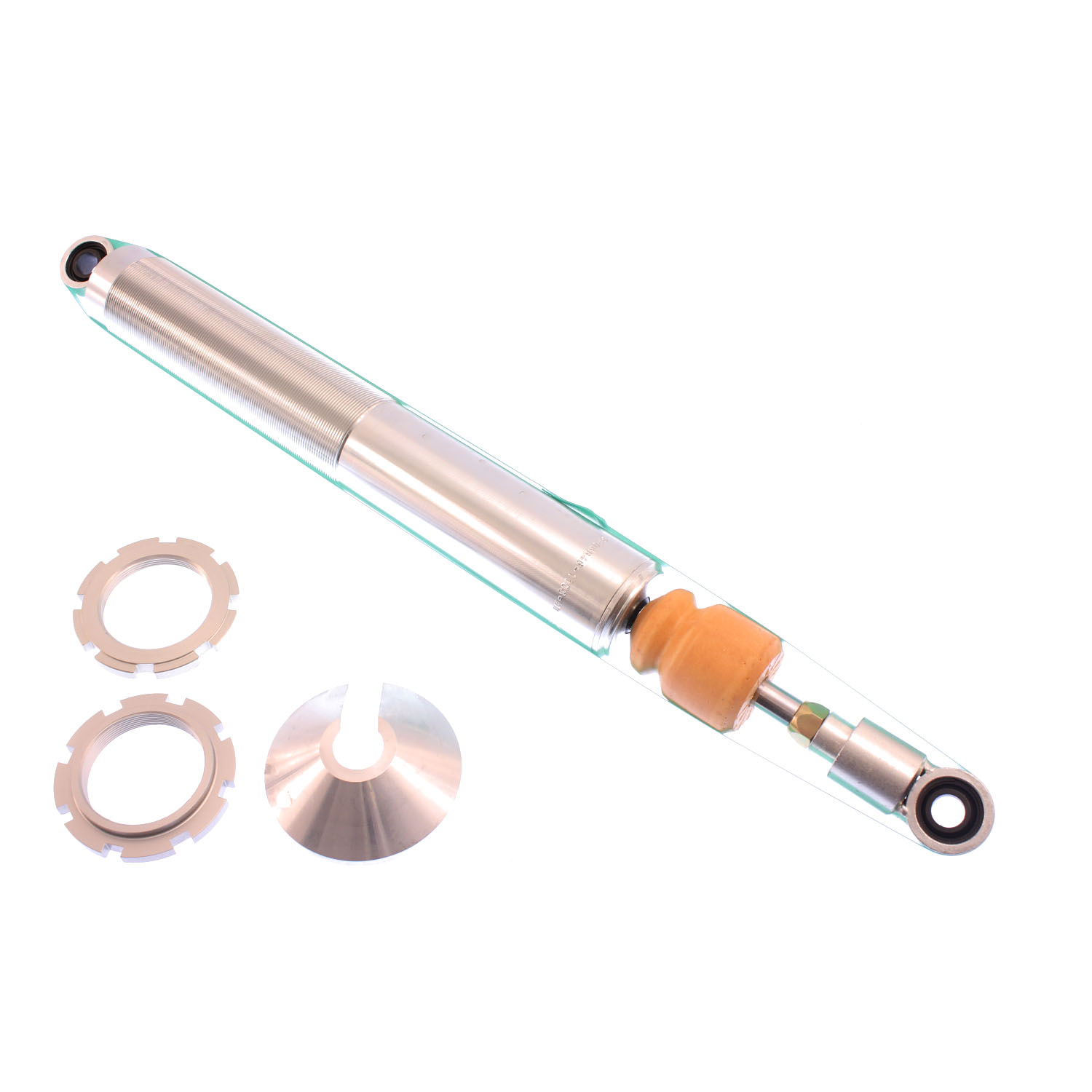

Bilstein Suspension Shock Absorber - F4-B46-1103-H1

M 7100 Classic (Coilover) - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: F4-B46-1103-H1
Old price: $176.40
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein M 7100 Classic (Coilover) is designed for custom off-road motorsports and recreational applications. These coilovers are factory rebuildable and feature a fully threaded, non-reservoir shock body. Each coilover is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 Classic (Coilover) is offered in a 10 inch travel stroke and come with 2.5 inch ID single rate spring hardware. For custom, light weight applications, M7100 Classic (Coilover) will deliver reliable performance.

Products specifications

Attribute name Attribute value
Internal Design Monotube
Body Design Threaded Body (Coilover)
Reservoir No
Series M 7100 Classic (Coilover)
Extended Length (mm) 682.5
Lower Mount Type 1/2in Heim
Optional Reservoir Clamp N/A
Rebound @0.52m/s 2590
Compression @0.52m/s 1020
Finish Zinc Plated
Extended Length (IN) 26.87
Upper Mount Type 1/2in Heim
Mount Type Eye-to-Eye
Spring Seat Included Yes
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware Single Rate (2.5in)
Collapsed Length (IN) 17.60
Piston Diameter 46mm
Collapsed Length (mm) 447.0
Shaft Diameter (mm) 14.0
Stroke/Travel Length (mm) 235.5
Stroke/Travel Length (IN) 9.27
Country of Origin DE
Condition New
Quantity per Application 2
