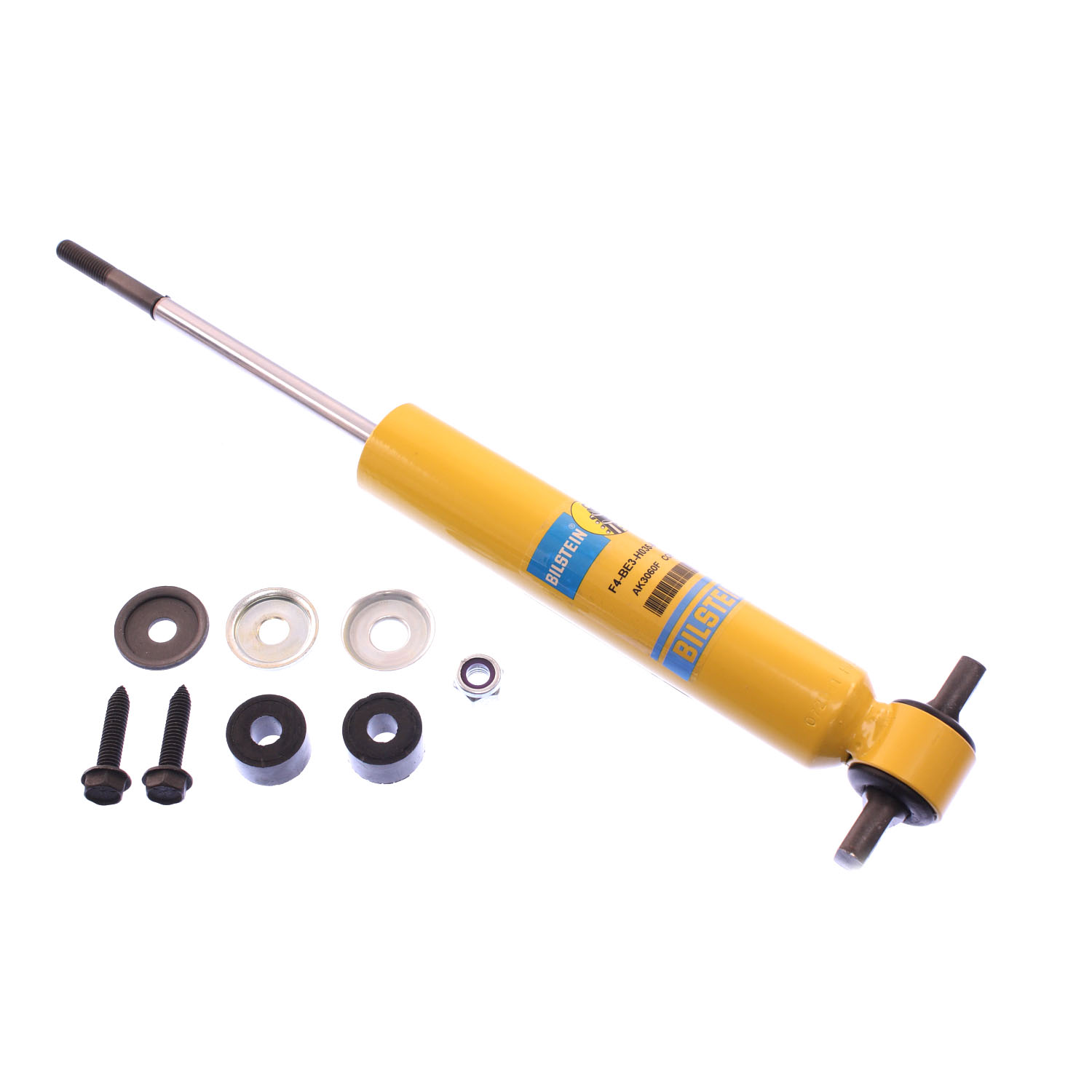

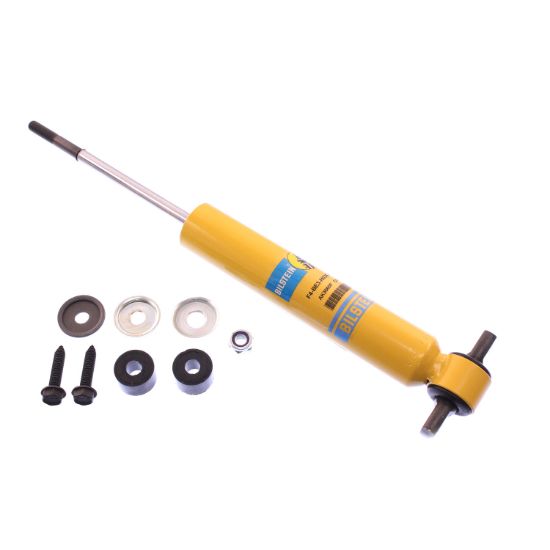

Bilstein Suspension Shock Absorber - F4-BE3-H035-M0

Name: Bilstein Suspension Shock Absorber - F4-BE3-H035-M0
SKU: F4-BE3-H035-M0
Price: 125.16 USD
Availability: OutOfStock

AK Series - Suspension Shock Absorber

Manufacturer: Bilstein

Manufacturer part number: F4-BE3-H035-M0

$125.16

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.

Application: No Applications

Products specifications

Attribute name	Attribute value
Adjustable Damping	Non-Adjustable
Body Material	Steel
Upper Mount Type	Stem
Collapsed Length (IN)	8.73
Finish	Yellow Paint
Piston Type	Digressive
Boot Included	No
Extended Length (mm)	342.0
Compression @0.26m/s	980
Rebound @0.26m/s	565
Collapsed Length (mm)	221.8
Series	AK Series
Extended Length (IN)	13.46
Internal Design	Monotube
Lower Mount Type	Bar Pin
Body Design	Stock Mount Smooth Body
Spring Seat Included	No
Segment	Motorsports
PartType	Shocks / Struts
Prop 65 Y/N	Y
Prop 65 - Short Label	WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Compression @0.52m/s	1150
Rebound @0.52m/s	770
Piston Diameter	36mm
Shaft Diameter	11mm
Stroke/Travel Length (mm)	120.1
Stroke/Travel Length (IN)	4.73
Country of Origin	US
Condition	New
Quantity per Application	2
