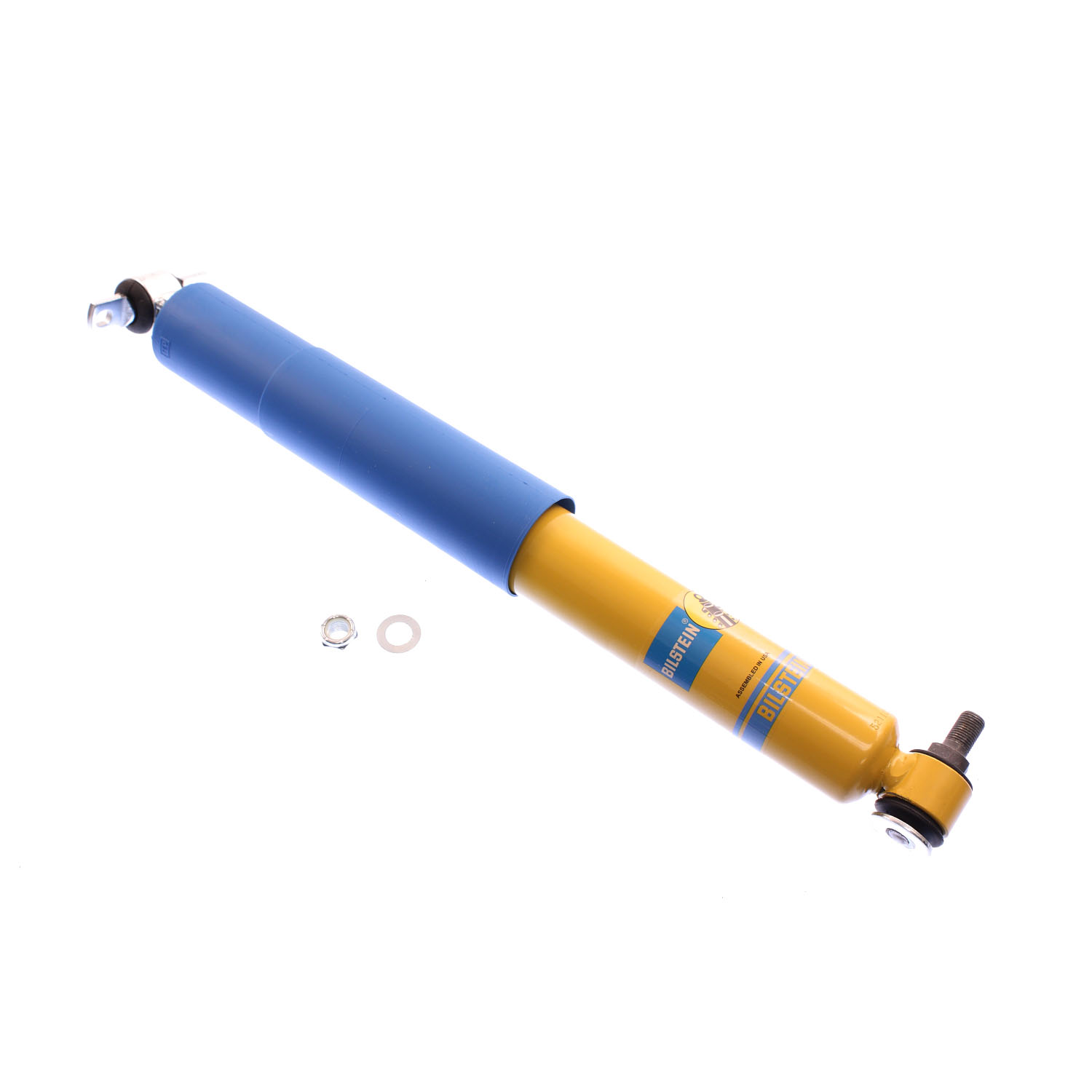

Bilstein Suspension Shock Absorber - F4-BE5-C752-M2

Name: Bilstein Suspension Shock Absorber - F4-BE5-C752-M2
SKU: F4-BE5-C752-M2
Price: 0.01 USD
Availability: OutOfStock

AK Series - Suspension Shock Absorber

Manufacturer: Bilstein

Manufacturer part number: F4-BE5-C752-M2

Old price: $97.00

Price: $0.01

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.

Products specifications

Attribute name	Attribute value
Lower Mount Type	Cantilever
Body Design	Stock Mount Smooth Body
Body Material	Steel
Internal Design	Monotube
Extended Length (mm)	515.0
Boot Included	Blue Straight
Collapsed Length (IN)	13.11
Adjustable Damping	Non-Adjustable
Finish	Yellow Paint
Valving Identifier	158/117
Compression @0.52m/s	785
Upper Mount Type	Bar Pin
Rebound @0.52m/s	1195
Piston Type	Digressive
Extended Length (IN)	20.28
Series	AK Series
Spring Seat Included	No
Segment	Motorsports
PartType	Shocks / Struts
Prop 65 Y/N	Y
Prop 65 - Short Label	WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware	N/A
Collapsed Length (mm)	333.0
Piston Diameter	46mm
Shaft Diameter	11mm
Stroke/Travel Length (mm)	182.1
Stroke/Travel Length (IN)	7.17
Country of Origin	US
Condition	New
Quantity per Application	2
