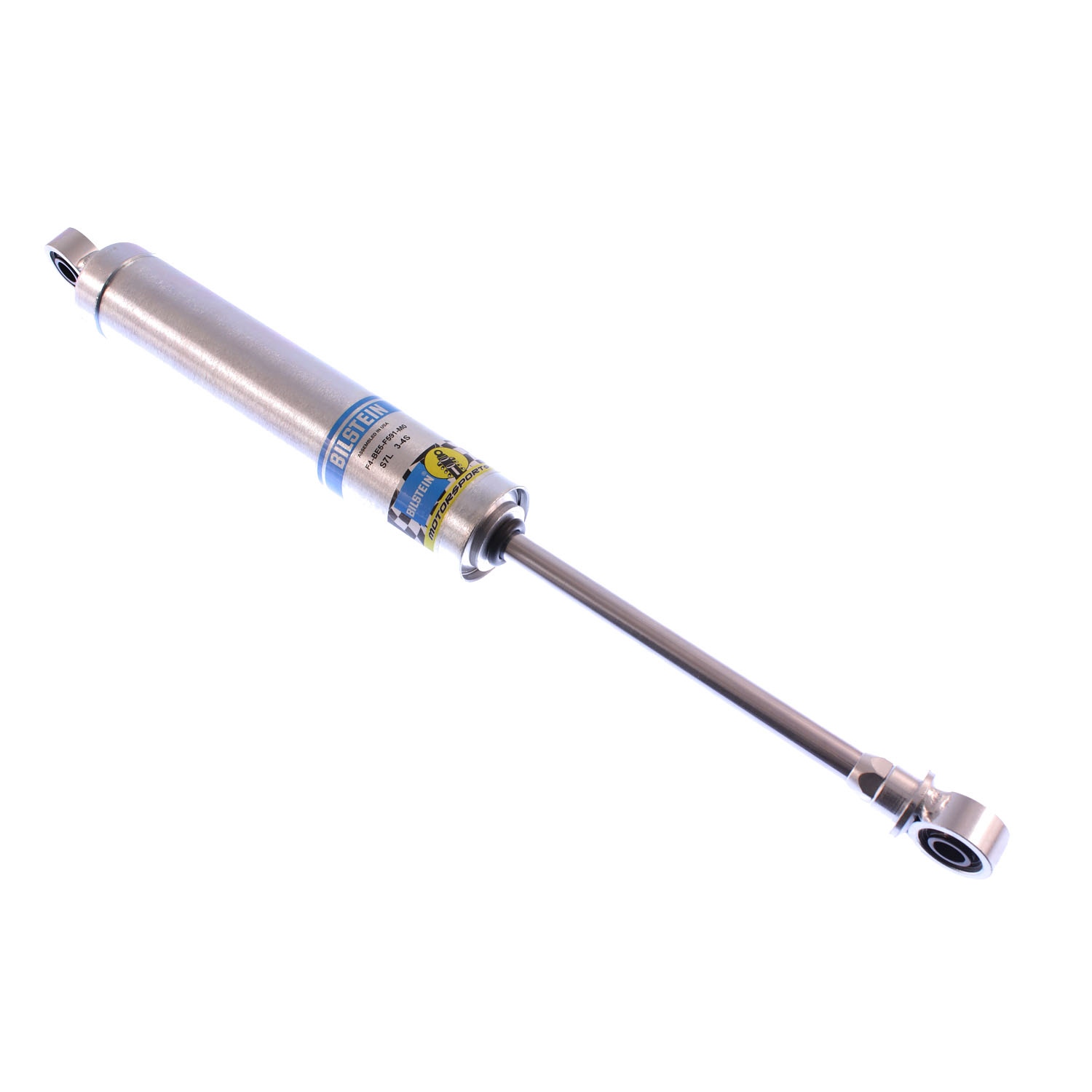

Bilstein Suspension Shock Absorber - F4-BE5-F593-M0

Name: Bilstein Suspension Shock Absorber - F4-BE5-F593-M0
SKU: F4-BE5-F593-M0
Price: 0.01 USD
Availability: OutOfStock

SLS Series - Suspension Shock Absorber

Manufacturer: Bilstein

Manufacturer part number: F4-BE5-F593-M0

Old price: $170.50

Price: $0.01

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Bilstein SLS Series shock absorbers feature a 46mm piston, steel construction, and a smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths, valve settings and can be converted to a coilover design (kit sold separately). SLS Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.

Products specifications

Attribute name	Attribute value
Upper Mount Type	1/2in Heim
Valving Identifier	3.5-1S
Extended Length (IN)	20.08
Finish	Zinc Plated
Collapsed Length (IN)	13.15
Series	SLS Series
Internal Design	Monotube
Compression @0.26m/s	375
Piston Type	Linear
Adjustable Damping	Non-Adjustable
Body Material	Steel
Boot Included	No
Body Design	Smooth Body (Non-Coilover)
Rebound @0.26m/s	895
Extended Length (mm)	510.0
Lower Mount Type	1/2in Heim
Spring Seat Included	No
Segment	Motorsports
PartType	Shocks / Struts
Prop 65 Y/N	Y
Prop 65 - Short Label	WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware	B4-BOA-0000117
Collapsed Length (mm)	334.0
Piston Diameter	46mm
Shaft Diameter	14mm
Stroke/Travel Length (mm)	176.0
Stroke/Travel Length (IN)	6.93
Country of Origin	US
Condition	New
