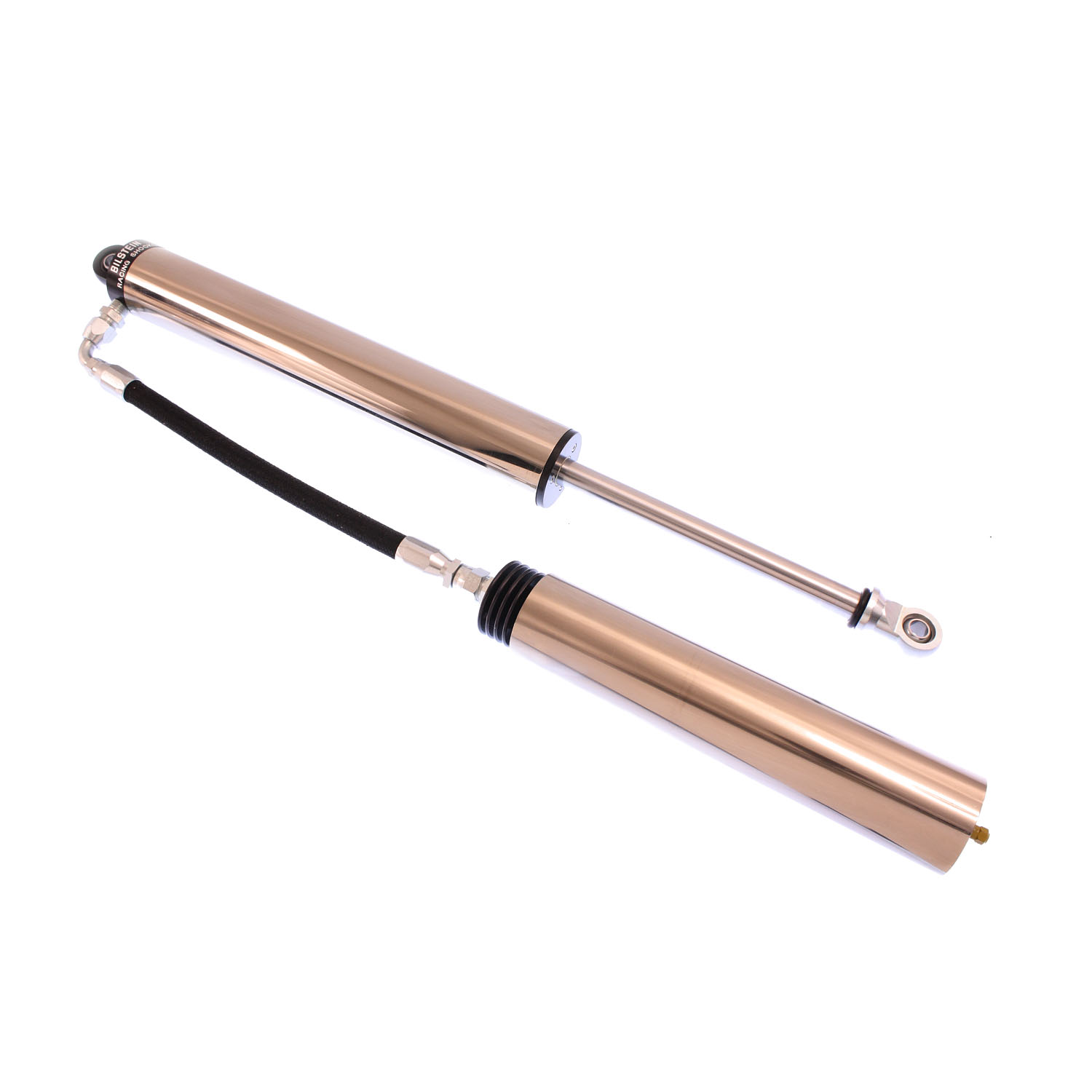

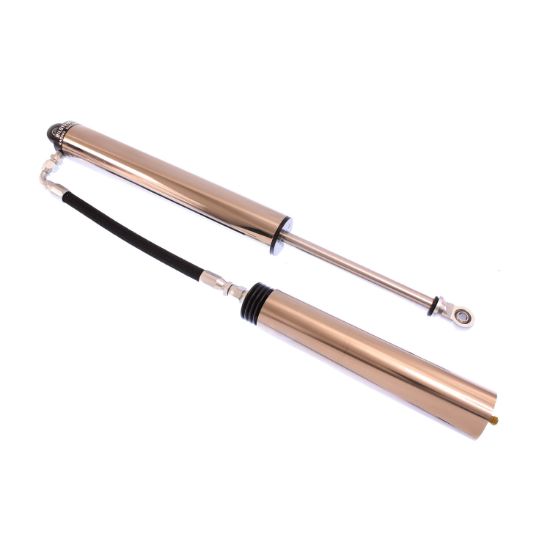

Bilstein Suspension Shock Absorber - F4-BOA-0000356

Name: Bilstein Suspension Shock Absorber - F4-BOA-0000356
SKU: F4-BOA-0000356
Price: 0.01 USD
Availability: OutOfStock

M 9100 (Smooth Body) - Suspension Shock Absorber

Manufacturer: Bilstein

Manufacturer part number: F4-BOA-0000356

Old price: $385.00

Price: $0.01

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Bilstein M 9100 (Smooth Body) off-road racing shock absorbers are filled with the technology perfected over 3 decades of off-road dominance. Bilstein's monotube gas pressure design maximizes heat dissipation for increased shock life, and decreases oil foaming to prevent performance loss while under extreme working conditions. Available for lifted truck, custom truck, rock crawling and off-road racing applications.

Products specifications

Attribute name	Attribute value
Body Design	Smooth Body Screw Top (Non-coilover)
Finish	Nickel Plated
Lower Mount Type	1/2in Heim
Series	M 9100 (Smooth Body)
Upper Mount Type	1/2in Heim
Compression @0.52m/s	Custom
Extended Length (IN)	33.86
Collapsed Length (mm)	551.4
Mount Type	Eye-to-Eye
Extended Length (mm)	860.0
Internal Design	Monotube
Collapsed Length (IN)	21.71
Reservoir	Yes
Optional Reservoir Clamp	N/A
Rebound @0.52m/s	Custom
Spring Seat Included	No
Segment	Motorsports
PartType	Shocks / Struts
Prop 65 Y/N	Y
Prop 65 - Short Label	WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Piston Diameter	60mm
Stroke/Travel Length (IN)	12.15
Shaft Diameter (mm)	22.0
Stroke/Travel Length (mm)	308.6
Country of Origin	US
Condition	New
Quantity per Application	2
