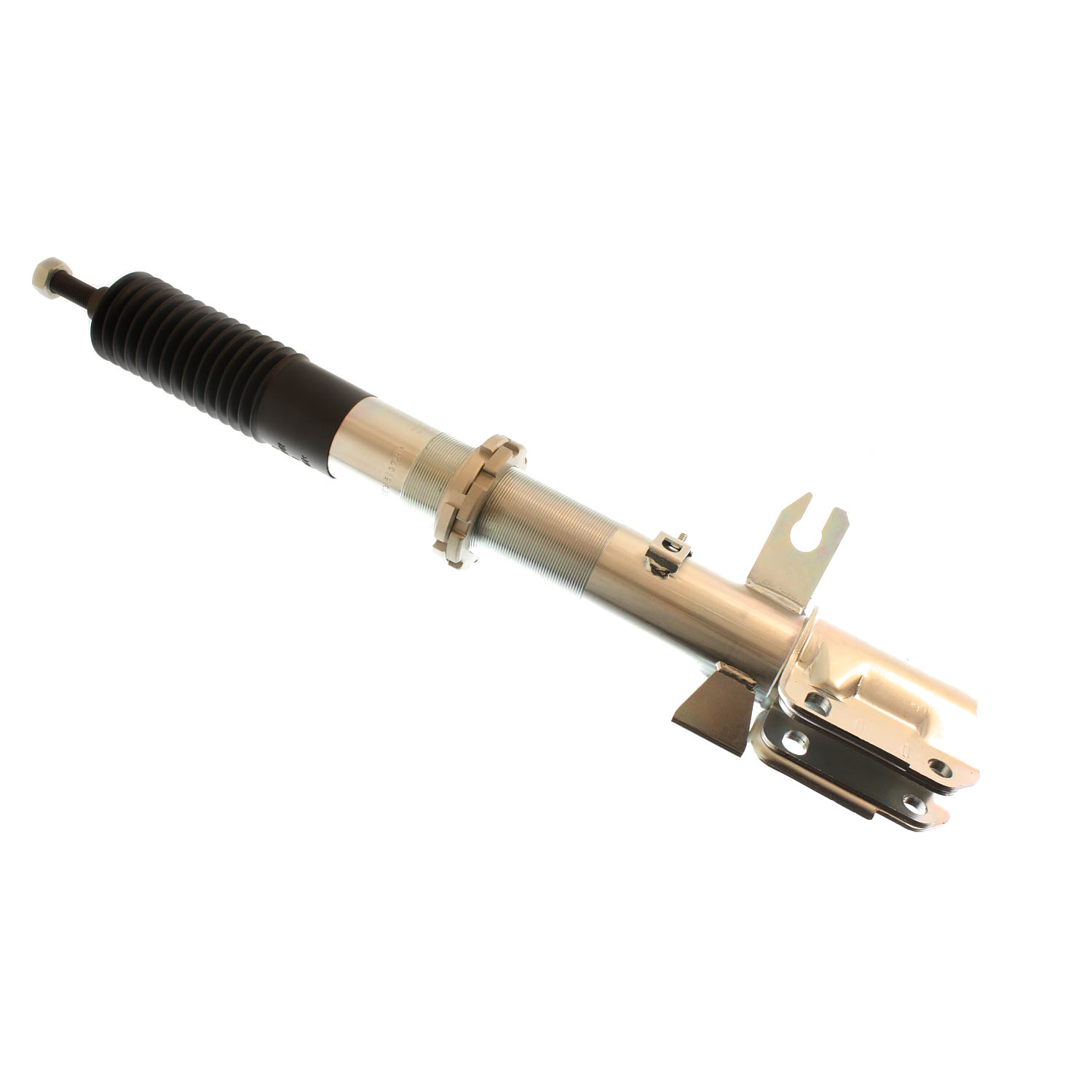

Bilstein Suspension Strut Assembly - 35-593744

Name: Bilstein Suspension Strut Assembly - 35-593744
SKU: 35-593744
Price: 771.00 USD
Availability: OutOfStock

Motorsports - Suspension Strut Assembly

Manufacturer: Bilstein

Manufacturer part number: 35-593744

$771.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Bilstein Motorsports dampers are designed as a direct fit solution for a variety of motorsports applications. Each damper features monotube technology with proprietary spring steel valve discs tuned specifically to each application for superior on-track handling and control. Bilstein Motorsports dampers are ideal for racers requiring a direct fit solution with true race-proven performance.

Application: No Applications

Products specifications

Attribute name	Attribute value
Piston Type	Digressive
Boot Included	Black Bellows
Position	Front
Body Design	Threaded Body (Coilover)
Series	Motorsports
Upper Mount Type	Stem
Body Material	Steel
Internal Design	Monotube
Extended Length (IN)	20.53
Compression @0.26m/s	1440
Collapsed Length (IN)	16.61
Extended Length (mm)	521.5
Rebound @0.26m/s	5370
Finish	Zinc Plated
Adjustable Damping	Non-Adjustable
Lower Mount Type	Bracket
Spring Seat Included	Yes
Segment	Motorsports
PartType	Shocks / Struts
Prop 65 Y/N	Y
Prop 65 - Short Label	WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware	N/A
Collapsed Length (mm)	422.0
Piston Diameter	46mm
Shaft Diameter	11mm
Stroke/Travel Length (IN)	3.92
Stroke/Travel Length (mm)	99.6
Country of Origin	DE
Condition	New
