BluePrint Engines Engine Complete Assembly - BPMS396CTF

Name: BluePrint Engines Engine Complete Assembly - BPMS396CTF
SKU: BPMS396CTF
Price: 9399.00 USD
Availability: OutOfStock

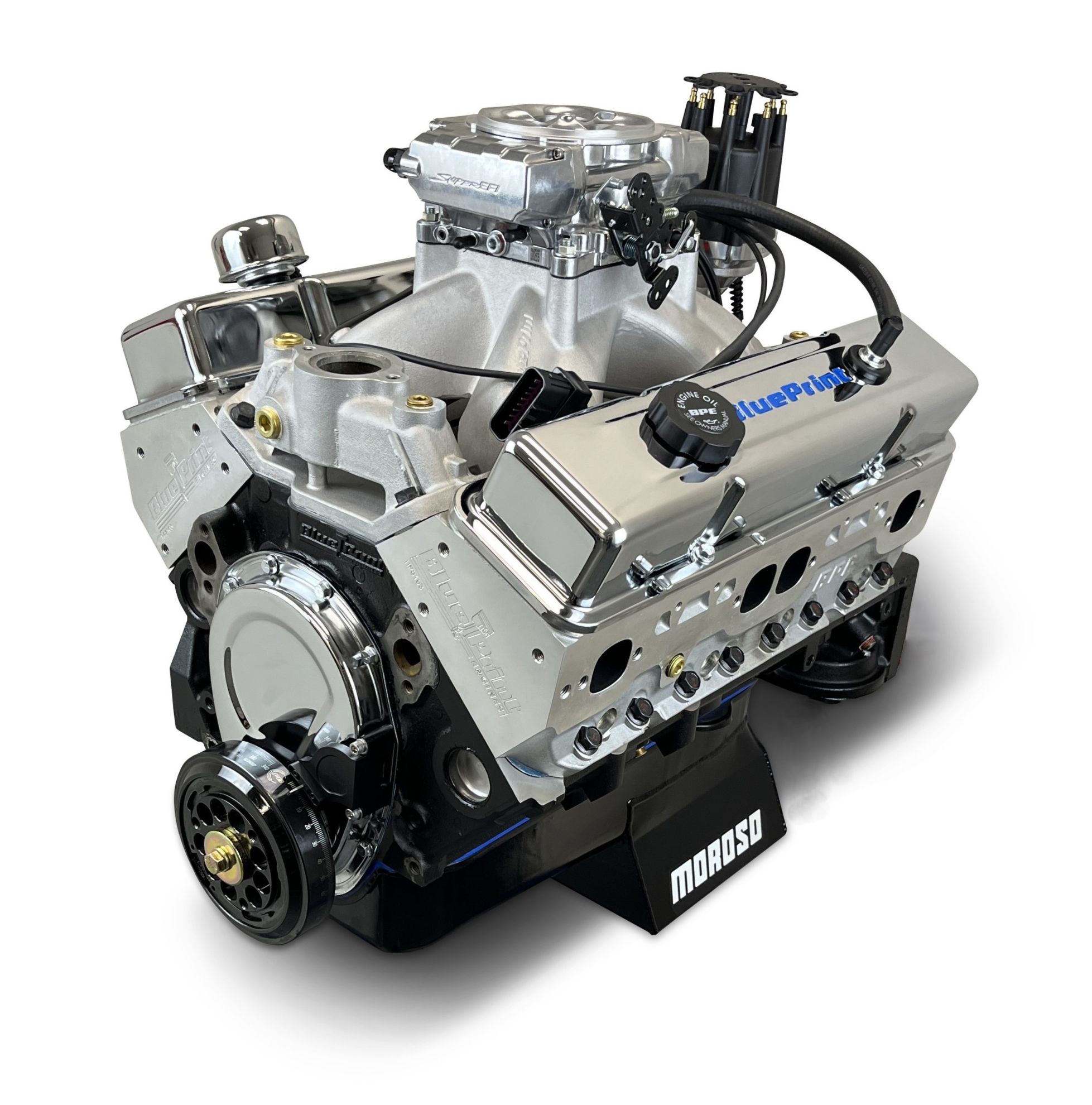

BluePrint Motorsports GM Small Block Compatible 396 c.i. Engine

Manufacturer: BluePrint Engines

Manufacturer part number: BPMS396CTF

$9,399.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

BluePrint Motorsports GM Small Block Compatible 396 c.i. Engine - 530 Horsepower - Base Dressed - Fuel Injected

Note: BluePrint Motorsports engines are built for maximum performance and are intended for extreme duty race applications. If this engine is used in a street application our normal 30 month, 50,000-mile warranty applies, if used in sanctioned racing no warranty, expressed, or implied.

Watch product video

Products specifications

Attribute name	Attribute value
Horsepower	530
Torque	480
Compression Ratio	10.4:1
Block Description	BluePrint Engines Cast Iron Block - 4 Bolt Main - 4.000" Bore
Rear Main Seal Style	1 Piece
Rotating Assembly	Forged Crank - 3.875 in. Stroke and 6 in. Rods
Cam	Hydraulic Roller - .638 Intake / .622 Exhaust Lift - 251 Intake / 259 Exhaust Duration [email protected] LSA
Crankshaft Vendor	BluePrint Engines
Engine Balance	Internally Balanced Front - Externally Balanced Rear
Cylinder Heads Included	Yes
Cylinder Heads	Aluminum Cylinder Heads
Cylinder Head Vendor	BluePrint Engines
Flexplate/Flywheel Included	No
Recommended Flexplate/Flywheel	BPP871006 - BPP399173 - BPP300116
Harmonic Balancer Included	No
Recommended Harmonic Balancer	BPP350
Timing Requirements	Initial Timing 10-16 - Total Timing 32-34
Timing Cover Included	Yes
Oil Pan Included	Yes-Rear Sump
Valve Covers Included	Yes
Intake Manifold Included	Yes
Intake Manifold Type	Single Plane, Satin Aluminum
Intake Manifold Vendor	BluePrint Engines
Fuel Delivery Type	Holley Sniper 2 EFI - Self-Tuning Kit - Chrome
Fuel Delivery Vendor	Holley
Carb/Fuel Injection Included	Yes
Recommended Octane Fuel	100+ Octane
Distributor Included	Yes
Distributor Vendor	BluePrint Engines
Spark Plugs Included	No
Recommended Spark Plug Gap	.035 in.
Recommended Spark Plug	BPP7938 NGK 7938 BKR5E
Spark Plug Wires Included	No
Firing Order	1,8,4,3,6,5,7,2
Water Pump Included	No
Air Cleaner Included	No
Recommended Stall Converter	2000-2400 RPM
Pulley Kit Included	No
Quantity	EA
Notes	BluePrint Motorsports engines are built for maximum performance and are intended for extreme duty applications. Because of the high-stress nature of their use, these engines are sold without any warranty, expressed, or implied. This engine features a true 4-inch bore, which mathematically yields 389 CID with a 3.875-inch stroke.
Pistons	Forged 4032 High RPM Endurance
Prop 65 Y/N Flag	Yes
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Country of Origin	US
Condition	New
