BluePrint Engines Engine Cylinder Head - HP9008

Name: BluePrint Engines Engine Cylinder Head - HP9008
SKU: HP9008
Price: 849.00 USD
Availability: InStock

ENG Cylinder Head

Manufacturer: BluePrint Engines

$849.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

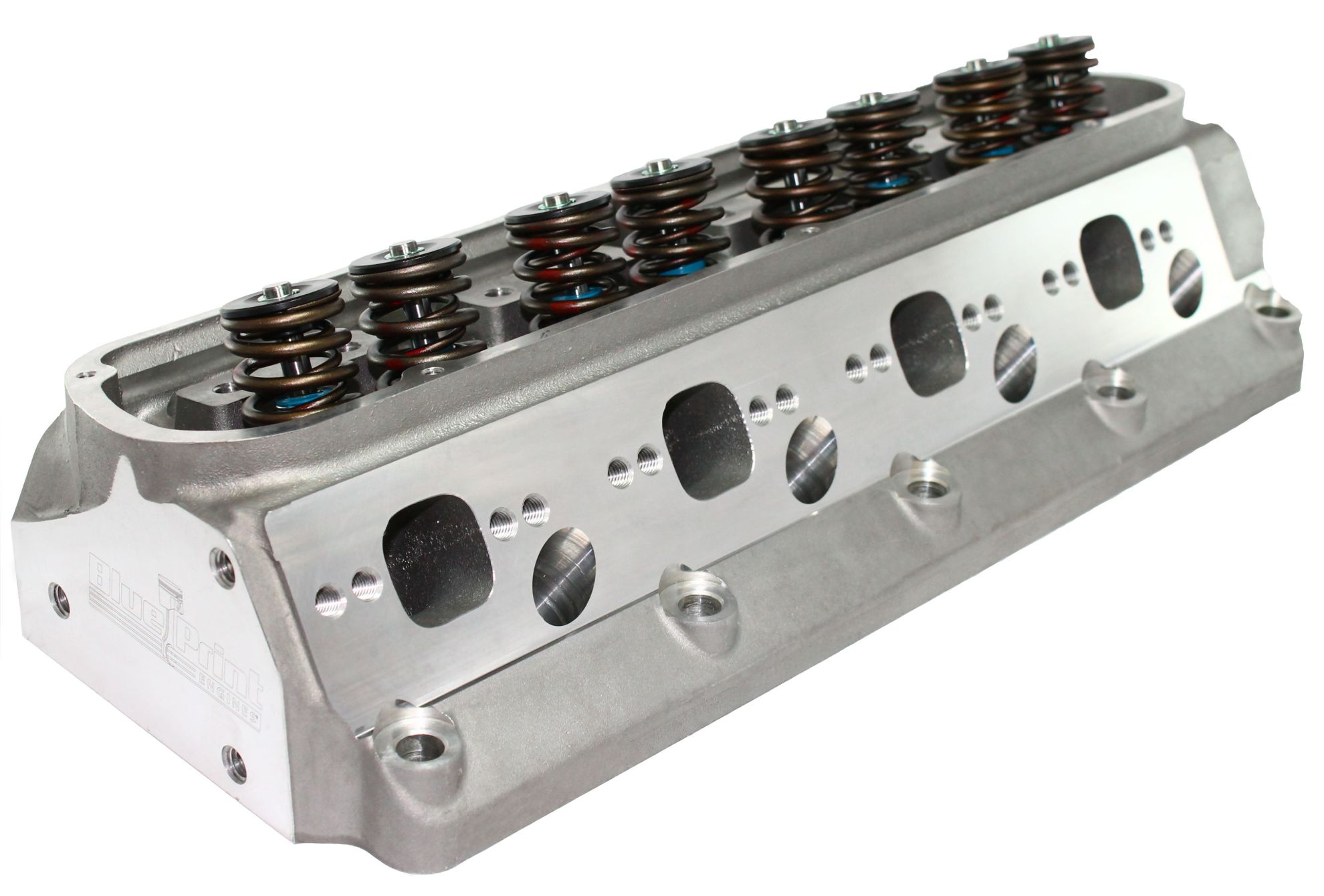

SB Ford Aluminum Cylinder Head 190cc Pedestal Mount Assembled

Products specifications

Attribute name	Attribute value
Manufacturer's Part Number:	HP9008
Intake Runner Volume (cc):	190cc
Exhaust Runner Volume (cc):	65cc
Cylinder Head Style	Assembled
Cylinder Head Material	Aluminum
Intake Port Shape:	Rectangular
Intake Valve Diameter (in.):	2.020 in.
CNC-Machined Combustion Chamber:	No
CNC-Machined Intake Runner:	No
Intake Port Location:	Standard
Exhaust Port Shape:	Square
Exhaust Port Location:	Standard
Spark Plug Style:	Angle
Intake Valves Included:	Yes
Exhaust Valves Included:	Yes
Exhaust Valve Diameter (in.):	1.600 in.
Valve Springs Included:	Yes
Maximum Valve Lift (in.):	0.575 in.
Outside Diameter of Outer Spring (in.):	1.437 in.
Damper Spring Included:	Yes
Number of Springs Per Valve:	Dual
Retainers Included:	Yes
Retainer Material:	Chromoly steel
Locks Included:	Yes
Lock Style:	7 degree
Valve Stem Seals Included:	Yes
Valve Stem Seal Style:	Viton® Fluoroelastomer
Rocker Arm Studs Included:	No
Rocker Arm Nut Thread Size:	N/A
Rocker Arms Included:	No
Rocker Arm Nuts Included:	No
Valve Cover Mounting Style	Perimeter bolt
Accessory Bolt Holes Drilled:	Yes
Intake Valve Angle:	20
Exhaust Valve Angle:	20
Valve Guides Included:	Yes
Valve Guide Material:	Manganese bronze
Valve Seats Machined:	Yes
Valve Seat Machine Style:	5-angle
Valve Seat Material:	Chrome nickel
Cylinder Head Color:	Natural
Steam Holes Drilled:	No
Oiling Style:	Through pushrod
Machined for O-Ring:	No
Heat Crossover:	No
Notes	Uses pedestal mount rocker arms.
Camshaft Style:	Hydraulic Roller
Guide plates Included:	No
Guide plate Pushrod Size:	N/A
Combustion Chamber Volume (cc):	60cc
Quantity	Sold Individually
Prop 65 Y/N Flag	Yes
