Centerforce Transmission Clutch and Flywheel Kit - 413613098

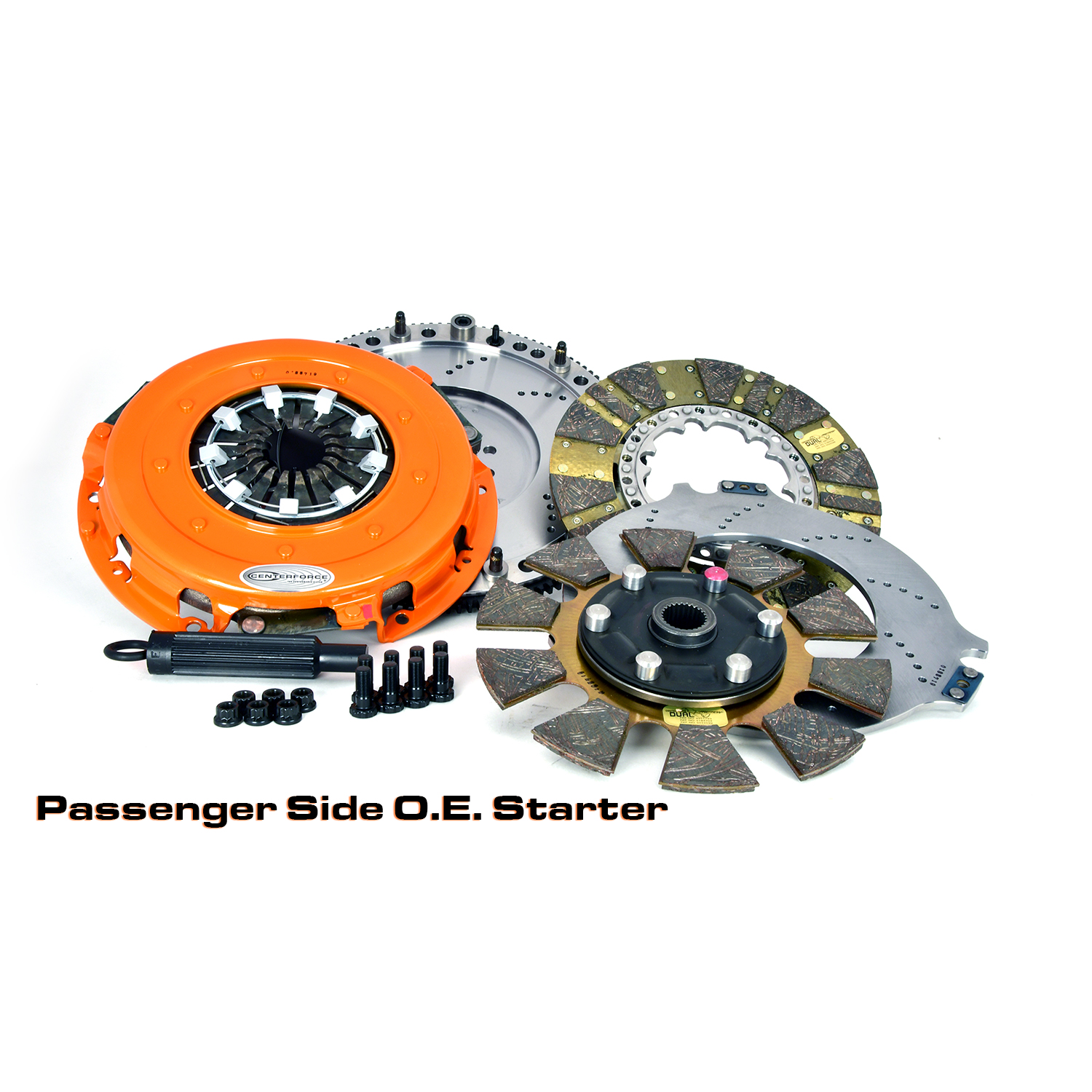

DYAD(R) DS 10.4, Clutch and Flywheel Kit
Manufacturer: Centerforce
Manufacturer part number: 413613098
$1,816.95
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Please Note: Gen III Chrysler Hemi engines and transmissions have a few different variations, including bellhousing depth and starter position. This kit is designed for use with a short aftermarket bellhousing (i.e. short deck) and an OE type starter positioned on the passenger side of the engine The Centerforce(R) DYAD DS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.

Products specifications

Attribute name Attribute value
Tooth Quantity 130
California Proposition 65 WARNING - Includes Nickel - cancer. www.P65Warnings.ca.gov.
Input Shaft Diameter 1-1/8
Counterweight Assist YES
Input Spline Quantity 26
Ring Gear O.D. 13.205
Clutch Disc Diameter 10.4
Material Cast Iron Pressure Plate / Segmented Organic Friction
Crankshaft Bolt Hole Quantity 8
Flywheel Counter Balance Weight 0
Flywheel Crank Bolt Size M10 x 1.00 x 25
Alignment Tool Included Yes
Mounting Hardware Included Yes
Made In The USA Assembled
Country of Origin US
