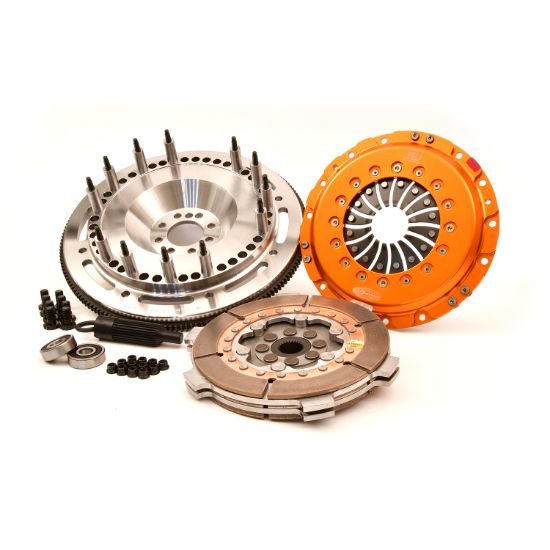

Centerforce Transmission Clutch and Flywheel Kit - 838264077

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle

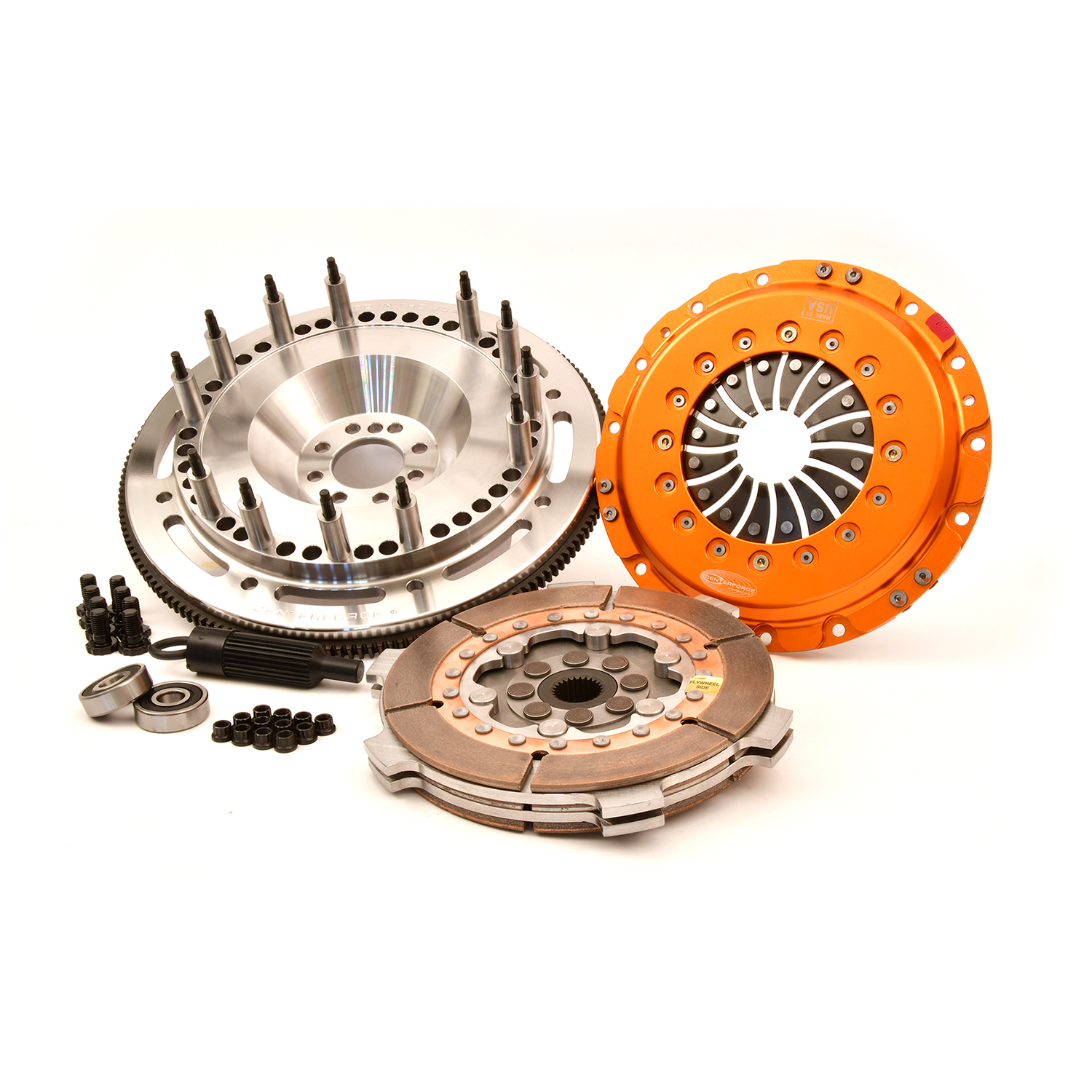

TRIAD(R) XDS, Clutch and Flywheel Kit
Manufacturer: Centerforce
Manufacturer part number: 838264077
$2,309.95
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The Centerforce(R) TRIAD XDS 8.75" triple disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1200 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The solid hub (possible gear noise) disc pack is equipped with Kevlar full facing friction material providing increased holding capacity. TRIAD XDS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Due to the aggressive nature of this race inspired clutch, vehicles may experience some floater noise and/or chatter during operation. Components are designed, machined and assembled in the USA. TRIAD XDS clutches are match balanced and ready for installation using the included ARP fasteners.

Products specifications

Attribute name Attribute value
Disc Type Sprung Solid Solid
Input Shaft Diameter 1-1/8
Counterweight Assist No
Input Spline Quantity 26
Ring Gear O.D. 14.105
Clutch Disc Diameter 8.75
Material Cast Iron Pressure Plate / Full Face Metalic Friction
Replaceable Friction Surface N
Crankshaft Bolt Hole Quantity 8
Flywheel Crank Bolt Size MM11 x 1.50 x 23
Pilot Bushing Included Yes
Alignment Tool Included Yes
Mounting Hardware Included Yes
Made In The USA Assembled
Torque Capacity 1100
Tooth Quantity 168
California Proposition 65 WARNING - Includes Nickel - cancer. www.P65Warnings.ca.gov.
Country of Origin US
🚗 Compatible with
9 vehicles are compatible with this product · 2014–2019
