Picture of Dart Engine Cylinder Head - 19706090
Picture of Dart Engine Cylinder Head - 19706090 Picture of Dart Engine Cylinder Head - 19706090

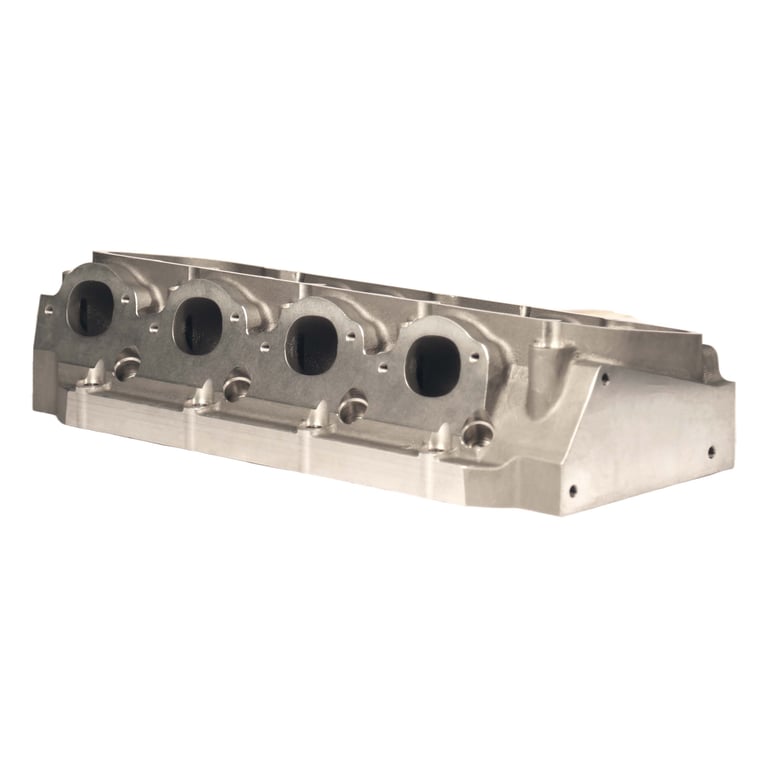

Dart Engine Cylinder Head - 19706090

BBC PRO1 20? 440cc Cylinder Head - Bare 4.600 Bore Chamber
Manufacturer: Dart
Manufacturer part number: 19706090
$2,164.09
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Maximum competition, high torque, high compression - low dome. 8000+ RPM, 500+ cubic inches.

Note: BBC PRO1 20 440cc Cylinder Head - Bare 4.600 Bore Chamber

Products specifications

Attribute name Attribute value
EBAY Category ID 33617
CNC Ported No
Combustion Chamber Volume 97.00
Exhaust Valve Diameter 1.800
Intake Valve Diameter 2.400
Material Cast Aluminum
Port Location Raised
Port Style Rectangle
Port Volume 440.00
Valve Angle 20
Valve Spring Diameter Bare
Valve Spring Maximum Lift Bare
Prop 65 (C, R or CR) CR
Prop 65 Yes/No Yes
Valve Spring Type Bare
Product Type Engine Cylinder Head
Cylinder Head Series Pro1
Category Hierarchy Heads>Big Block Chevy>Pro1
Engine Family Big Block
Intake Runner Volume 440.00
