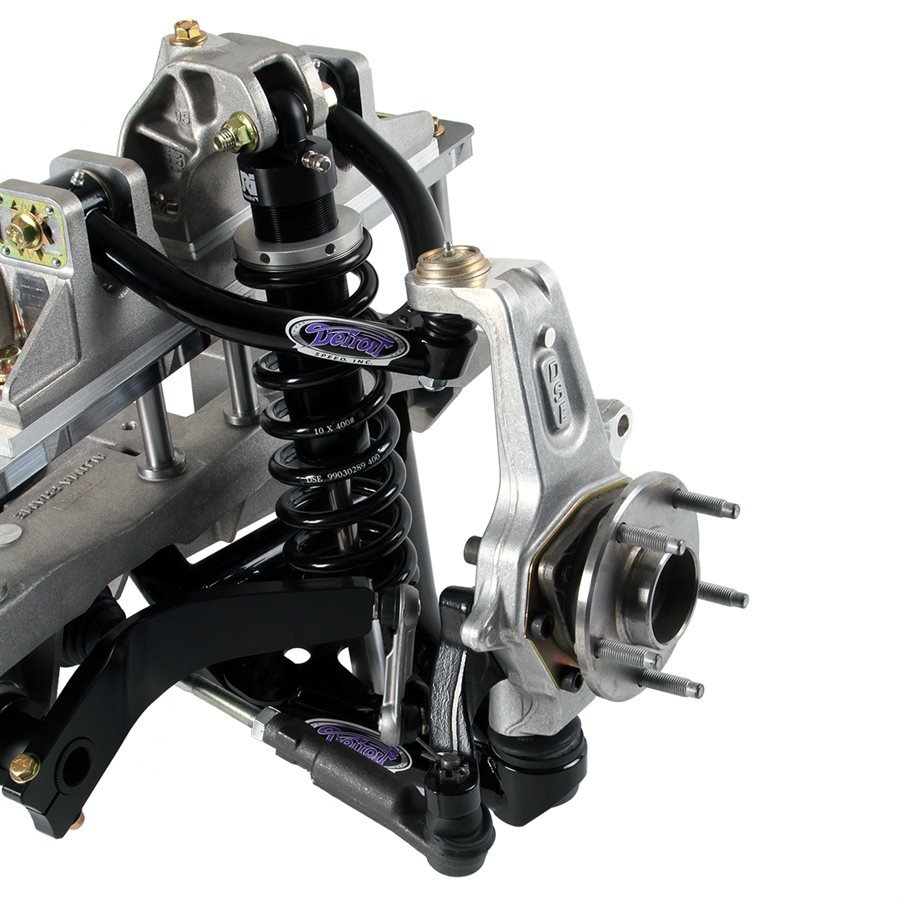

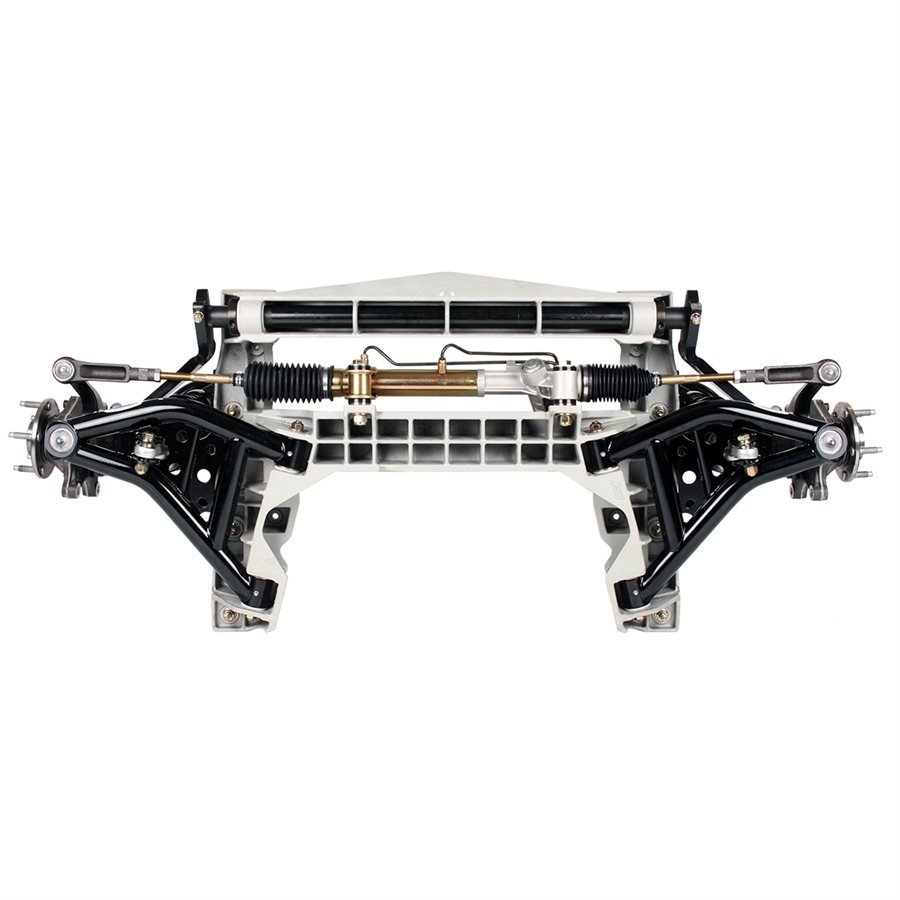

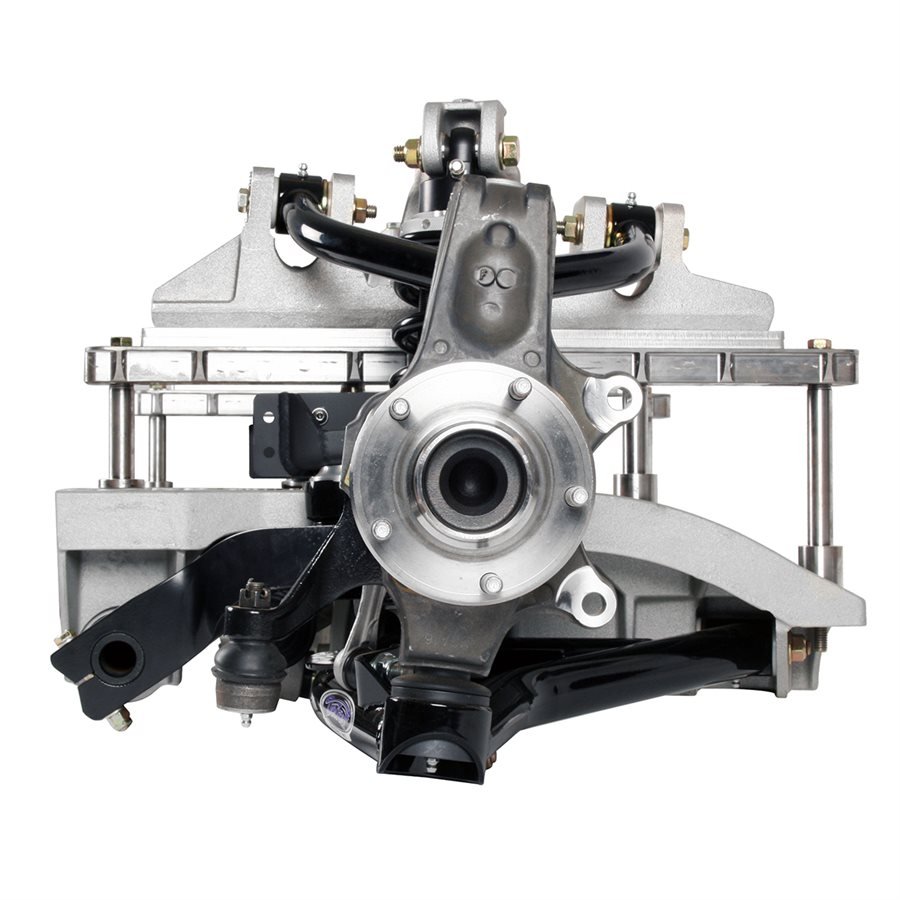

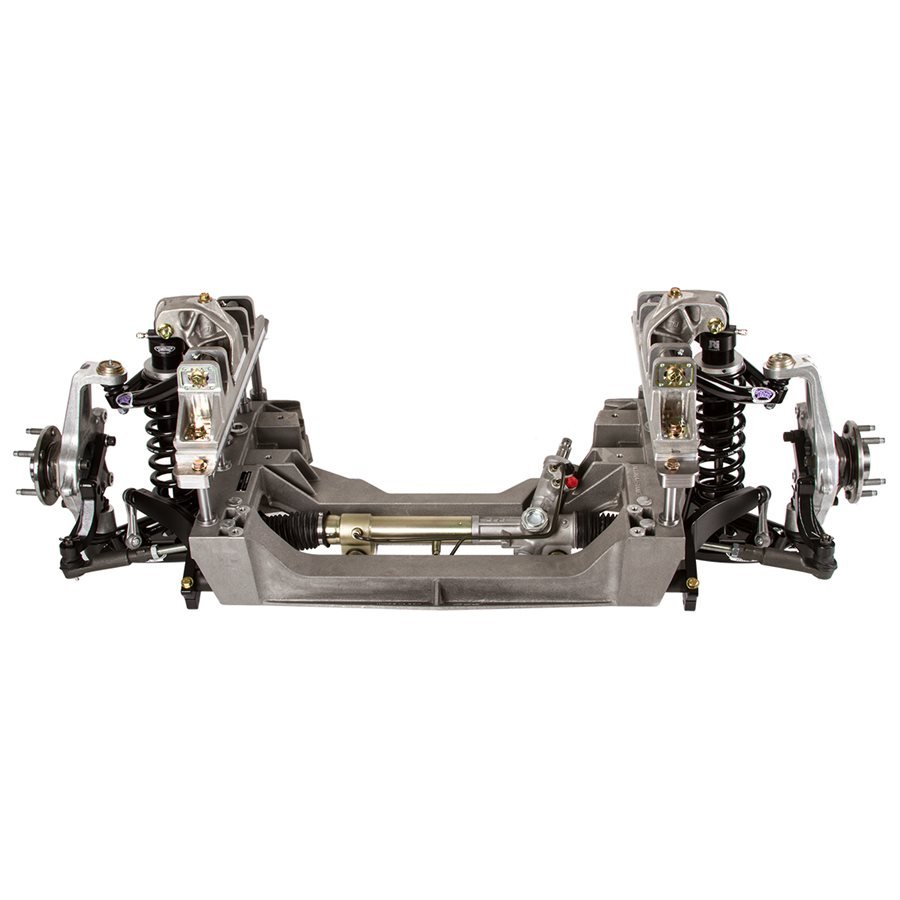

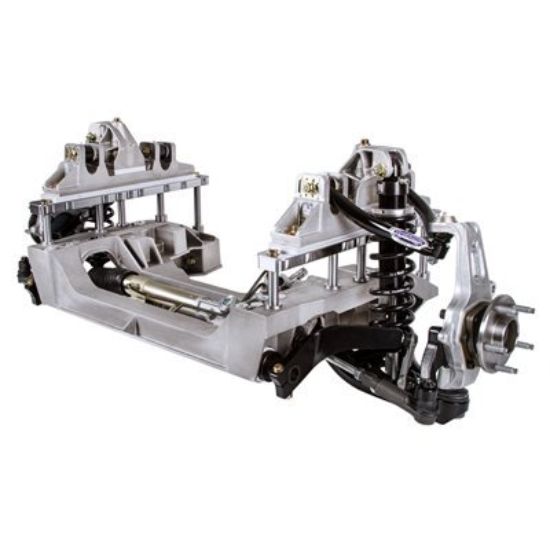

Detroit Speed - Archived Suspension Subframe - 032050-DDS

All aluminum front suspension system for 1964.5 -1970 Mustangs featuring Detroit Speed's unique suspension geometry with 6" of suspension travel for the ultimate in ride and performance. Spring Rate: 400lbs/in Spring Free Length: 10inDouble Adjustable Shock: This is the most race winning shock JRi has in its stable. With its two independent adjustments and the enormous range of adjustment it can be set to the exacting demands of the driver and performance levels required while providing excellent ride quality on the street.

Note: Anti-roll bar arms are satin black, upper and lower control arms are gloss black. Must use at least 17" wheels that require a minimum inside wheel diameter of 16.250". The Aluma-Frame will need to be modified to clear the alternator on the Coyote engine application. Detroit Speed offers an alternator relocation bracket, P/N 060436 that will be required along with modifying the Aluma-Frame to fit the Coyote engine. Please call to order. For competition applications, the Detroit Speed rack & pinion fluid transfer conversion kit will replace the hardlines on your Detroit Speed rack & pinion using -4 AN steel fittings. The hoses are Teflon lined to handle the high pressure demands of the steering system and come with pre-crimped stainless steel fittings to attach to the -4 AN fittings.
