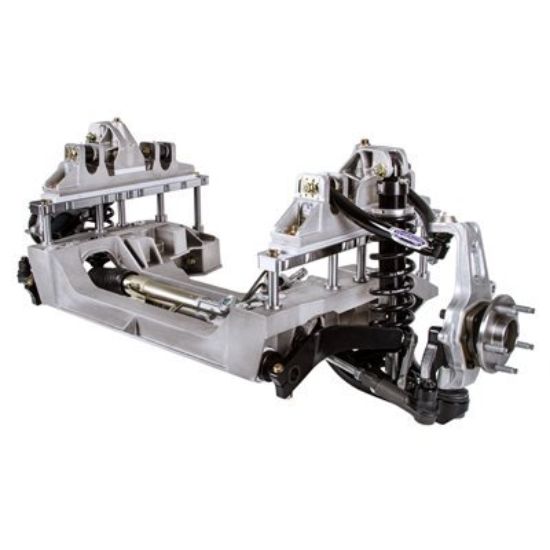

Detroit Speed - Archived Suspension Subframe - 032051-RDS

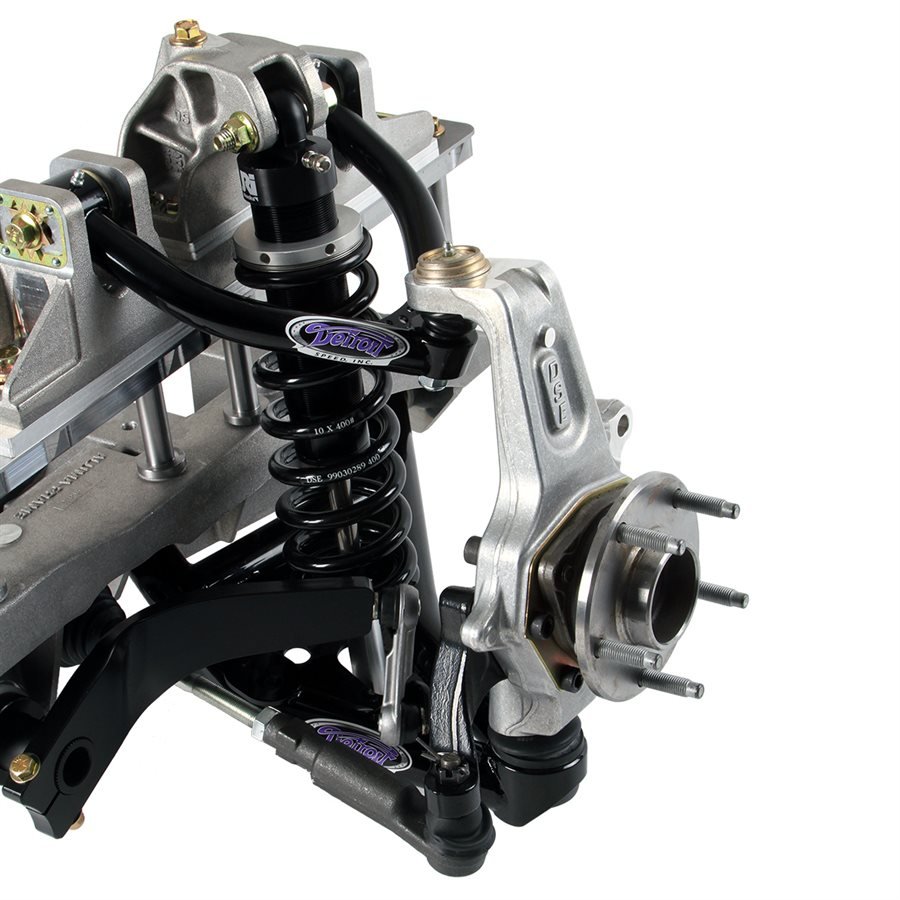

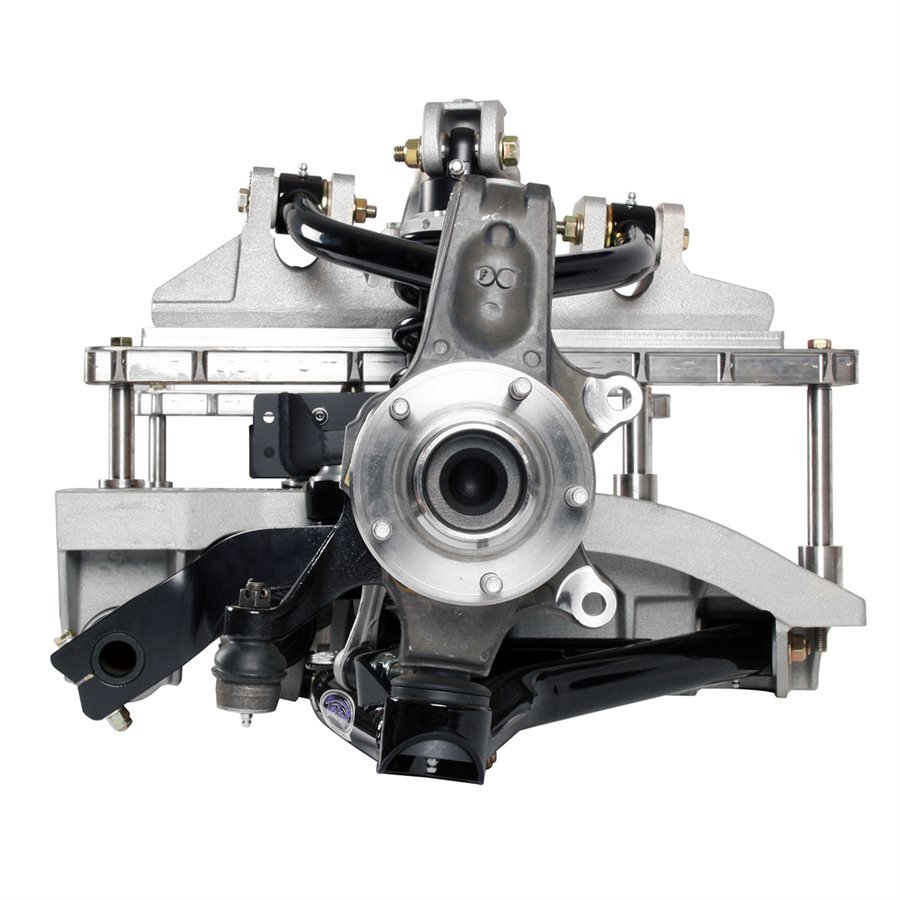

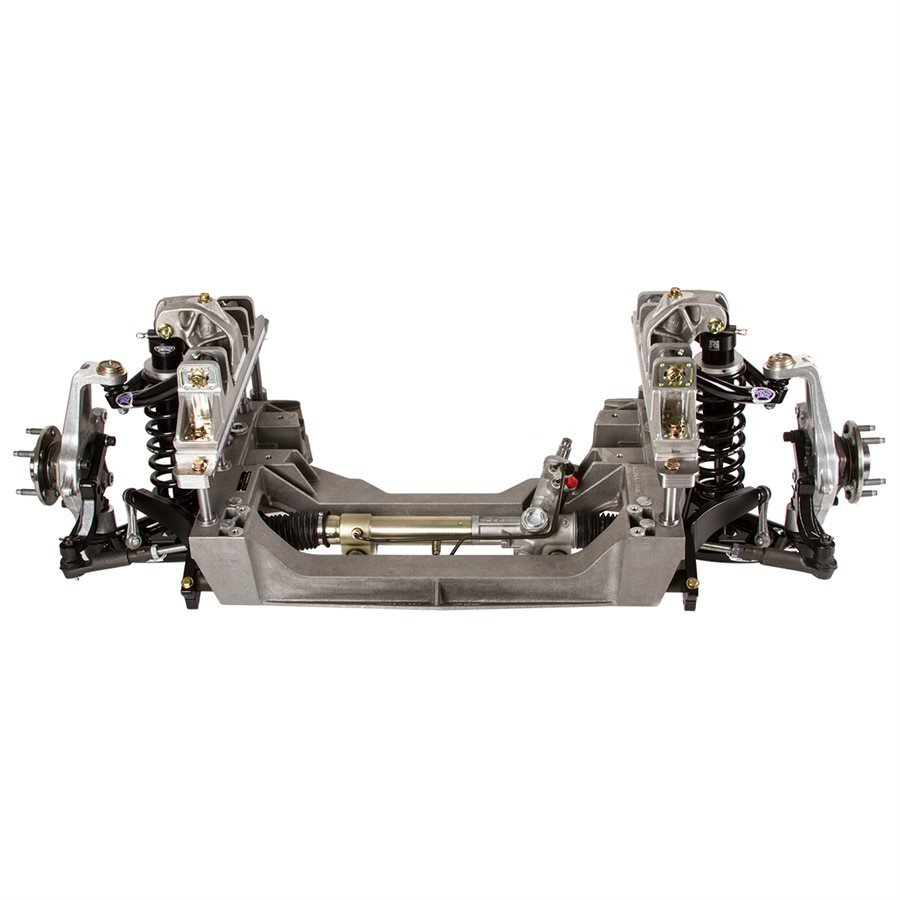

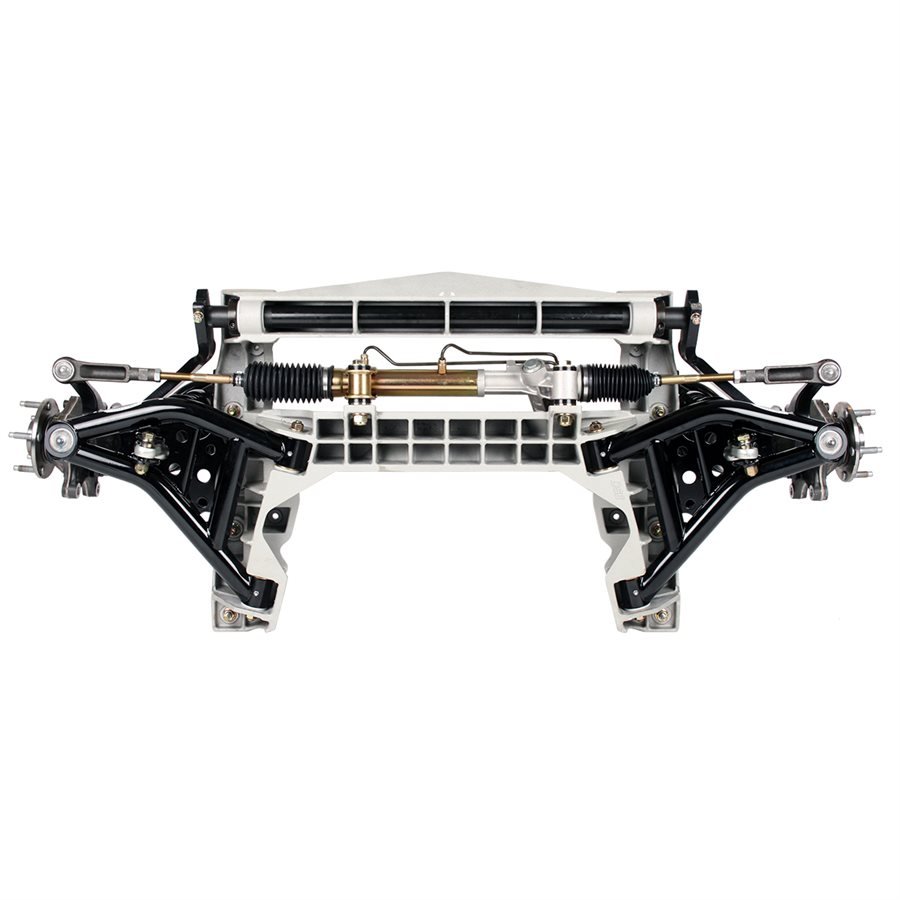

All aluminum front suspension system for 1964.5 -1970 Mustangs featuring Detroit Speed's unique suspension geometry with 6" of suspension travel for the ultimate in ride and performance. Spring Rate: 400lbs/in Spring Free Length: 10inDouble Adjustable w/ Remote Canister: This DSE/JRi shock has all of the qualities of the double adjustable shock and incorporates a gas charged bladder to provide high frequency and low speed dampening control. Remote Canister Shock Mounts: These billet aluminum shock mounts are manufactured for securing your remote shock canisters to the vehicle. The shocks mount with two 1/4"-20 x 1/2" button head screws.

Note: Anti-roll bar arms are satin black, upper and lower control arms are gloss black. Must use at least 17" wheels that require a minimum inside wheel diameter of 16.250". The Aluma-Frame will need to be modified to clear the alternator on the Coyote engine application. Detroit Speed offers an alternator relocation bracket, P/N 060436 that will be required along with modifying the Aluma-Frame to fit the Coyote engine. Please call to order. For competition applications, the Detroit Speed rack & pinion fluid transfer conversion kit will replace the hardlines on your Detroit Speed rack & pinion using -4 AN steel fittings. The hoses are Teflon lined to handle the high pressure demands of the steering system and come with pre-crimped stainless steel fittings to attach to the -4 AN fittings.
