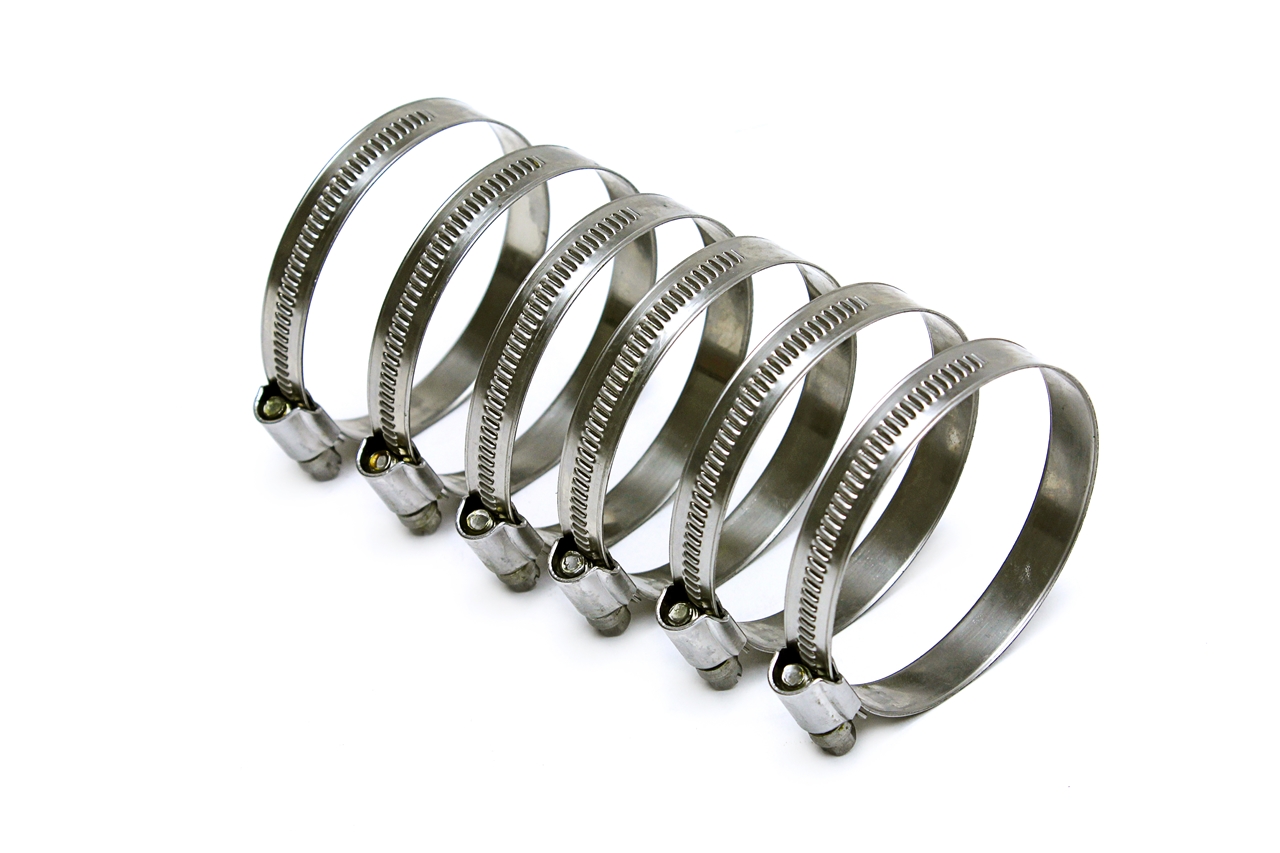

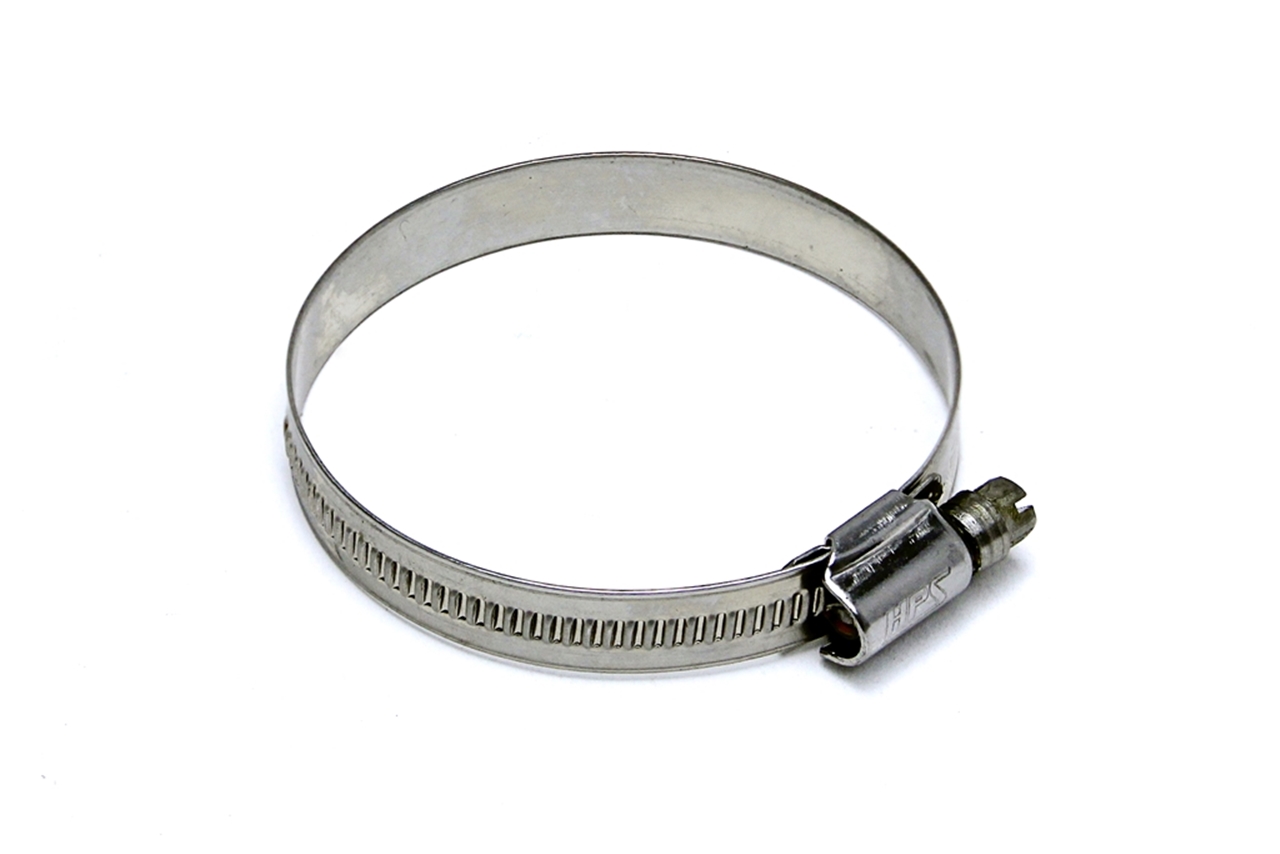

HPS Performance Hose Clamp - EMSC-50-70x6

Stainless Steel Embossed Hose Clamp,Size #40,Effective Range:2"- 3",6pc
Manufacturer: HPS Performance
Manufacturer part number: EMSC-50-70x6
$21.42
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

HPS 100% Stainless Steel Embossed Hose Clamps SAE # 40 6pcs pack 2" - 3" (51mm-76mm) are ideal for aircraft, heavy-duty industrial applications as well as outdoor, fresh water and mildly corrosive applications. HPS embossed clamp is design to prevent hose damage during installation and does not corrode like the standard worm gear clamp. The non-perforated band keeps soft silicone hoses from shearing or extruding during installation. The one piece housing design helps maintaining the integrity of the connection and provides a strong seal. Technical Specification: SAE # 40. 100% Stainless Steel. 12mm (1/2") band. 7mm slotted hex head. Heavy duty industrial grade one-piece housing design. Rolled edges prevent hose damage during installation. Effective Diameter Range: 2" - 3" (51mm-76mm). Recommend to use on HPS hoses with inside diameter range from 2" - 2-9/16" (51mm - 65mm). Maximum Torque Spec: 35 in lbs. Exceeds all SAE requirements. REMARK: Sold in box of 6.

Note: Remark: Do not use for marine applications.

Products specifications

Attribute name Attribute value
Color Polished
Material Stainless Steel
Housing Material Stainless Steel
Finish Plain
Minimum Diameter 51
Maximum Diameter 76
Band Width 12
Type Worm Gear
Screw Type Worm Gear
Adjustment Type Screw
Recommended Torque 27
Minimum Clamping Length 22
Reusable Yes
Quantity 6
Grade Type Standard Replacement, Performance
Universal Or Specific Fit Universal
Prop 65 Yes/No Yes
Prop 65 (C, R or CR) CR
Prop 65 - Short Label WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Title 2 HPS Stainless Steel Embossed Hose Clamps Size 40 6pcs Pack 2" - 3" (51mm-76mm)
Country of Origin CN
Condition New
