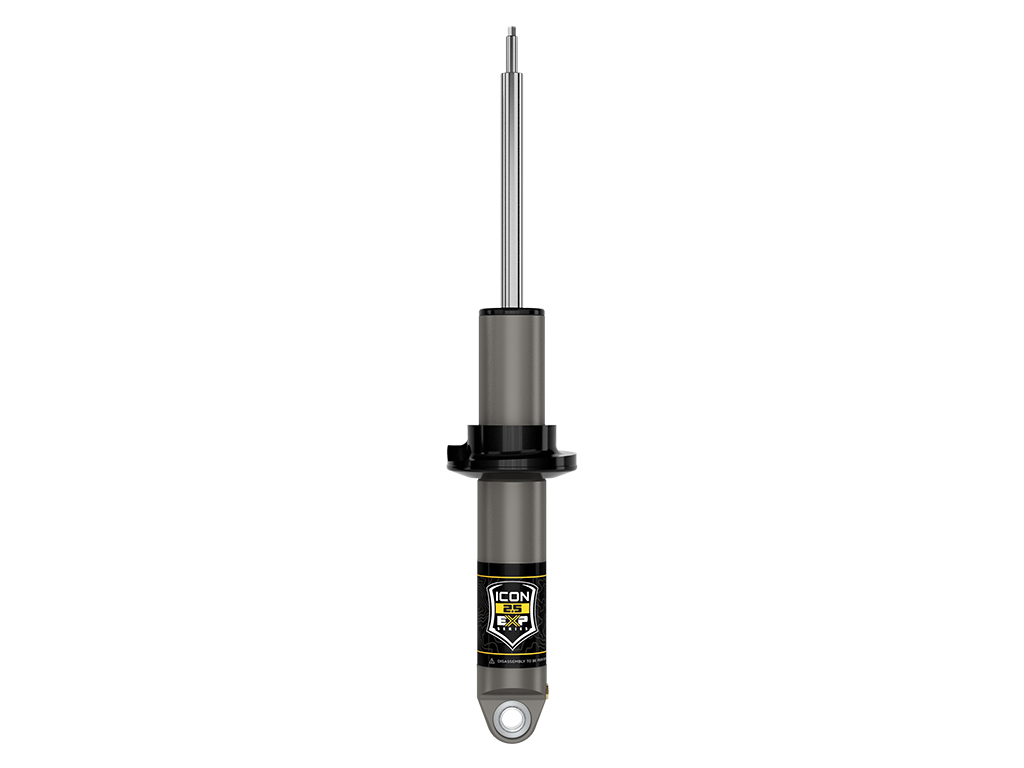

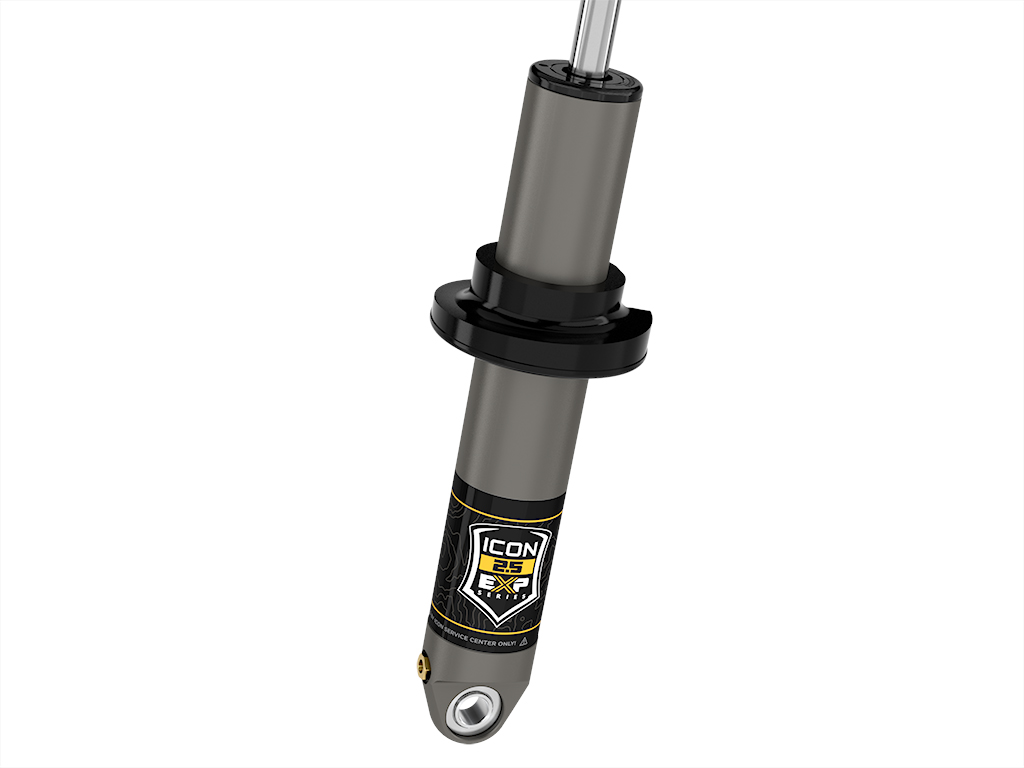

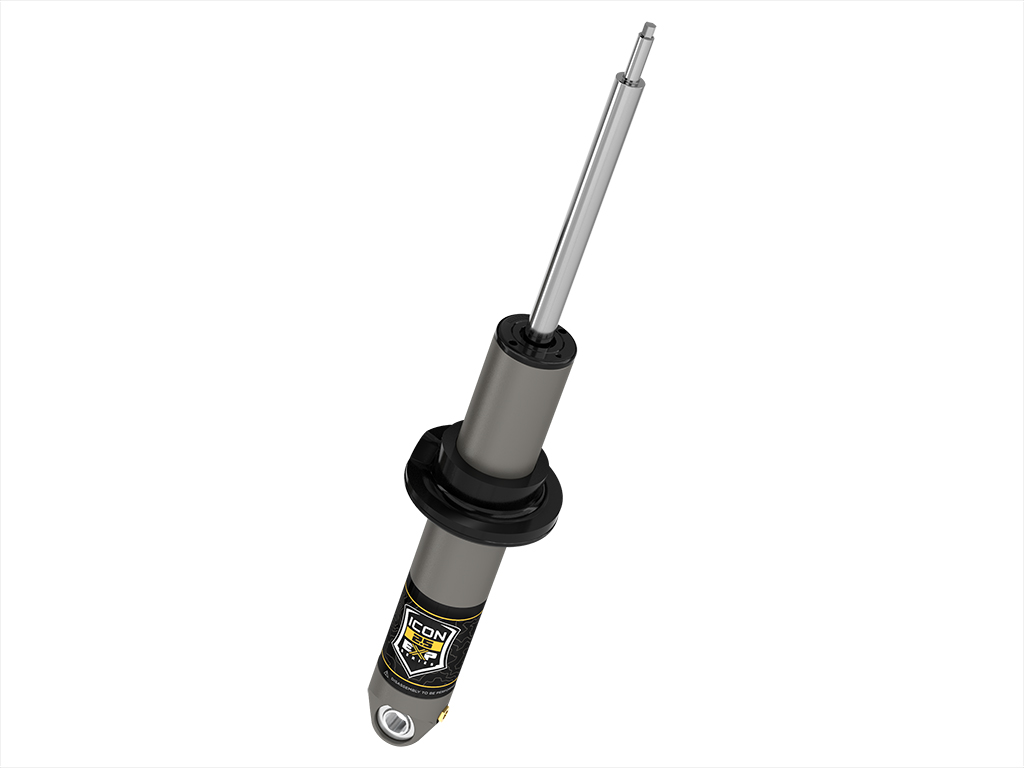

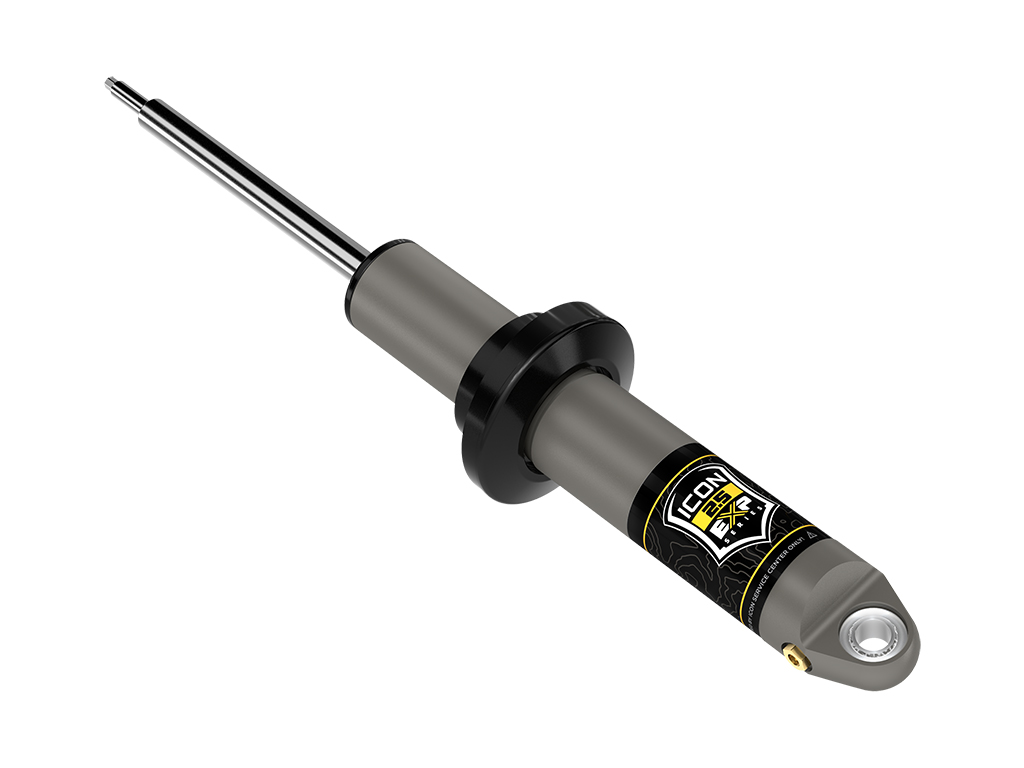

ICON Vehicle Dynamics Coilover - 48611

21-23 BRONCO HOSS 1.0 PKG 2.5 REAR EXP COILOVER

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 48611

Old price: $562.33

Price: $535.55

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

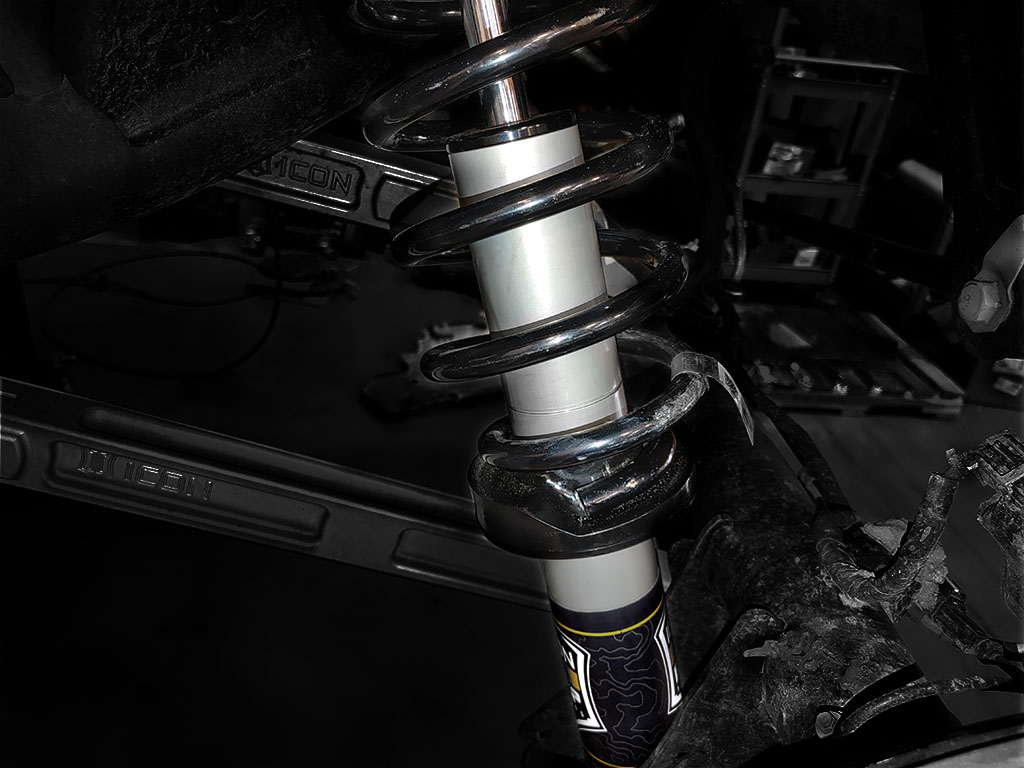

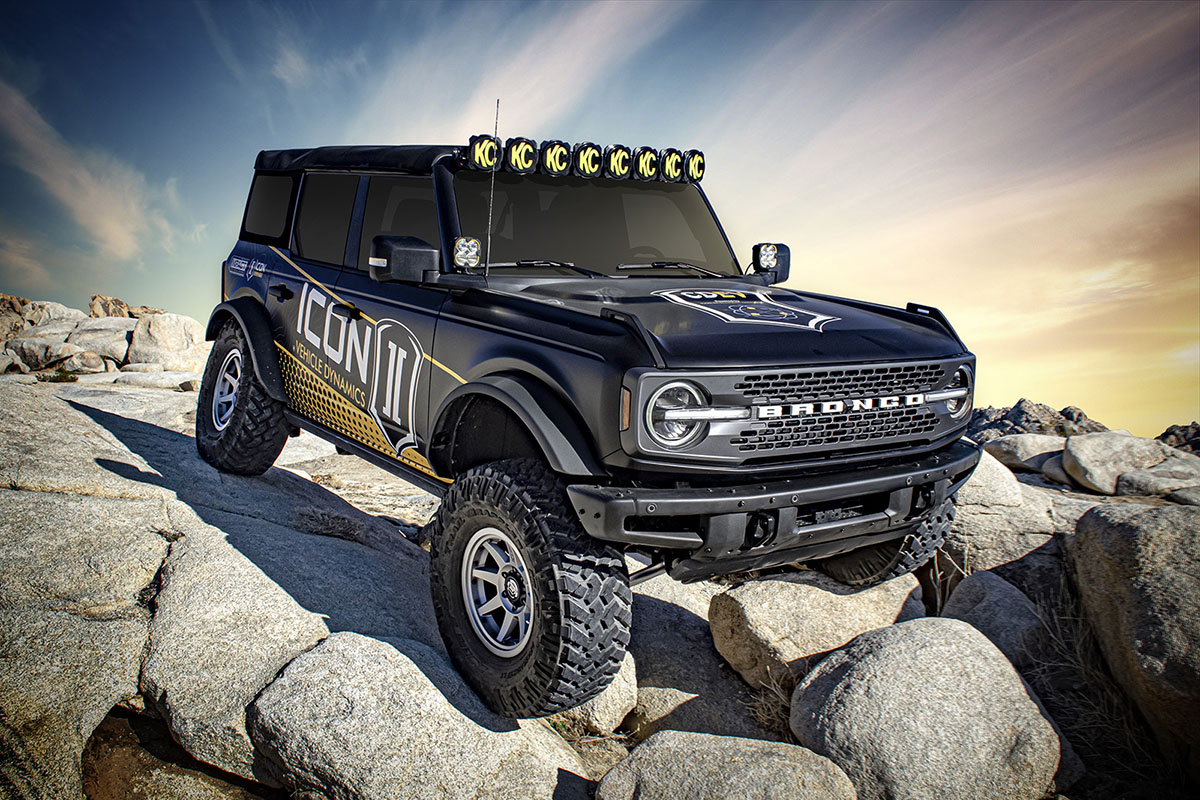

The 2021-2023 Ford Bronco EXP Series rear shock absorbers by ICON Vehicle Dynamics combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Bronco’s factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Add-On Part	44200T - 21-23 BRONCO REAR ADJ TRACK BAR KIT
Adjustable Compression	No
Adjustable Damping	No
Coil-Over Springs Included	No
Active or Passive Suspension	Passive
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
California Prop 65 Warning	Yes
Adjustable Rebound	No
Adjustable Ride Height	Yes
Assembled	No
Body Diameter	2.5
Coil Spring Included	No
Coil Spring Insulator(s) Included	No
Compressed Length	17.2
Cylinder Color	Gray
Cylinder Finish	Hard Anodized
Cylinder Material	Aluminum
Cylinder Outside Diameter	2.5
Damping Type	Oil
Dust Shield Included	No
Extended Length	26.67
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	Yes
Internal Construction Type	Single Tube

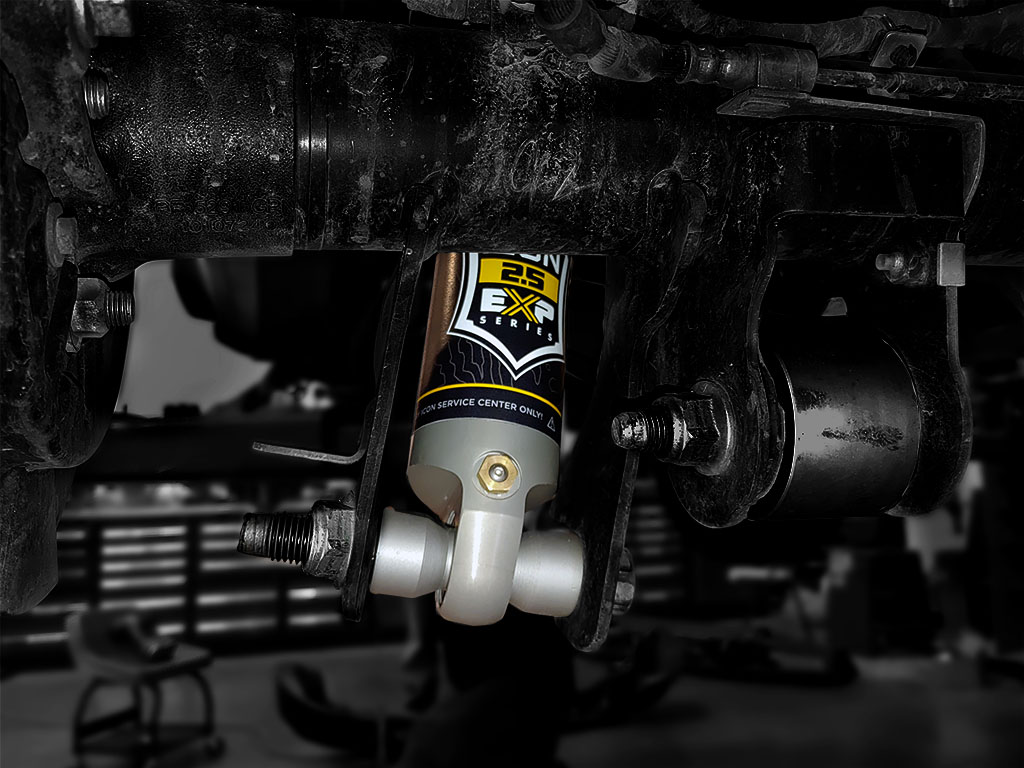

Lower Mount Type	Eyelet
Material	Steel, Aluminum
Maximum Lift	2.25
Maximum Ride Height Raising Distance	2.25
Minimum Lift	1.5
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	35" x 12.50" (37" tire packages require trimming and modifications)
Recommended Aftermarket Wheels	ICON Alloys - 18x9" w/ 6.00" Backspace / 25mm Offset, ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Remote Reservoir	No
Reservoir Style	Internal
Self-Leveling	No
Service Parts	252010 - 2.5 IFP REBUILD KIT
Shaft Diameter	0.875
Shaft Material	Chrome
Shock Absorber Body End Measuring Point	Center of Eylet
Shock Absorber Rod End Measuring Point	Shoulder of Stem
Travel Length	9.47
Upper Mount Type	Stem
Valving Type	Digressive
Country of Origin	US
Condition	New
Quantity per Application	2
