ICON Vehicle Dynamics Coilover - 58671

22-25 TUNDRA/23-25 SEQUOIA FRONT 2.5 EXP COILOVER

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 58671

Old price: $573.25

Price: $545.95

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

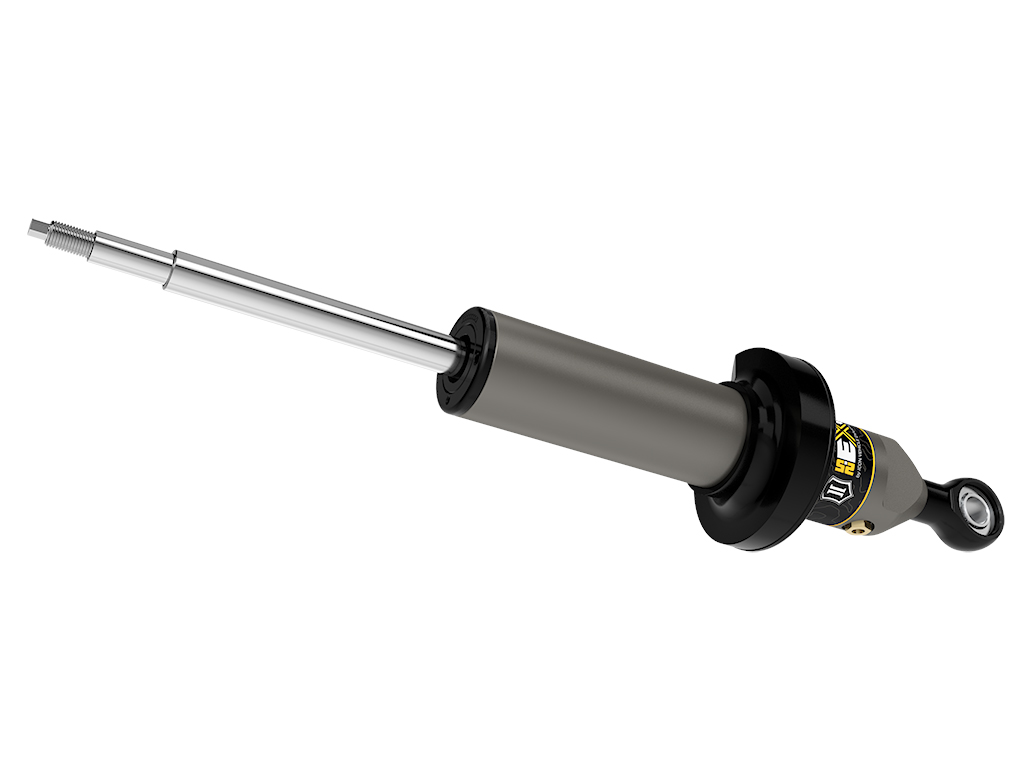

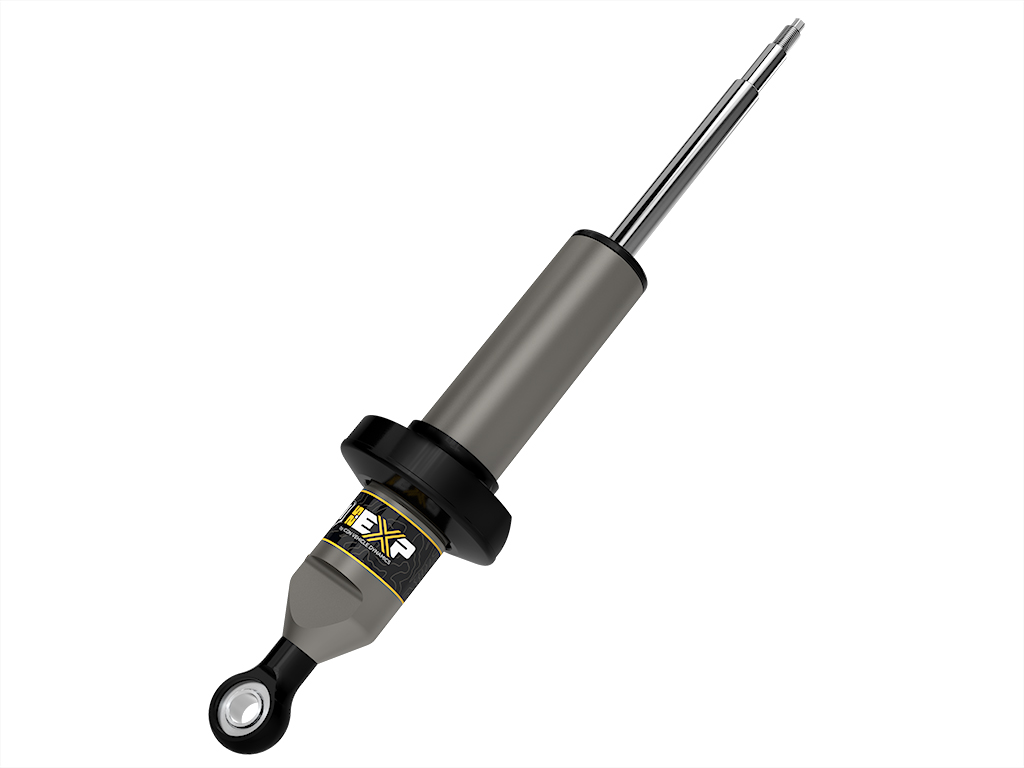

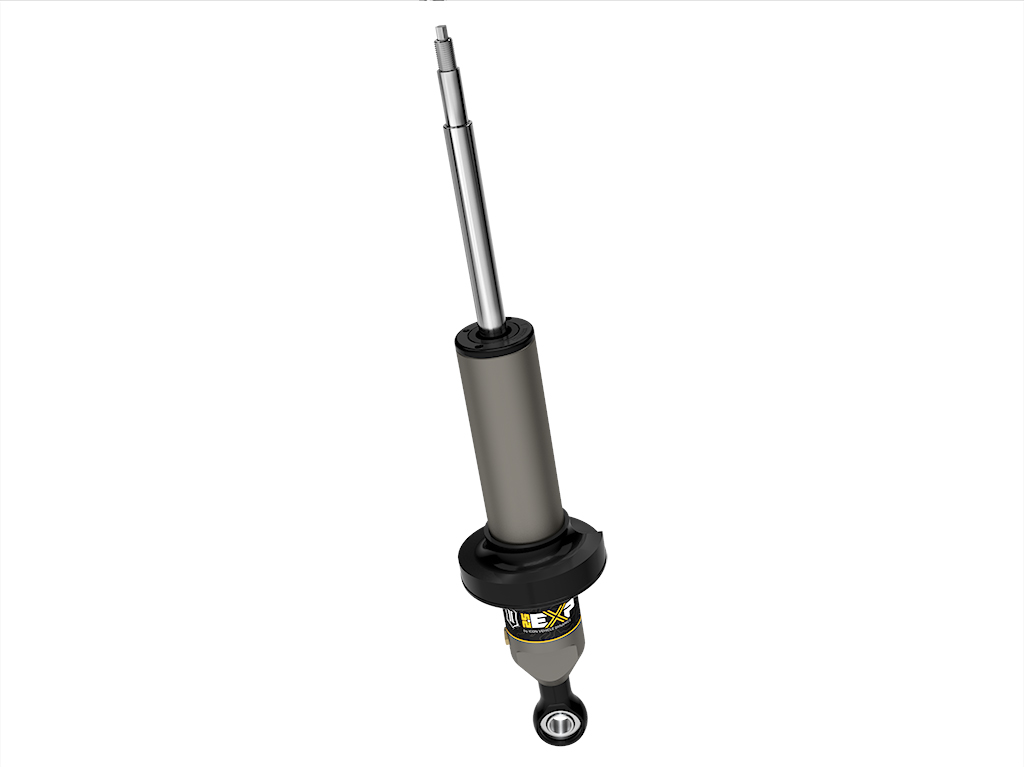

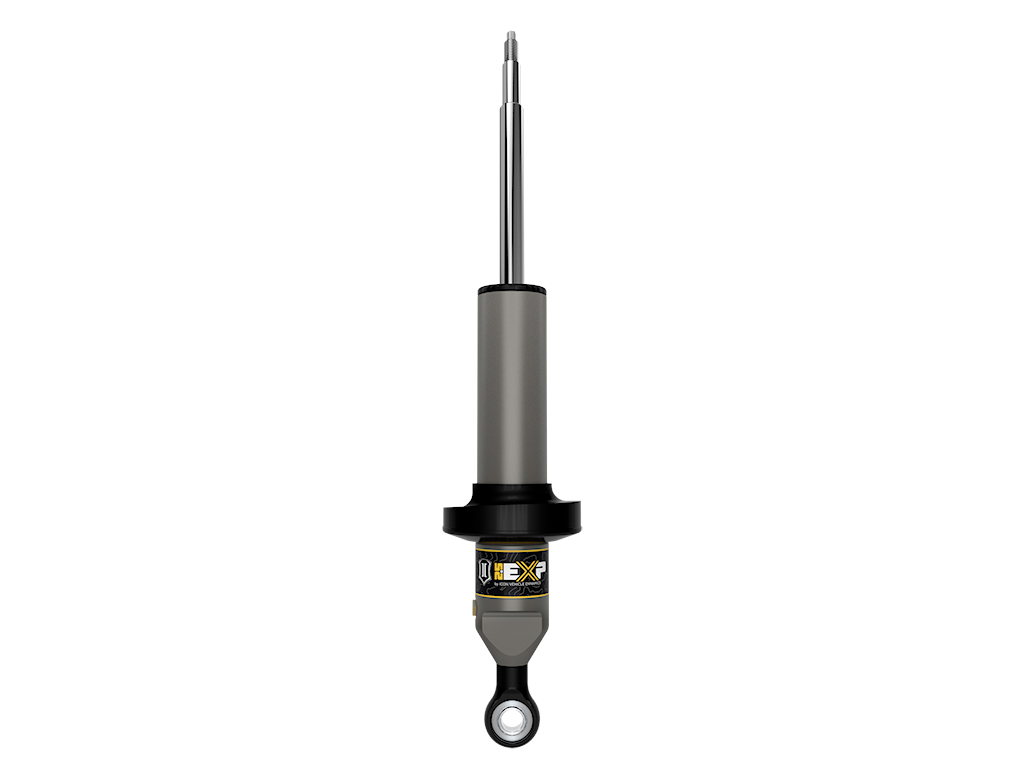

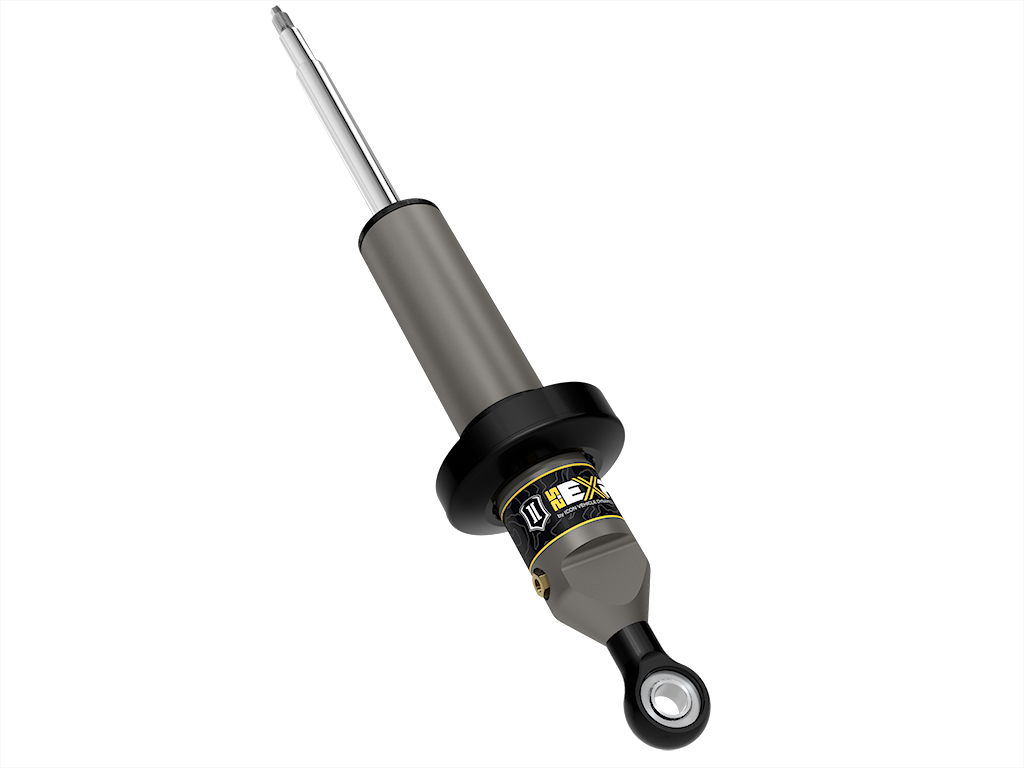

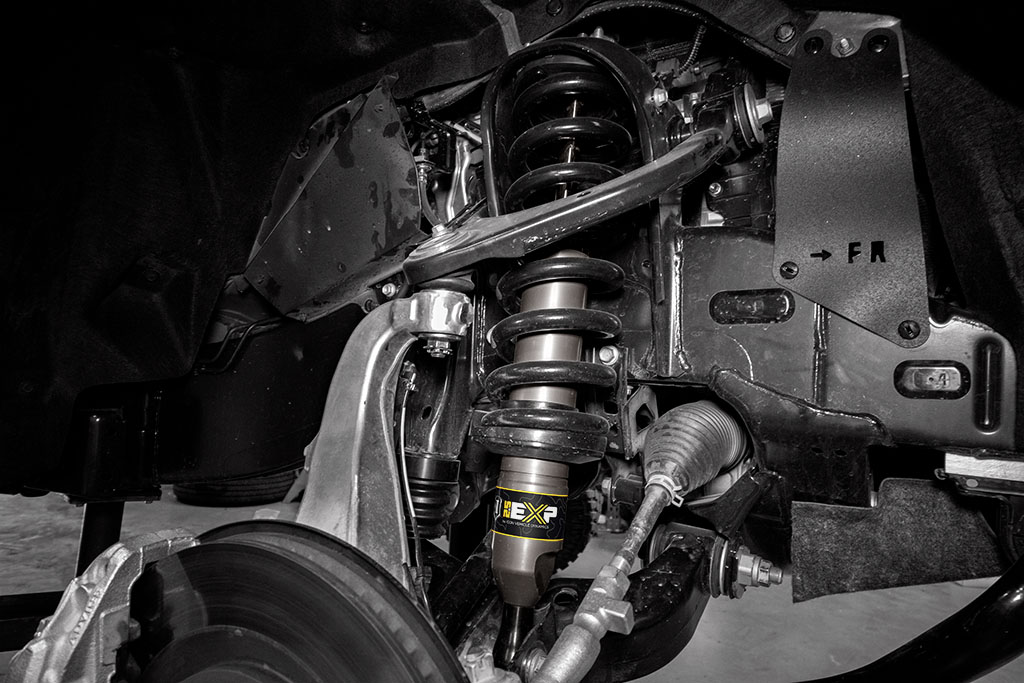

The 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia EXP Series front shock absorbers by ICON Vehicle Dynamics combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the truck’s factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package. EXP Series is based on ICON’s proven 2.5-inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion. The massive 7/8-inch diameter shaft is induction hardened and chrome plated. EXP shocks use the factory shaft-up orientation, with the shaft ends machined to re-use the Tundra’s OE upper shock and spring mounts. The 6061-billet aluminum coil spring seat is CNC machined to fit the molded heavy duty urethane coil spring seat that is specifically designed to fit the vehicle’s OE coil spring. A series of snap-ring grooves machined into the shock body provide easily-selectable front-end ride height adjustment from 0" to 3” of lift over stock. EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Tundra/Sequoia in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
Adjustable Rebound	No
Adjustable Compression	No
Adjustable Damping	No
Add-On Part	55154 - 22-25 TUNDRA/23-25 SEQUOIA SWAY BAR DROP KIT, 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT
Travel Length	5.80
Upper Mount Type	Stem
Valving Type	Digressive
Adjustable Height	Yes
Adjustable Ride Height	Yes
Assembled	No
Body Diameter	2.5
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included	No
Coil Spring Included	No
Coil Spring Insulator(s) Included	No
Compressed Length	15.42
Cylinder Color	Gray
Cylinder Finish	Hard Anodized
Cylinder Material	Aluminum
Cylinder Outside Diameter	2.5
Damping Type	Oil
Dust Shield Included	No
Extended Length	21.21
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	No
Internal Construction Type	Single Tube
Lower Mount Type	Eyelet
Material	Aluminum, Steel
Maximum Lift	3
Maximum Ride Height Raising Distance	3
Minimum Lift	0
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	35" x 12.50" (Minor fender trimming and modifications may be required)
Recommended Aftermarket Wheels	ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset, ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
Remote Reservoir	No
Reservoir Style	Internal
Self-Leveling	No
Service Parts	252010 - 2.5 IFP REBUILD KIT
Shaft Diameter	0.875
Shaft Material	Chrome
Shock Absorber Body End Measuring Point	Center of Eylet
Shock Absorber Rod End Measuring Point	Shoulder of Stem
Country of Origin	US
Condition	New
Quantity per Application	2
