ICON Vehicle Dynamics Coilover - 71607

19-23 GM 1500 FRONT 2.5 EXP COILOVER

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 71607

Old price: $545.95

Price: $519.95

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

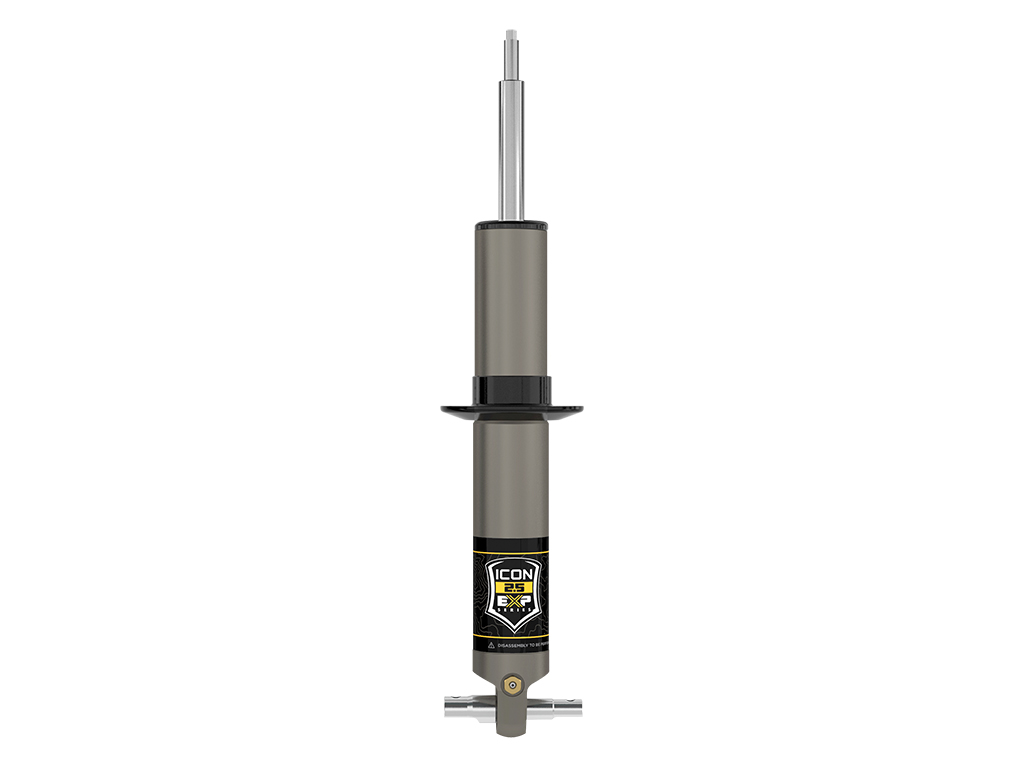

EXP Series for the 2019-2023 GM 1500 is based on ICON’s proven 2.5-inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion. The massive 7/8-inch diameter shaft is induction hardened and chrome plated. EXP shocks use the factory shaft-up orientation.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
Adjustable Compression	No
Adjustable Damping	No
Adjustable Rebound	No
Adjustable Ride Height	Yes
Assembled	No
Body Diameter	2.5
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Spring Included	No
Coil Spring Insulator(s) Included	No
Compressed Length	16.75
Cylinder Color	Gray
Cylinder Finish	Hard Anodized
Cylinder Material	Aluminum
Cylinder Outside Diameter	2.5
Damping Type	Oil
Dust Shield Included	No
Extended Length	22.11
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	No
Internal Construction Type	Single Tube
Lower Mount Type	Bar Pin
Material	Aluminum, Steel
Maximum Lift	3.75
Maximum Ride Height Raising Distance	3.75
Minimum Lift	2.375
Remote Reservoir	No
Reservoir Style	Internal
Self-Leveling	No
Service Parts	252010 - 2.5 IFP REBUILD KIT
Shaft Diameter	0.875
Shaft Material	Chrome
Shock Absorber Body End Measuring Point	Flat on Bar Pin
Shock Absorber Rod End Measuring Point	Shoulder of Stem
Travel Length	5.37
Upper Mount Type	Mounting Plate
Valving Type	Digressive
Country of Origin	US
Condition	New
Quantity per Application	2
