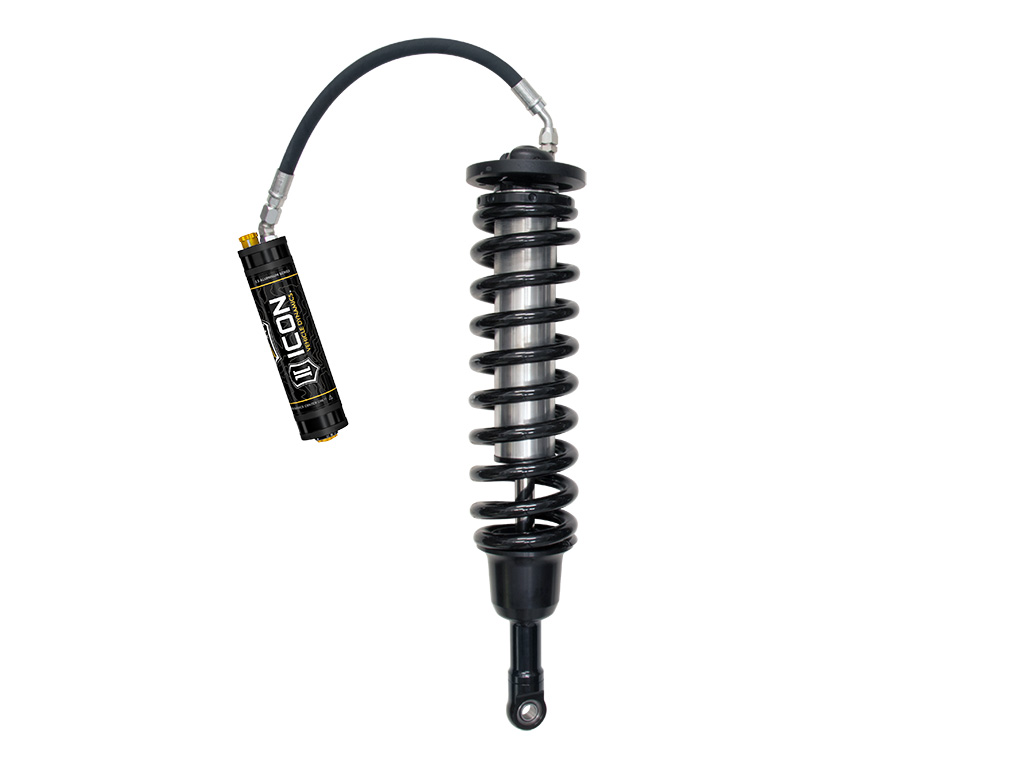

ICON Vehicle Dynamics Coilover - 95000L

Name: ICON Vehicle Dynamics Coilover - 95000L
SKU: 95000L
Price: 1765.29 USD
Availability: InStock

10-14 RAPTOR FRONT 3.0 VS COILOVER RR CDCV DRVR

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 95000L

Old price: $1,853.55

Price: $1,765.29

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

ICON Vehicle Dynamics is known for its extensive research and development put into every product, the revolutionary outcome of this research is what sets ICON apart from the off-road industry standard. The Ford SVT Raptor was the first production truck, designed and built, to bridge the gap between a standard street "pickup truck" and an off-road pre-runner. ICON Vehicle Dynamics new 3.0 Performance Coil-Over Shocks for the SVT Raptor were rigorously tested both on- and off-road for several months to enhance the overall performance and ride quality.

Note: Factory Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_22	1
AAP_UDA_4	55
AAP_UDA_12	EA
Adjustable Rebound	No
Adjustable Ride Height	Yes
Assembled	Yes
Body Diameter	3
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included	Yes
Coil Spring Included	Yes
Coil Spring Insulator(s) Included	No
Compressed Length	20.24
Cylinder Color	Gray
Cylinder Finish	Ceramic Coated
Cylinder Material	Steel
Cylinder Outside Diameter	3
Damping Adjustment Type	Manual
Damping Type	Oil
Dust Shield Included	No
Extended Length	27.45
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	Yes
Internal Construction Type	Single Tube
Lower Mount Type	Eyelet
Material	Aluminum, Steel
Maximum Lift	3.5
Maximum Ride Height Raising Distance	3.5
Minimum Lift	1
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels	ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset, ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset, ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
Remote Reservoir	Yes
Reservoir Style	Remote
Self-Leveling	No
Service Parts	254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 252003 - SEAL INSTALL TOOL 2.5/3.0, 302005 - 3.0 ICON REBUILD KIT (ALL), 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 611019 - COILOVER HARDWARE KIT PAIR
Shaft Diameter	1
Shaft Material	Chrome
Shock Absorber Body End Measuring Point	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point	Center of Eylet
Spring Color	Black
Spring Material	Steel
Spring Rate	600
Spring Rate Type	Linear
Travel Length	7.21
Upper Mount Type	Mounting Plate
Valving Type	Compression: Linear, Rebound: Digressive
Active or Passive Suspension	Passive
Add-On Part	198001 - BILLET SPANNER WRENCH KIT, 191010 - ICON RAPTOR 3.0 COIL WRAP W/LOGO PAIR, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 252012 - -4 TO -10 HOSE SHIELD KIT
Adjustable Compression	Yes
Adjustable Damping	Yes
Country of Origin	US
Condition	New
