ICON Vehicle Dynamics Suspension Control Arm Kit - 164501

05-22 FSD FRONT UPPER LINKS

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 164501

Old price: $1,007.10

Price: $959.15

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

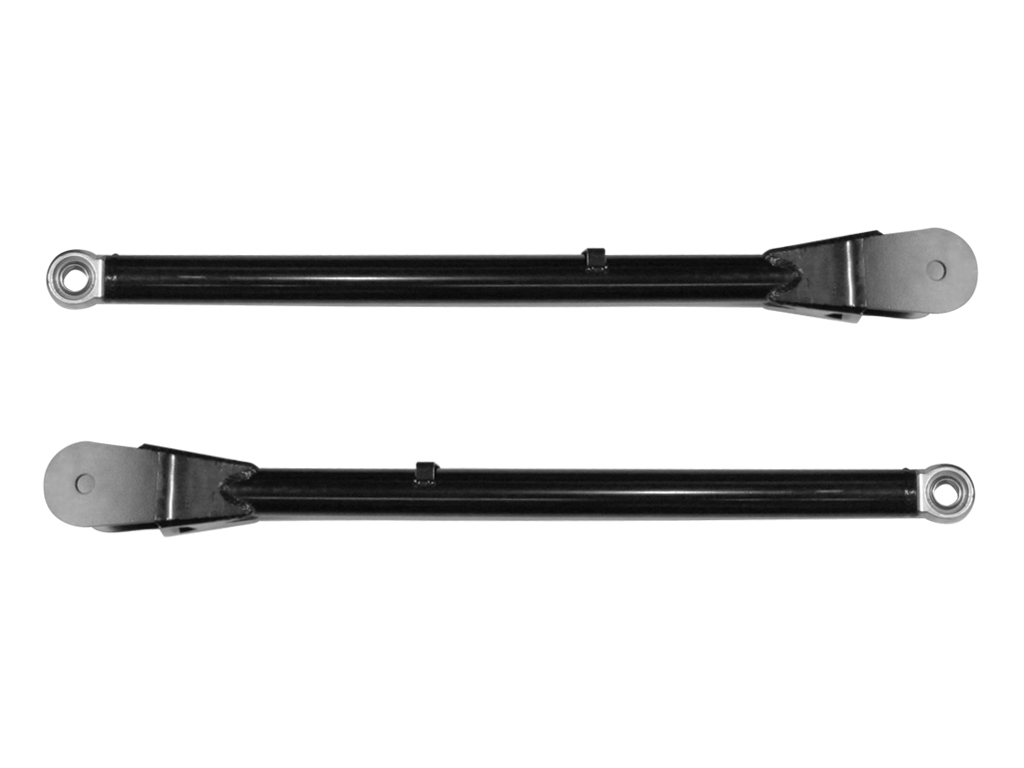

These upper links are an essential component of the ICON 2005-2022 Ford Super Duty 4-Link Conversion System. This 4-Link system not only gives your Ford Super Duty an aggressive look, it enhances the articulation of the front suspension by eliminating bushing bind and improves handling of the truck by maintaining consistent caster angles through the entirety of the front suspension travel range. The large, deflective radius arm bushings are replaced with competition grade, PTFE lined spherical bearings in each link. This harder surface minimizes deflection to further increase the overall handling characteristics for maximum predictability and suspension responsiveness. Additionally, the ICON double adjusters in the lower links allows tuning of caster angle while the links are installed on the vehicle, easing the front-end alignment process.

Note: TECH NOTE: Only fits 2005-2022 Ford Super Duty 4WD models

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Adjustable	No
Bushing Material	Rod End Bearing
Tubing Material	Steel
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
California Prop 65 Warning	Yes
Service Parts	614512 - 64031/214030 BEARING AND RET RING KIT
Tubing Color	Black
Grade Type	Performance
Country of Origin	US
Condition	New
