ICON Vehicle Dynamics Suspension Control Arm Kit - 58552GDJ

24-25 TACOMA/24-25 LC250/24-25 GX550/25 T4R BILLET UCA DJ PRO KIT GOLD ANO

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 58552GDJ

Old price: $1,553.95

Price: $1,479.95

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

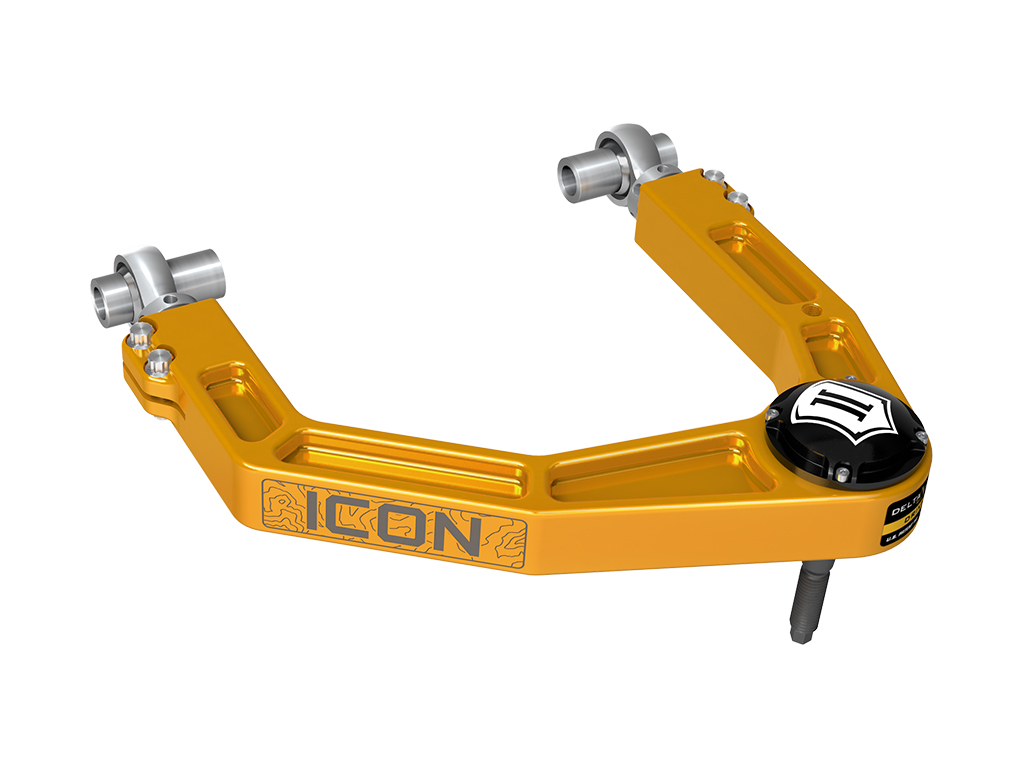

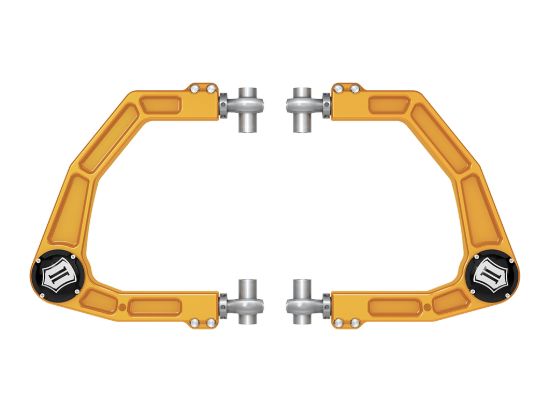

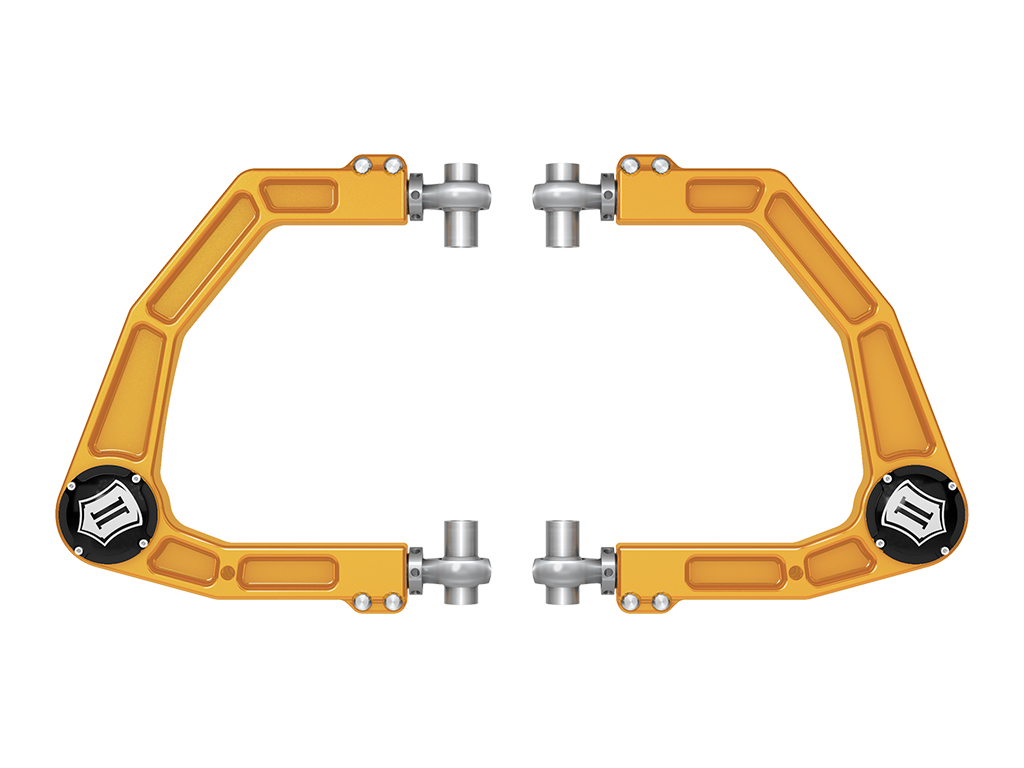

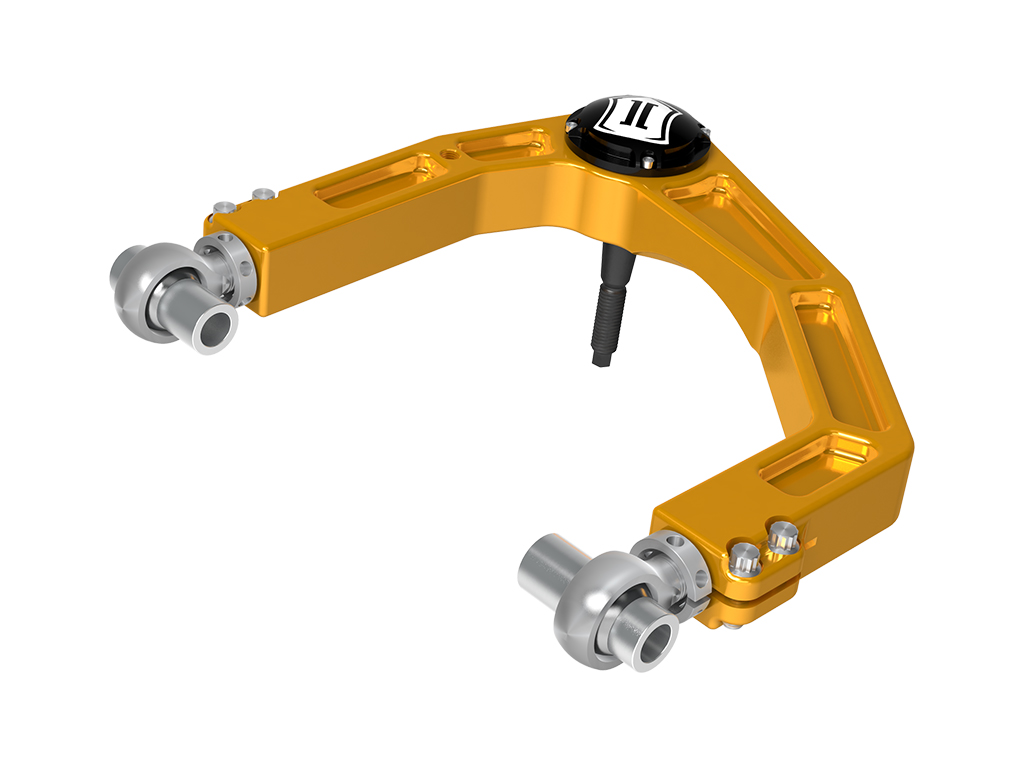

This ICON billet aluminum upper control arm kit is designed to improve the overall performance of the 2024-2025 Toyota Tacoma, 2024-2025 Toyota Land Cruiser 250 Series, 2025 Toyota 4Runner, and the 2024-2025 Lexus GX550 with corrected front-end geometry, increased camber and caster adjustment, and improved suspension component clearance. Constructed of CNC machined 6061 billet aluminum utilizing a hybrid H-beam cross-section that is light-weight and resists bending forces better than tubular arms. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. FK Rod End 3/4” Heim joints provide precise and smooth function throughout the range of travel while ICON’s signature double adjuster sleeve allows for on-vehicle camber and caster adjustment. An all-new gold anodized finish matches ICON shock absorbers for a splash of color in the wheel well and provide a custom look to any build. Included with all components and hardware necessary for a complete install, these billet UCAs are the perfect front end upgrade for your Toyota Tacoma, Toyota Land Cruiser, Toyota 4Runner, or Lexus GX550.

Note: Factory Wheels & Tires Fitment: Yes

Watch product video

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Add-On Part	191013 - NIPPLE GREASING ADAPTER KIT, 191014 - .25" COLLAR SPANNER PIN WRENCH
Adjustable	Yes
Adjustable Control Arm	yes
Ball Joint Included	Yes
Ball Joint Mounting Type	Press In
Ball Joint Stud Type	Threaded
Bushing Color	Silver
Bushing Material	Rod End Bearing
Bushings Included	Yes
Recommended Aftermarket Tires	33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Material	Aluminum
Control Arm Material	Aluminum
Finish	Anodized
End 2 Type	BALL JOINT
Construction	Billet
Control Arm Construction	Billet
Control Arm Color	Gold
Color	Gold
Mounting Bracket Included	No
Quantity	Pair
Suspension Grade Type	Performance
Grade Type	Performance
End 1 Type	Rod End Bearing
Suspension Type	Spring
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Pre-Assembled	Yes
Reinforced	Yes
Pre-Greased	Yes
Grease Fitting Included	Yes
Mounting Hardware Included	Yes
California Prop 65 Warning	Yes
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Wheels	ICON Alloys - 18" x 9" with 6.6" Backspace / 40mm Offset, ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Set	Yes
Attachments Included	No
Country of Origin	US
Condition	New
