ICON Vehicle Dynamics Suspension Lift Kit - K53201TS

Name: ICON Vehicle Dynamics Suspension Lift Kit - K53201TS
SKU: K53201TS
Price: 7230.16 USD
Availability: OutOfStock

22-25 TUNDRA 2-3.5" STAGE 11 SUSPENSION SYSTEM TUBULAR CDCV (TRD)

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K53201TS

Old price: $7,591.66

Price: $7,230.16

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

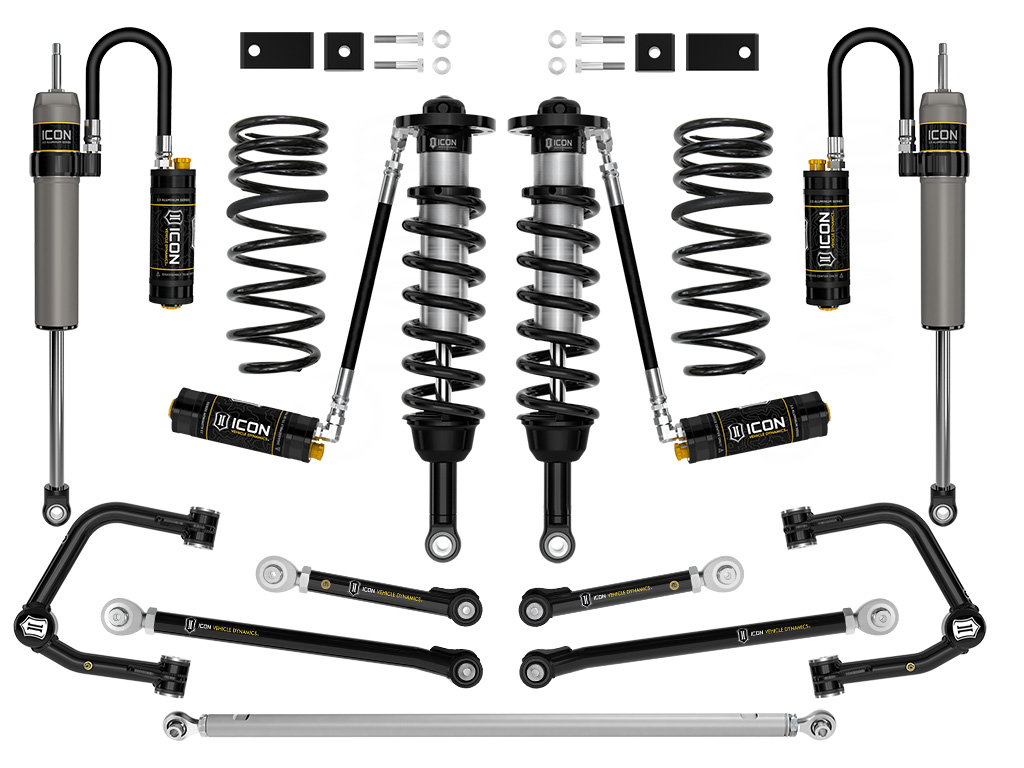

The ICON Vehicle Dynamics Stage 11 complete suspension system for the 2022-2025 Toyota Tundra builds upon the Stage 10 system with the addition of triple rate rear coils springs and an adjustable rear track bar. This system offers improved on- and off-road performance with adjustable compression damping, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the billet aluminum rear links, a 2.5 Series CDCV remote reservoir front coilover shock and tubular front upper control arm combo is included along with a front sway bar drop kit and 2.5 Aluminum Series CDCV rear remote reservoir shocks.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Adjustable Rebound	No
Active or Passive Suspension	Passive
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Bushings Included	Yes
Adjustable Compression	Yes
Adjustable Control Arm	yes
Adjustable Damping	Yes
California Prop 65 Warning	Yes
Minimum Lift Rear	.75
Maximum Lift Rear	1.25
Recommended Aftermarket Wheels	17x8.5" w/ 5.75" Backspace / 25mm Offset
Coils Quantity Front	2
Coils Quantity Rear	2
Coil Quantity Front	2
Minimum Lift Front	2
Front Shock Body Diameter	2.5
Rear Shock Body Diameter	2.5
Maximum Lift	3.5
Maximum Lift Front	3.5
Recommended Aftermarket Tires	35" x 12.50" (Minor fender trimming and modifications may be required)
Spring Color	Black
Damping Adjustment Type	Manual
Grade Type	Performance
Rear Spring Rate Type	Progressive Triple Rate
Front Reservoir Style	Remote
Rear Reservoir Style	Remote
Reservoir Style	Remote
Spring Material	Steel
Mounting Hardware Included	Yes
Shocks Included	Yes
OEM Wheels & Tires Fitment	Yes
Front Spring Rate Type	Linear
Add-On Part	198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 55153 - 22-25 TUNDRA/23-25 SEQUOIA AIR RIDE/AUTO HEADLIGHT BRACKET KIT, 191013 - NIPPLE GREASING ADAPTER KIT, 252012 - -4 TO -10 HOSE SHIELD KIT, 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT, 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 198001 - BILLET SPANNER WRENCH KIT
Country of Origin	US
Condition	New
