ICON Vehicle Dynamics Suspension Lift Kit - K53202

Name: ICON Vehicle Dynamics Suspension Lift Kit - K53202
SKU: K53202
Price: 7263.76 USD
Availability: OutOfStock

22-25 TUNDRA 1.25-3.5" STAGE 12 SUSPENSION SYSTEM BILLET

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K53202

Old price: $7,626.96

Price: $7,263.76

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

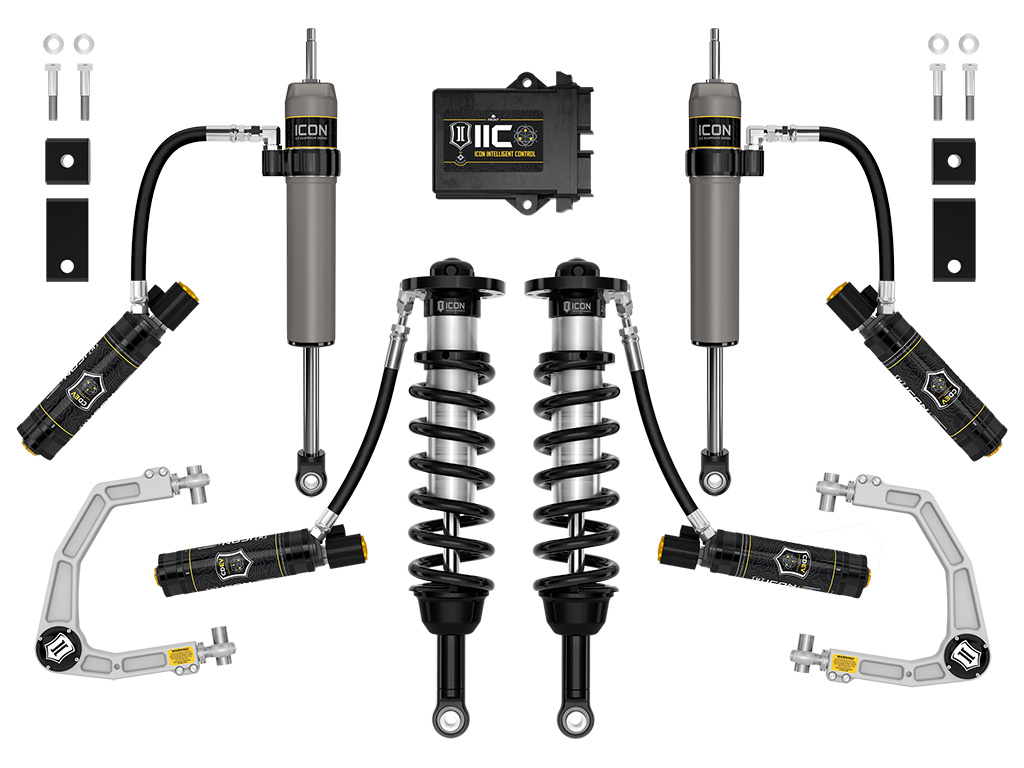

The ICON Vehicle Dynamics Stage 12 complete suspension system for the 2022-2025 Toyota Tundra Is the first stage to include CDEV equipped 2.5 Series coilovers and rear shocks. This system offers improved on- and off-road performance, with active electronic shock damping adjustment, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
Active or Passive Suspension	Active
Adjustable Rebound	No
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Bushings Included	Yes
Adjustable Compression	Yes
Adjustable Control Arm	yes
Adjustable Damping	Yes
California Prop 65 Warning	Yes
Front Shock Body Diameter	2.5
Rear Shock Body Diameter	2.5
Maximum Lift	3.5
Maximum Lift Front	3.5
Recommended Aftermarket Tires	35" x 12.50" (Minor fender trimming and modifications may be required)
Spring Color	Black
Damping Adjustment Type	Electronic
Grade Type	Performance
Front Reservoir Style	Remote
Rear Reservoir Style	Remote
Reservoir Style	Remote
Spring Material	Steel
Mounting Hardware Included	Yes
Shocks Included	Yes
OEM Wheels & Tires Fitment	Yes
Front Spring Rate Type	Linear
Coil Quantity Front	2
Add-On Part	198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 191013 - NIPPLE GREASING ADAPTER KIT, 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT, 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT, 56112 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 REAR FOAM BUMP STOP KIT, 198001 - BILLET SPANNER WRENCH KIT, 252012 - -4 TO -10 HOSE SHIELD KIT, 56113 - 22-24 TUNDRA/23-24 SEQUOIA FRONT FOAM BUMP STOP KIT, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 191014 - .25" COLLAR SPANNER PIN WRENCH, 56111 - 22-25 TUNDRA REAR HYD BUMP STOP KIT
Coils Quantity Front	2
Recommended Aftermarket Wheels	17x8.5" w/ 5.75" Backspace / 25mm Offset
Minimum Lift Front	.75
AAP_UDA_4	55
AAP_UDA_22	1
AAP_UDA_12	EA
Country of Origin	US
Condition	New
