ICON Vehicle Dynamics Suspension Lift Kit - K53213S

Name: ICON Vehicle Dynamics Suspension Lift Kit - K53213S
SKU: K53213S
Price: 10751.61 USD
Availability: OutOfStock

22-25 TUNDRA 1.25-3.25" STAGE 3 3.0 SUSPENSION SYSTEM BILLET CDCV (TRD)

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K53213S

Old price: $11,289.18

Price: $10,751.61

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

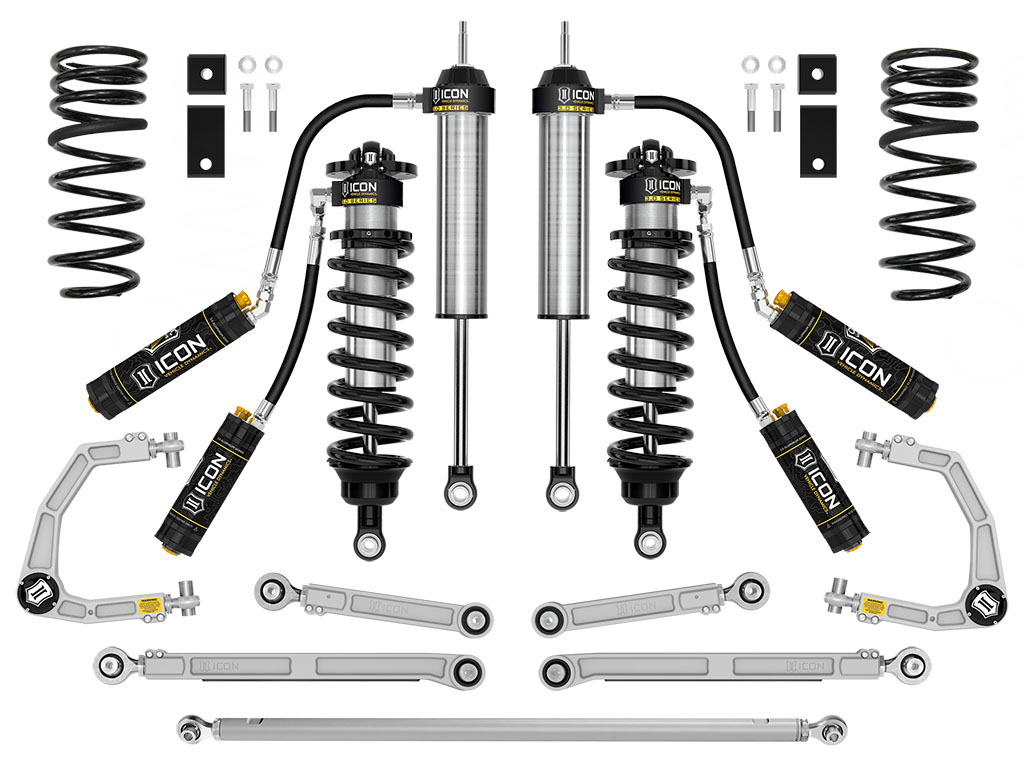

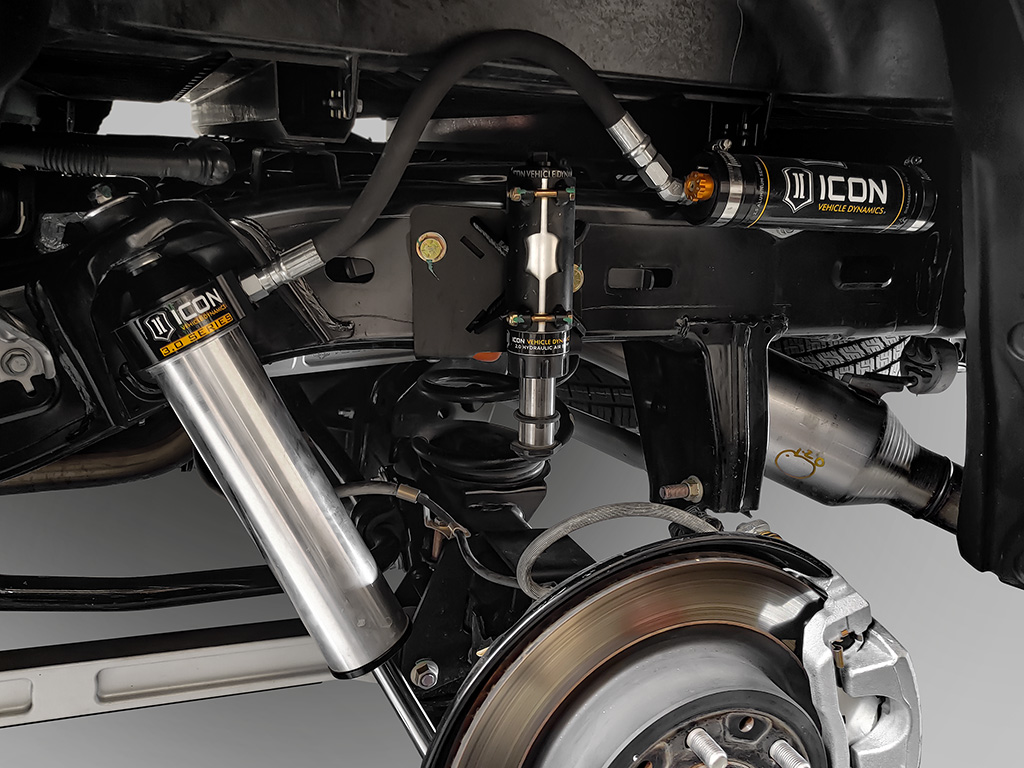

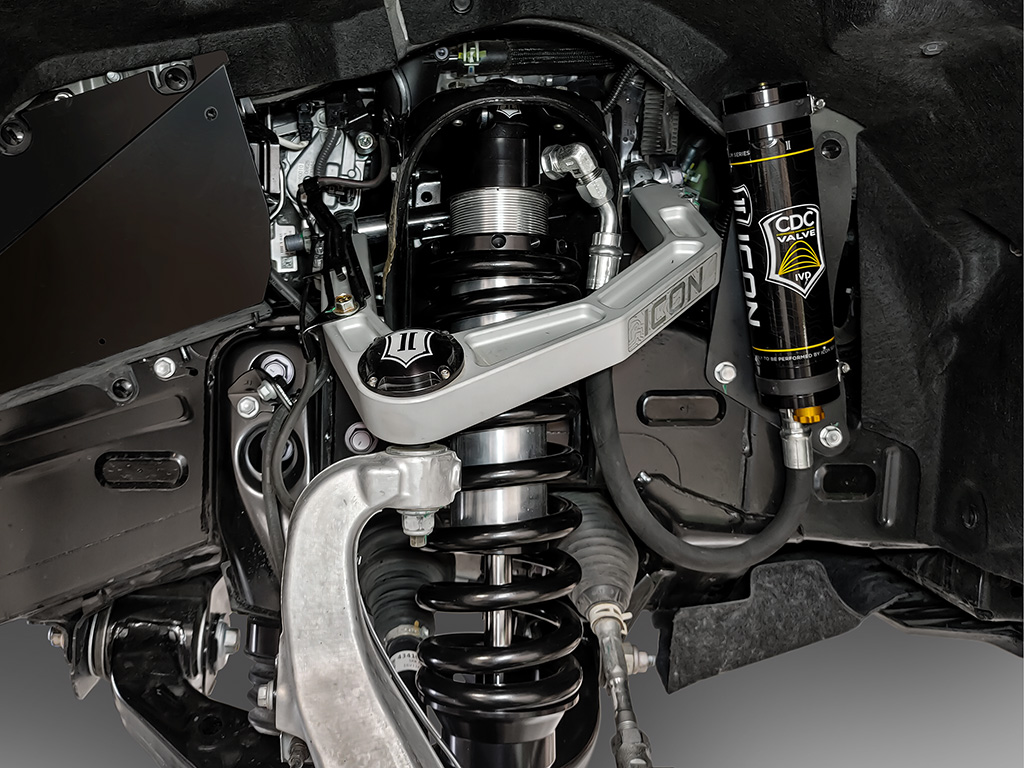

The ICON Vehicle Dynamics Stage 3 3.0 complete suspension system for the 2022-2025 Toyota Tundra builds upon the Stage 2 3.0 suspension system with the addition of triple rate rear coils springs and an adjustable rear track bar. To compliment the coils and track bar 3.0 Series CDCV front coilovers are included along with billet front upper control arms, a billet rear upper/lower link combo, a front sway bar drop kit, and 3.0 Series CDCV rear shocks. This system offers improved on- and off-road performance with adjustable compression damping, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Adjustable Rebound	No
Active or Passive Suspension	Passive
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Bushings Included	Yes
Adjustable Compression	Yes
Adjustable Control Arm	yes
Adjustable Damping	Yes
California Prop 65 Warning	Yes
Minimum Lift Front	.75
Rear Shock Body Diameter	3
Maximum Lift	3.25
Maximum Lift Front	3.25
Spring Color	Black
Coil Spring End 1 Type	Closed
Coil Spring End 2 Type	Closed
Damping Adjustment Type	Manual
Grade Type	Performance
Rear Spring Rate Type	Progressive Triple Rate
Front Reservoir Style	Remote
Rear Reservoir Style	Remote
Minimum Lift Rear	.75
Maximum Lift Rear	1.25
Add-On Part	198001 - BILLET SPANNER WRENCH KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 55153 - 22-25 TUNDRA/23-25 SEQUOIA AIR RIDE/AUTO HEADLIGHT BRACKET KIT, 191014 - .25" COLLAR SPANNER PIN WRENCH, 191010 - ICON RAPTOR 3.0 COIL WRAP W/LOGO PAIR, 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT, 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT, 252012 - -4 TO -10 HOSE SHIELD KIT
Coils Quantity Front	2
Front Spring Rate Type	Linear
Coils Quantity Rear	2
Coil Quantity Front	2
Front Shock Body Diameter	3
Reservoir Style	Remote
Spring Material	Steel
Mounting Hardware Included	Yes
Shocks Included	Yes
Country of Origin	US
Condition	New
