ICON Vehicle Dynamics Suspension Lift Kit - K53216TS

Name: ICON Vehicle Dynamics Suspension Lift Kit - K53216TS
SKU: K53216TS
Price: 10571.46 USD
Availability: OutOfStock

22-25 TUNDRA 2-3.25" STAGE 6 3.0 SUSPENSION SYSTEM TUBULAR (TRD)

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K53216TS

Old price: $11,100.03

Price: $10,571.46

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

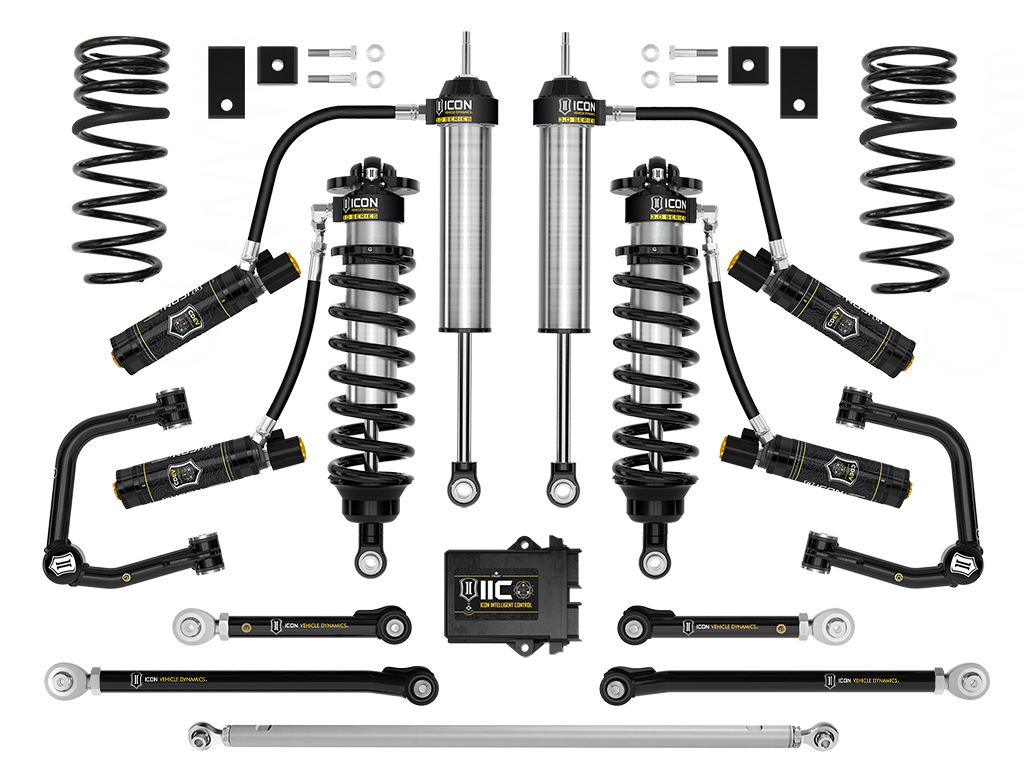

The ICON Vehicle Dynamics Stage 6 3.0 complete suspension system for the 2022-2025 Toyota Tundra builds upon the Stage 5 3.0 suspension system with the addition of triple rate rear coil springs and an adjustable rear track bar. To compliment the rear coils and track bar, 3.0 Series CDEV front coilovers are included along with tubular front upper control arms, a billet rear upper/lower link combo, a front sway bar drop kit, and 3.0 Series CDEV rear shocks. This system offers improved on- and off-road performance with adjustable compression damping, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
Coils Quantity Front	2
Coil Quantity Front	2
Active or Passive Suspension	Active
Coil Spring End 1 Type	Closed
Coil Spring End 2 Type	Closed
AAP_UDA_12	EA
Adjustable Damping	Yes
California Prop 65 Warning	Yes
Minimum Lift Rear	.75
Maximum Lift Rear	1.25
Coils Quantity Rear	2
Minimum Lift Front	2
Front Shock Body Diameter	3
Rear Shock Body Diameter	3
Maximum Lift	3.25
AAP_UDA_22	1
AAP_UDA_4	55
Adjustable Rebound	No
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Bushings Included	Yes
Adjustable Compression	Yes
Adjustable Control Arm	yes
Maximum Lift Front	3.25
Reservoir Style	Remote
Spring Material	Steel
Mounting Hardware Included	Yes
Shocks Included	Yes
Spring Color	Black
Add-On Part	198001 - BILLET SPANNER WRENCH KIT, 191013 - NIPPLE GREASING ADAPTER KIT, 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT, 191014 - .25" COLLAR SPANNER PIN WRENCH, 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT, 191010 - ICON RAPTOR 3.0 COIL WRAP W/LOGO PAIR, 252012 - -4 TO -10 HOSE SHIELD KIT, 55153 - 22-25 TUNDRA/23-25 SEQUOIA AIR RIDE/AUTO HEADLIGHT BRACKET KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Damping Adjustment Type	Electronic
Grade Type	Performance
Rear Spring Rate Type	Progressive Triple Rate
Front Reservoir Style	Remote
Rear Reservoir Style	Remote
Front Spring Rate Type	Linear
Country of Origin	US
Condition	New
