ICON Vehicle Dynamics Suspension Lift Kit - K53234TS

Name: ICON Vehicle Dynamics Suspension Lift Kit - K53234TS
SKU: K53234TS
Price: 3502.76 USD
Availability: OutOfStock

23-25 SEQUOIA 3-4.5" STAGE 4 SUSPENSION SYSTEM TUBULAR (TRD)

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K53234TS

Old price: $3,677.89

Price: $3,502.76

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

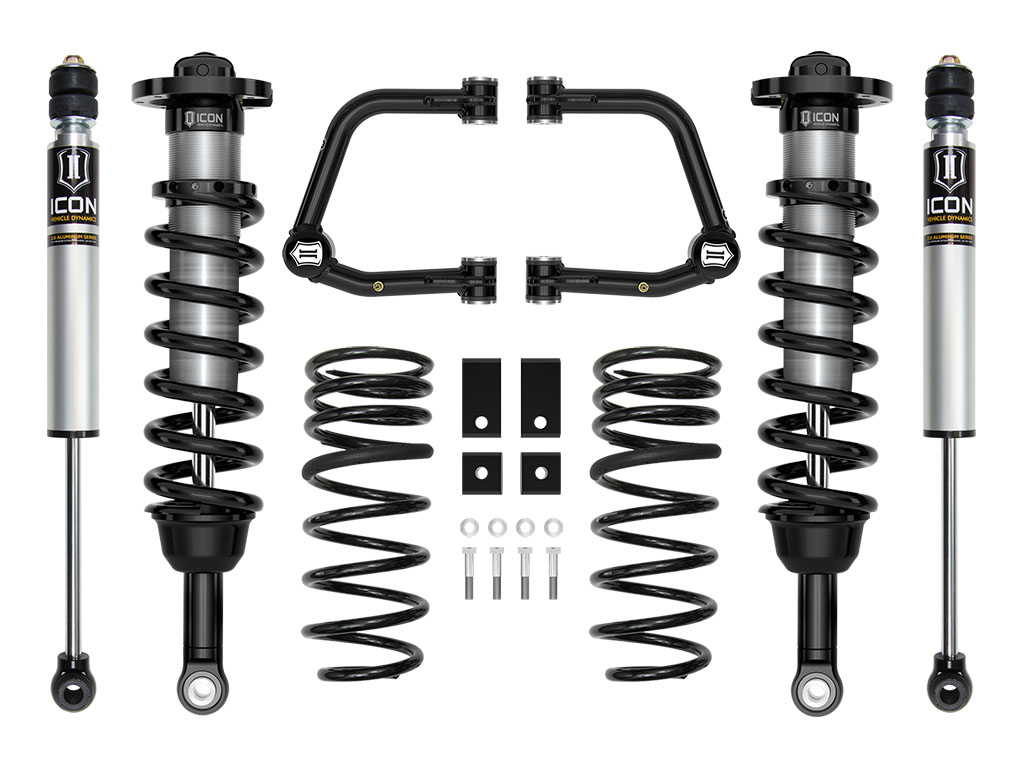

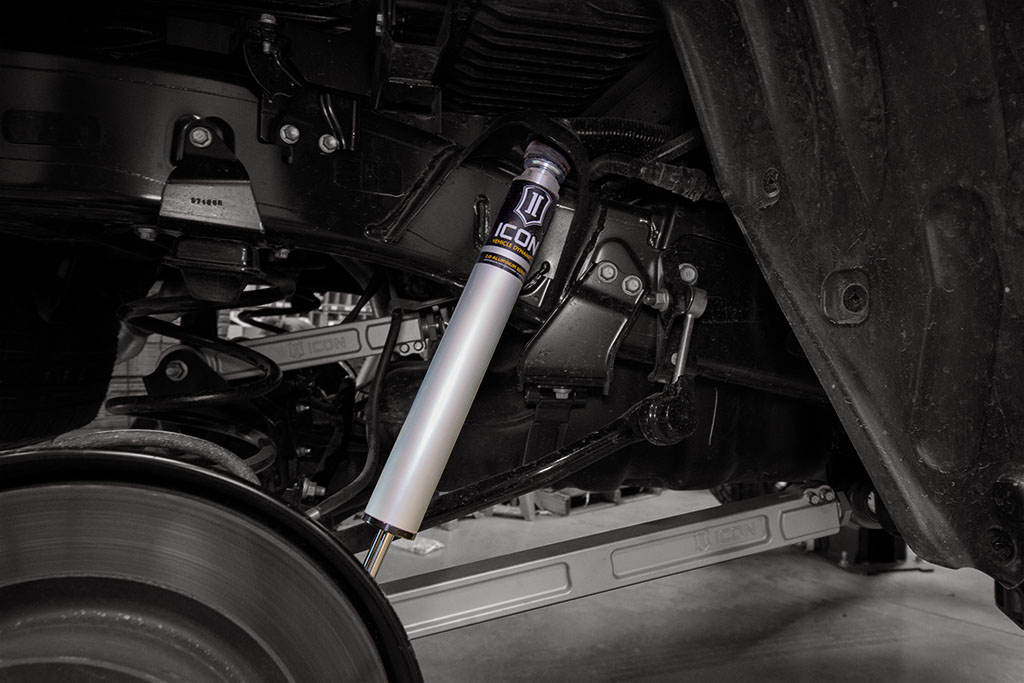

The ICON Vehicle Dynamics Stage 4 complete suspension system for the 2023-2025 Toyota Sequoia builds upon the ICON threaded-body V.S. 2.5 Series Coilovers with the addition of ICON tubular front upper control arms. This system offers improved on- and off-road performance as well as improved alignment specs with front-end lift and leveling for a proper stance and fitment of up to 35" tires. To compliment the internal reservoir coilover shock and tubular control arm combo, a sway bar drop kit for the front of the truck is included along with dual rate coil springs and our proven 2.0 nitrogen charged monotube shocks with internal reservoirs for the rear.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
Adjustable Compression	No
Adjustable Control Arm	No
Adjustable Damping	No
Adjustable Rebound	No
Bushings Included	Yes
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coils Quantity Front	2
Coils Quantity Rear	2
Add-On Part	198001 - BILLET SPANNER WRENCH KIT, 191013 - NIPPLE GREASING ADAPTER KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT
Maximum Lift Front	4.5
Spring Color	Black
Maximum Lift	4.5
Maximum Lift Rear	4
Recommended Aftermarket Tires	35" x 12.50" (Minor fender trimming and modifications may be required)
Minimum Lift Front	3
Front Shock Body Diameter	2.5
Rear Shock Body Diameter	2
Minimum Lift Rear	2
Front Reservoir Style	Internal
OEM Wheels & Tires Fitment	Yes
Rear Reservoir Style	Internal
Reservoir Style	Internal
Grade Type	Performance
Rear Spring Rate Type	Progressive Dual Rate
Spring Material	Steel
Mounting Hardware Included	Yes
Shocks Included	Yes
Front Spring Rate Type	Linear
Recommended Aftermarket Wheels	ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset, ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
Country of Origin	US
Condition	New
