ICON Vehicle Dynamics Suspension Lift Kit - K53235

Name: ICON Vehicle Dynamics Suspension Lift Kit - K53235
SKU: K53235
Price: 4271.92 USD
Availability: OutOfStock

23-25 SEQUOIA 3-4.5" STAGE 5 SUSPENSION SYSTEM BILLET

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K53235

Old price: $4,485.52

Price: $4,271.92

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

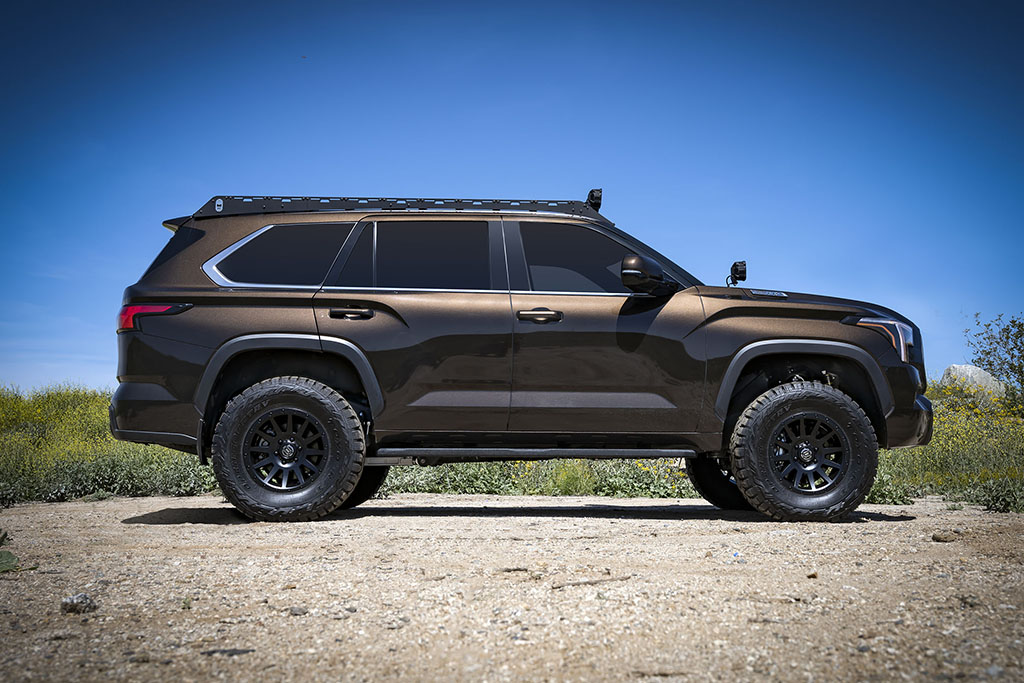

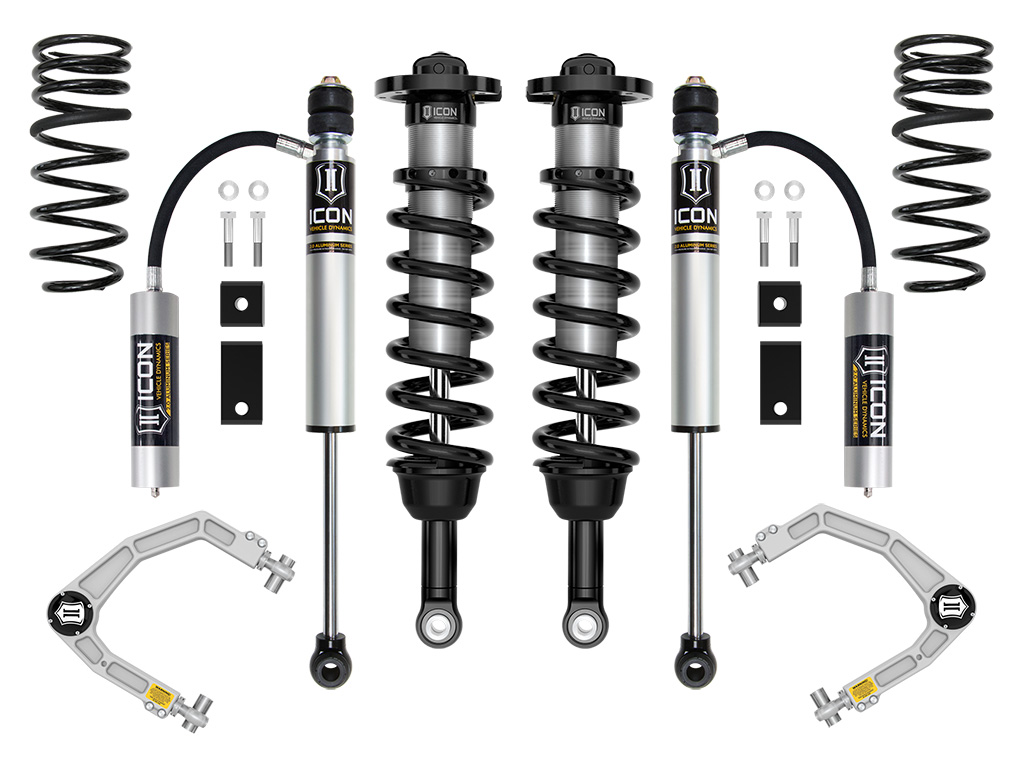

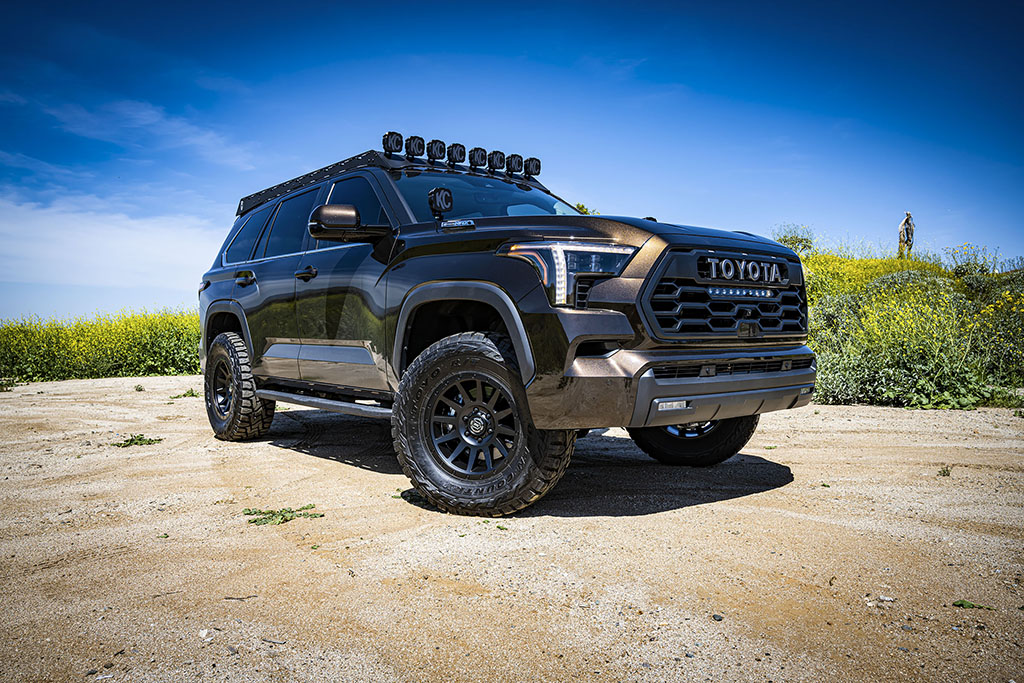

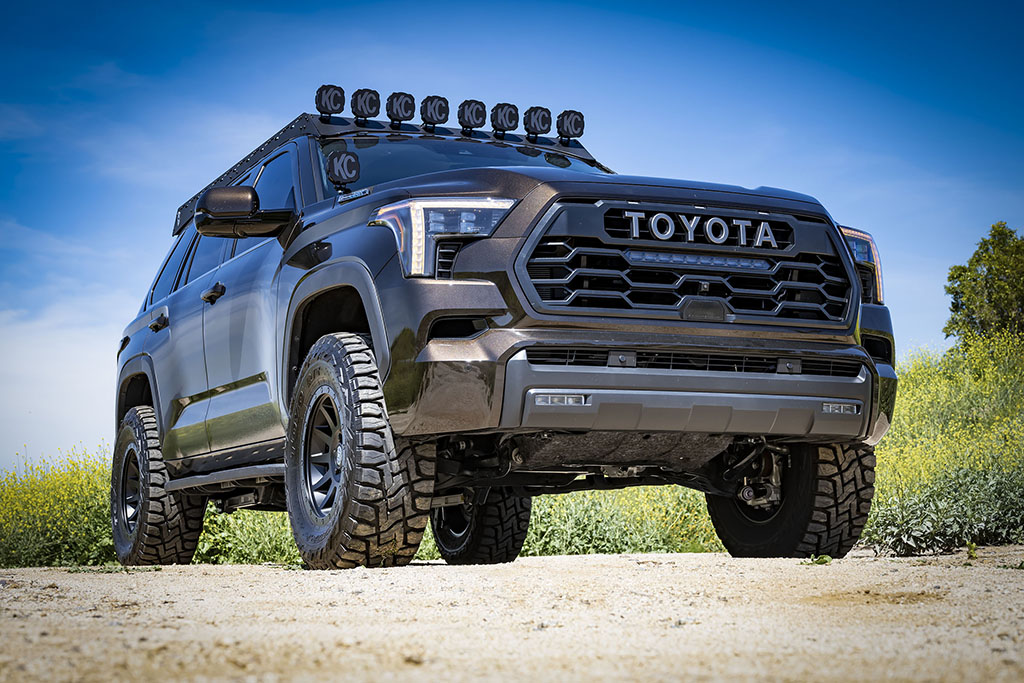

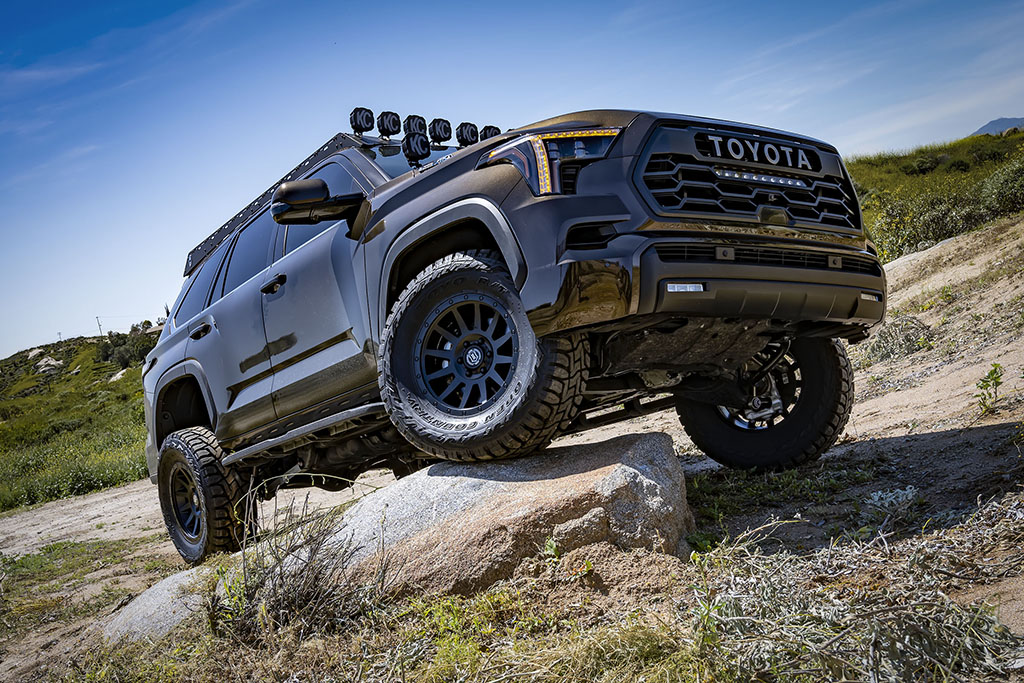

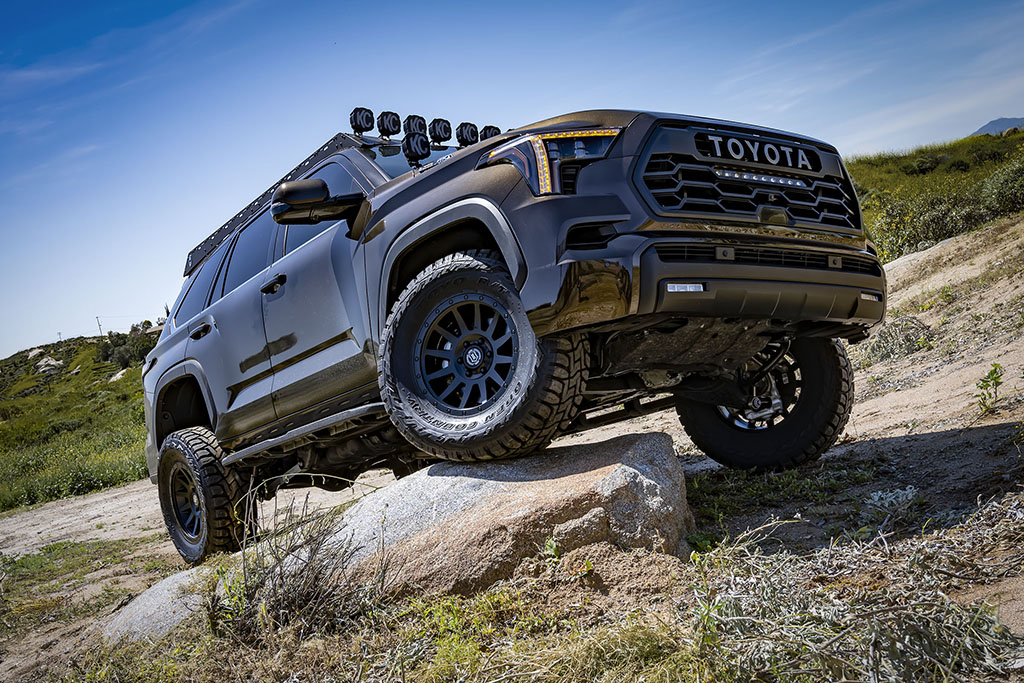

The ICON Vehicle Dynamics Stage 5 complete suspension system for the 2023-2025 Toyota Sequoia builds upon the Stage 4 system with the upgrade of the 2.0 Aluminum Series rear shocks to remote reservoir versions. This system offers improved on- and off-road performance, with greater rear shock heat dissipation, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the 2.0 remote reservoir rear shocks, dual rate rear coils, a 2.5 Series internal reservoir front coilover shock and billet front upper control arm combo is included along with a front sway bar drop kit.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
Adjustable Damping	No
Adjustable Rebound	No
Adjustable Control Arm	yes
Adjustable Compression	No
Front Reservoir Style	Internal
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
California Prop 65 Warning	Yes
Front Shock Body Diameter	2.5
Grade Type	Performance
Maximum Lift	4.5
Maximum Lift Front	4.5
Maximum Lift Rear	2
Minimum Lift Front	3
Minimum Lift Rear	0
Rear Shock Body Diameter	2
Recommended Aftermarket Tires	35" x 12.50" (Minor fender trimming and modifications may be required)
Spring Color	Black
Rear Spring Rate Type	Progressive Dual Rate
Rear Reservoir Style	Remote
Spring Material	Steel
Mounting Hardware Included	Yes
Shocks Included	Yes
OEM Wheels & Tires Fitment	Yes
Add-On Part	191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 198001 - BILLET SPANNER WRENCH KIT, 191013 - NIPPLE GREASING ADAPTER KIT, 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT, 191014 - .25" COLLAR SPANNER PIN WRENCH, 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT, 252012 - -4 TO -10 HOSE SHIELD KIT
Front Spring Rate Type	Linear
Recommended Aftermarket Wheels	ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset, ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
Active or Passive Suspension	Passive
Bushings Included	Yes
AAP_UDA_12	EA
AAP_UDA_4	55
AAP_UDA_22	1
Coils Quantity Front	2
Coils Quantity Rear	2
Country of Origin	US
Condition	New
