ICON Vehicle Dynamics Suspension Lift Kit - K53240D

Name: ICON Vehicle Dynamics Suspension Lift Kit - K53240D
SKU: K53240D
Price: 9437.93 USD
Availability: OutOfStock

23-25 SEQUOIA 3-4.5" STAGE 10 SUSPENSION SYSTEM BILLET CDXS

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K53240D

Old price: $9,909.83

Price: $9,437.93

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

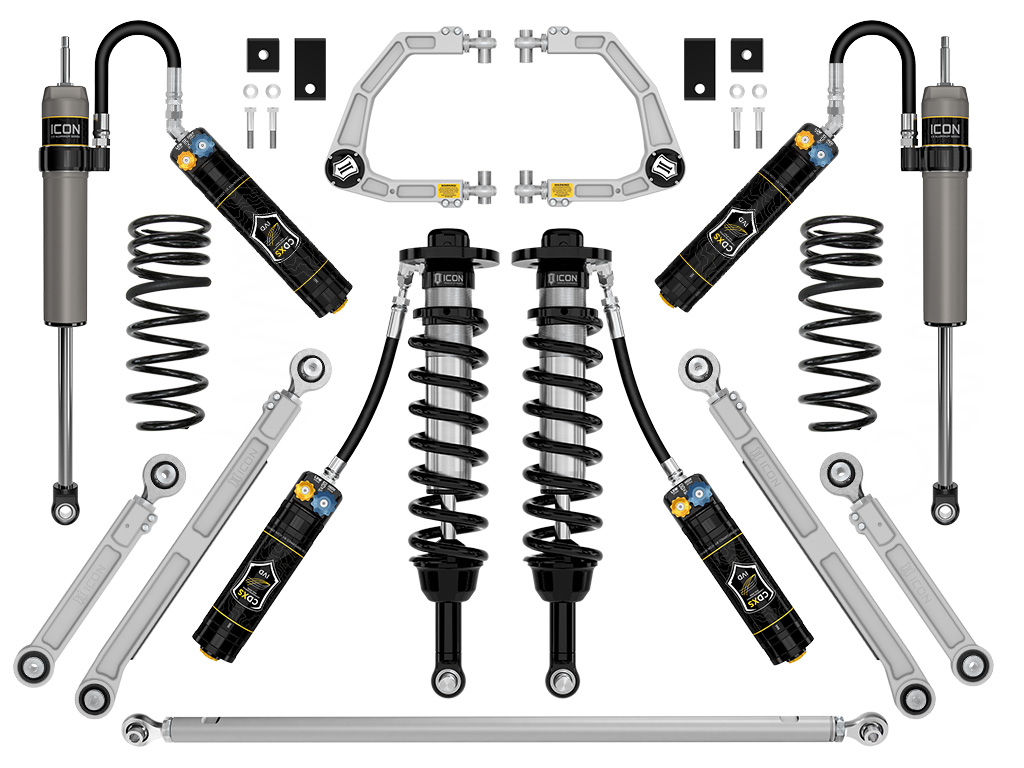

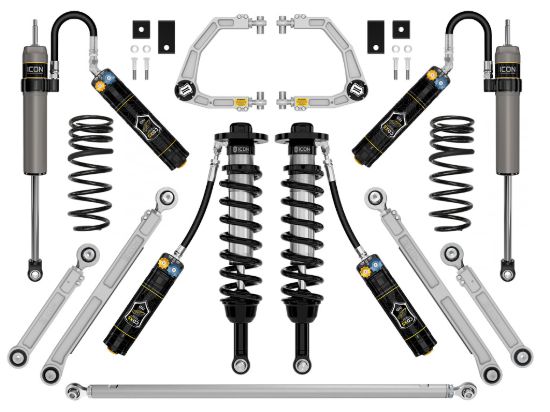

The ICON Vehicle Dynamics Stage 10 complete suspension system for the 2023-2025 Toyota Sequoia builds upon the Stage 9 system with the addition of billet aluminum upper and lower rear links and an adjustable rear track bar. This system offers improved on- and off-road performance with adjustable compression damping, as well as improved alignment specs and increased front and rear-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the billet rear link and track bar combo, a billet front upper control arm kit is included along with a front sway bar drop kit and dual rate rear coil springs and CDXS 2.5 Series coilovers and rear shocks.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
Spring Material	Steel
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
Adjustable Compression	Yes
Adjustable Control Arm	yes
Adjustable Damping	Yes
Adjustable Rebound	No
Bushings Included	Yes
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front	2
Coils Quantity Front	2
Coils Quantity Rear	2
Damping Adjustment Type	Dual Speed/Manual
Front Reservoir Style	Remote
Front Shock Body Diameter	2.5
Front Spring Rate Type	Linear
Grade Type	Performance
Maximum Lift	4.5
Maximum Lift Front	4.5
Maximum Lift Rear	2
Minimum Lift Front	3
Minimum Lift Rear	0
Mounting Hardware Included	Yes
OEM Wheels & Tires Fitment	Yes
Rear Reservoir Style	Remote
Rear Shock Body Diameter	2.5
Rear Spring Rate Type	Progressive Dual Rate
Recommended Aftermarket Tires	35" x 12.50" (Minor fender trimming and modifications may be required)
Recommended Aftermarket Wheels	ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset, ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
Reservoir Style	Remote
Shocks Included	Yes
Spring Color	Black
Add-On Part	55153 - 22-25 TUNDRA/23-25 SEQUOIA AIR RIDE/AUTO HEADLIGHT BRACKET KIT, 191013 - NIPPLE GREASING ADAPTER KIT, 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT, 252012 - -4 TO -10 HOSE SHIELD KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 198001 - BILLET SPANNER WRENCH KIT, 191014 - .25" COLLAR SPANNER PIN WRENCH
Country of Origin	US
Condition	New
