ICON Vehicle Dynamics Suspension Lift Kit - K53240TS

Name: ICON Vehicle Dynamics Suspension Lift Kit - K53240TS
SKU: K53240TS
Price: 7259.59 USD
Availability: OutOfStock

23-25 SEQUOIA 3-4.5" STAGE 10 SUSPENSION SYSTEM TUBULAR CDCV (TRD)

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K53240TS

Old price: $7,622.56

Price: $7,259.59

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

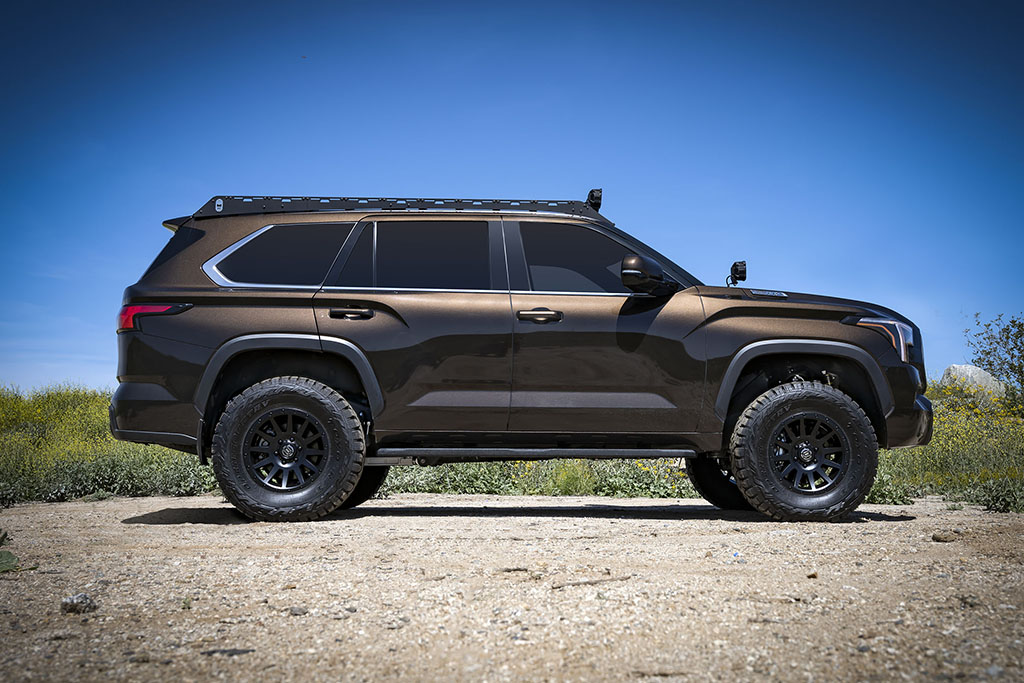

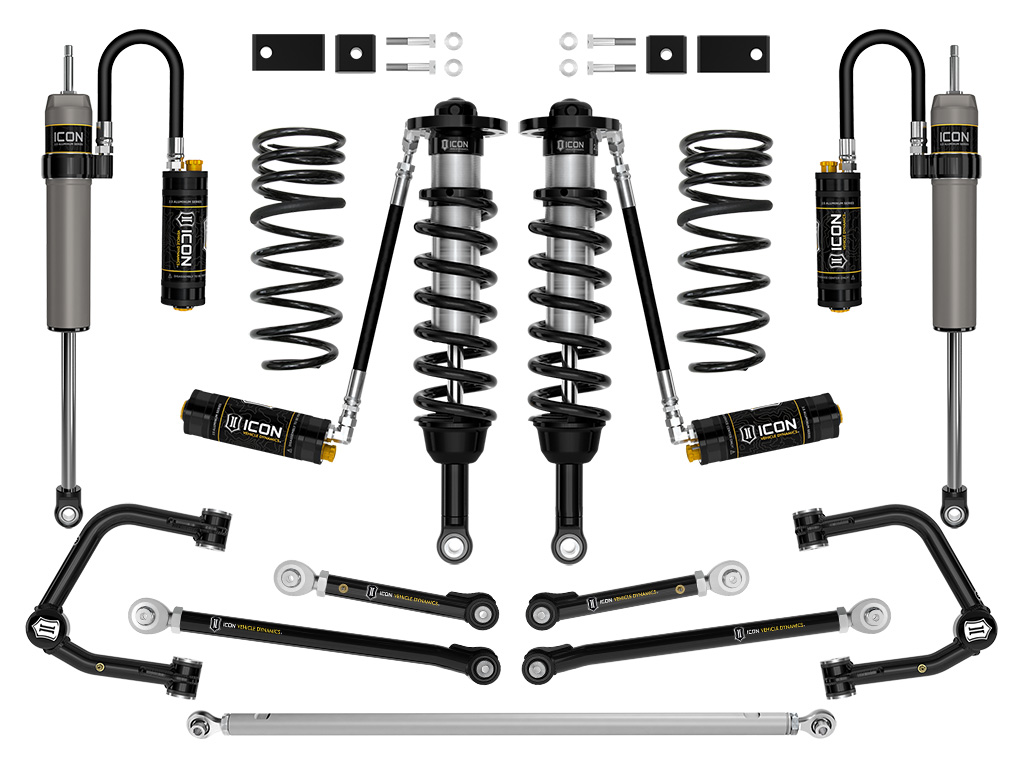

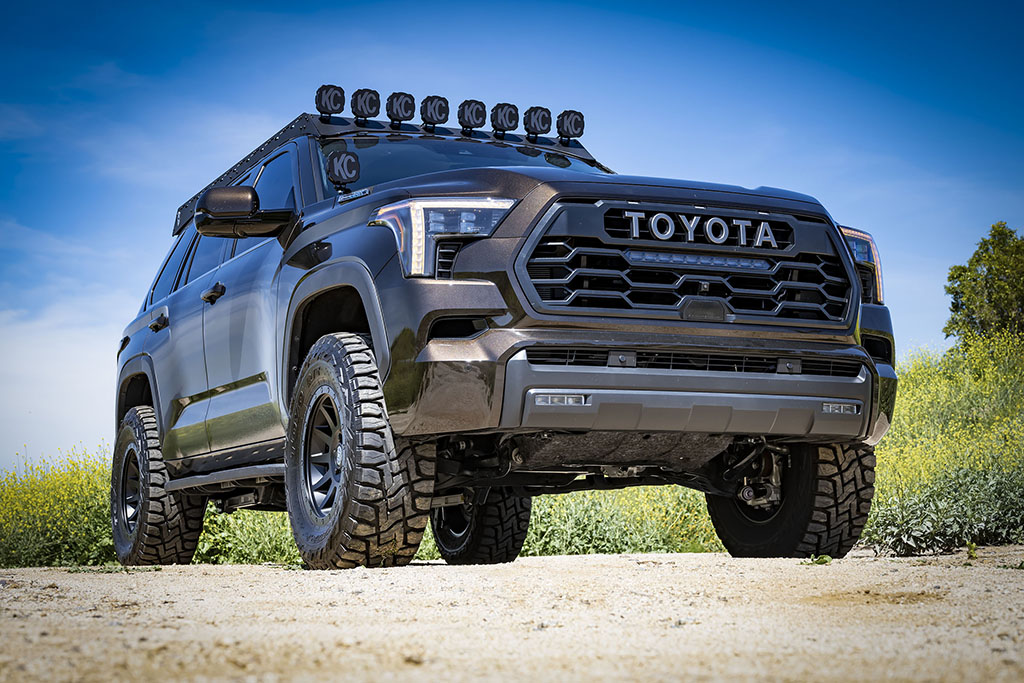

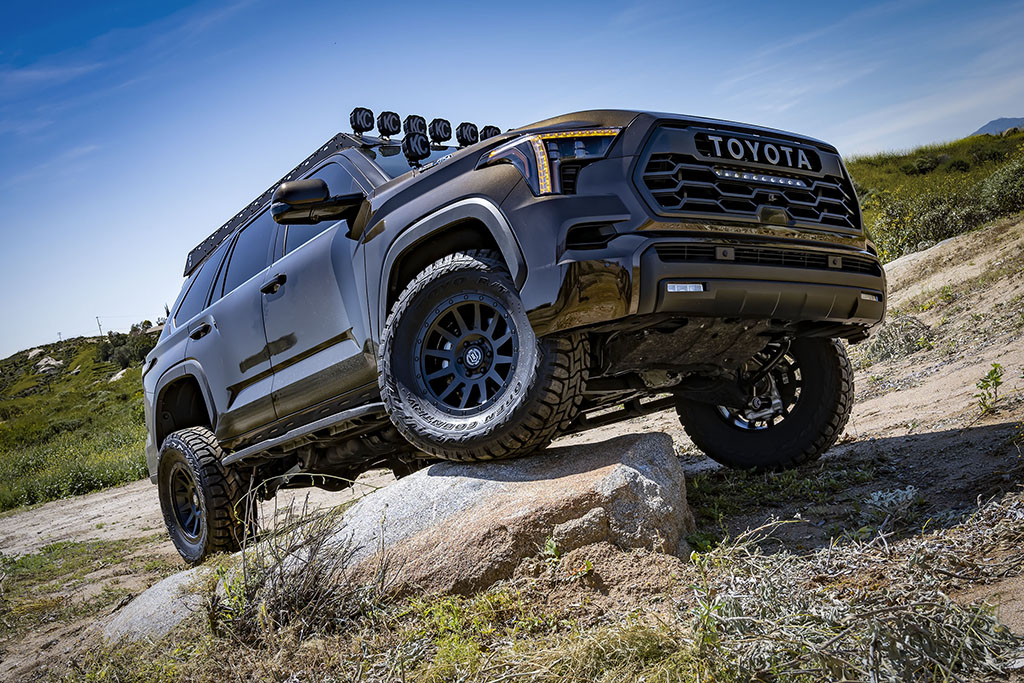

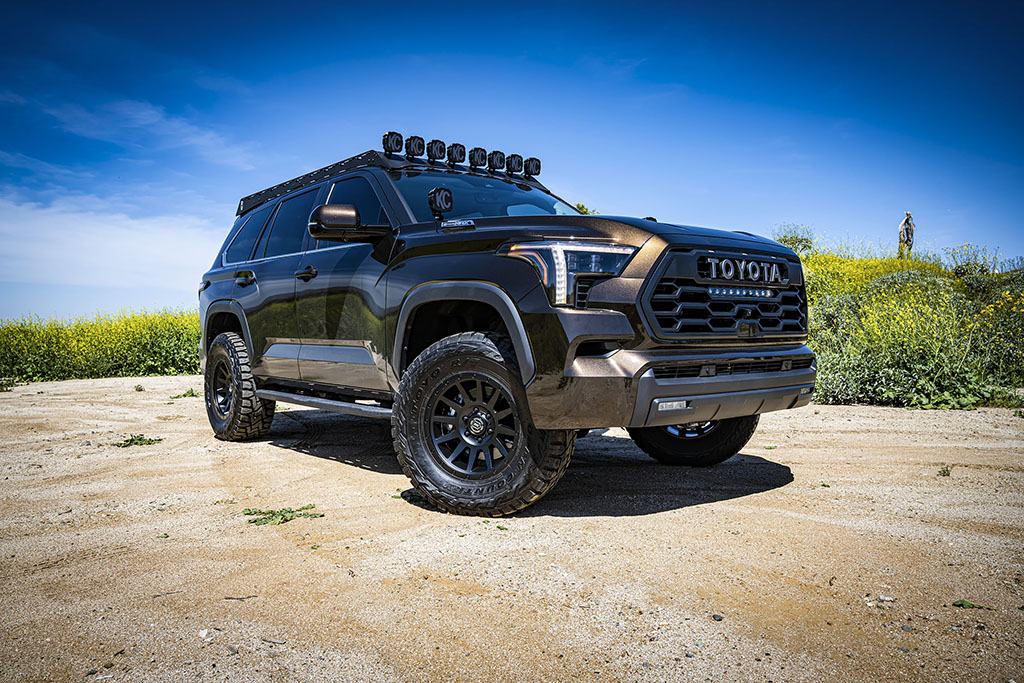

The ICON Vehicle Dynamics Stage 10 complete suspension system for the 2023-2025 Toyota Sequoia builds upon the Stage 9 system with the addition of billet aluminum upper and lower rear links and an adjustable rear track bar. This system offers improved on- and off-road performance with adjustable compression damping, as well as improved alignment specs and increased front and rear-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the billet rear link and track bar combo, a billet front upper control arm kit is included along with a front sway bar drop kit and dual rate rear coil springs and CDCV 2.5 Series coilovers and rear shocks.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
AAP_UDA_12	EA
Bushings Included	Yes
Coils Quantity Front	2
Coils Quantity Rear	2
Damping Adjustment Type	Manual
Front Reservoir Style	Remote
Front Shock Body Diameter	2.5
Grade Type	Performance
Maximum Lift	4.5
Maximum Lift Front	4.5
Maximum Lift Rear	4
Minimum Lift Front	3
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Adjustable Compression	Yes
Adjustable Control Arm	yes
Adjustable Damping	Yes
Adjustable Rebound	No
Coil Quantity Front	2
Recommended Aftermarket Wheels	ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset, ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
Rear Spring Rate Type	Progressive Dual Rate
Add-On Part	191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 252012 - -4 TO -10 HOSE SHIELD KIT, 191013 - NIPPLE GREASING ADAPTER KIT, 55153 - 22-25 TUNDRA/23-25 SEQUOIA AIR RIDE/AUTO HEADLIGHT BRACKET KIT, 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT, 198001 - BILLET SPANNER WRENCH KIT
Front Spring Rate Type	Linear
Minimum Lift Rear	2
Mounting Hardware Included	Yes
OEM Wheels & Tires Fitment	Yes
Rear Reservoir Style	Remote
Rear Shock Body Diameter	2.5
Recommended Aftermarket Tires	35" x 12.50" (Minor fender trimming and modifications may be required)
Reservoir Style	Remote
Shocks Included	Yes
Spring Color	Black
Spring Material	Steel
Country of Origin	US
Condition	New
