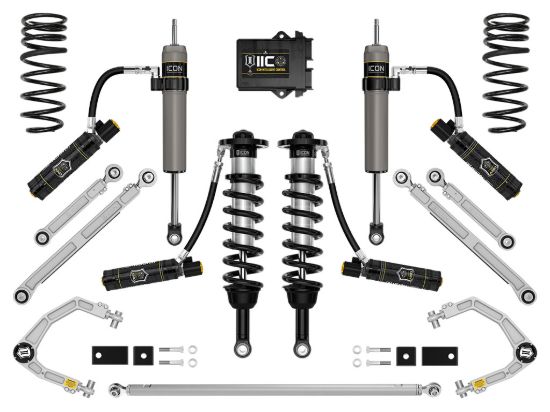

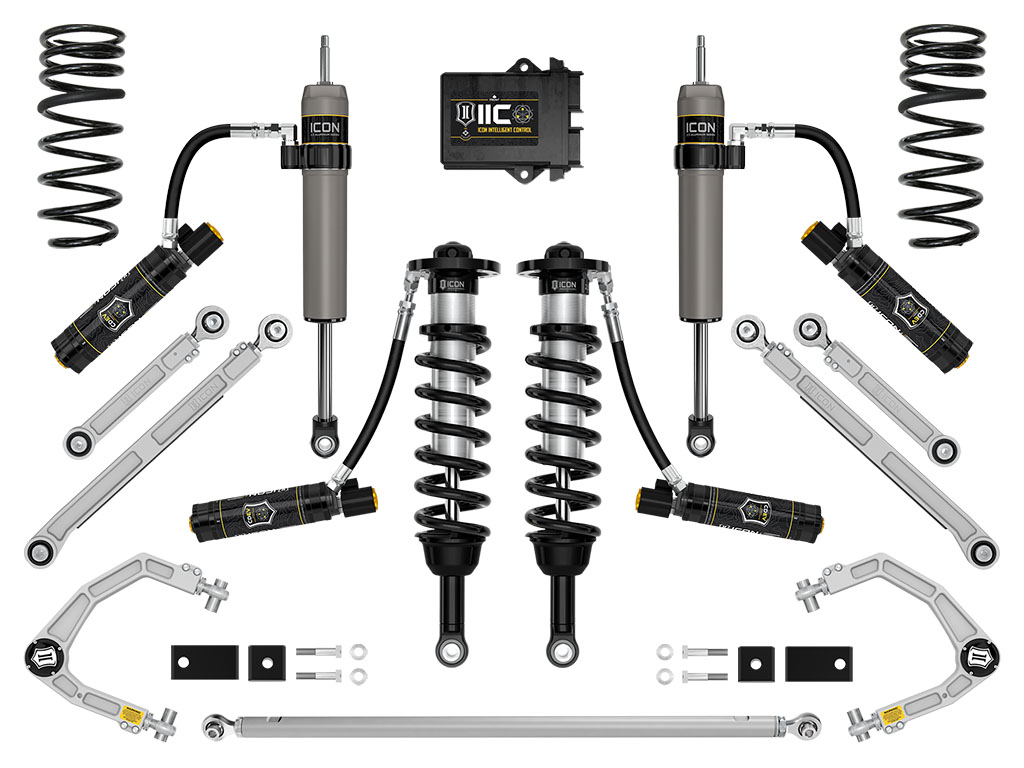

ICON Vehicle Dynamics Suspension Lift Kit - K53242

Name: ICON Vehicle Dynamics Suspension Lift Kit - K53242
SKU: K53242
Price: 10795.15 USD
Availability: OutOfStock

23-25 SEQUOIA 3-4.5" STAGE 12 SUSPENSION SYSTEM BILLET

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K53242

Old price: $11,334.91

Price: $10,795.15

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

The ICON Vehicle Dynamics Stage 12 complete suspension system for the 2023-2025 Toyota Sequoia builds upon Stage 11 with the inclusion of billet rear links and track bar. This system offers improved on- and off-road performance, with active electronic shock damping adjustment, as well as improved alignment specs, improved rear articulation, and increased front-end lift height range for a proper stance and fitment of up to 35" tires. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
Bushings Included	Yes
Active or Passive Suspension	Active
Adjustable Rebound	No
Adjustable Damping	Yes
Adjustable Control Arm	yes
Adjustable Compression	Yes
AAP_UDA_4	55
AAP_UDA_22	1
AAP_UDA_12	EA
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
California Prop 65 Warning	Yes
Grade Type	Performance
Maximum Lift Front	4.5
Maximum Lift Rear	2
Minimum Lift Front	3
Mounting Hardware Included	Yes
OEM Wheels & Tires Fitment	Yes
Rear Reservoir Style	Remote
Rear Shock Body Diameter	2.5
Rear Spring Rate Type	Progressive Dual Rate
Recommended Aftermarket Tires	35" x 12.50" (Minor fender trimming and modifications may be required)
Reservoir Style	Remote
Shocks Included	Yes
Spring Color	Black
Spring Material	Steel
Maximum Lift	4.5
Coil Quantity Front	2
Coils Quantity Front	2
Coils Quantity Rear	2
Damping Adjustment Type	Electronic
Front Reservoir Style	Remote
Front Shock Body Diameter	2.5
Front Spring Rate Type	Linear
Add-On Part	198001 - BILLET SPANNER WRENCH KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT, 55153 - 22-25 TUNDRA/23-25 SEQUOIA AIR RIDE/AUTO HEADLIGHT BRACKET KIT, 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT, 191014 - .25" COLLAR SPANNER PIN WRENCH, 252012 - -4 TO -10 HOSE SHIELD KIT, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 191013 - NIPPLE GREASING ADAPTER KIT
Recommended Aftermarket Wheels	ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset, ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
Country of Origin	US
Condition	New
