ICON Vehicle Dynamics Suspension Lift Kit - K62591L

Name: ICON Vehicle Dynamics Suspension Lift Kit - K62591L
SKU: K62591L
Price: 2417.68 USD
Availability: OutOfStock

23 FORD F250/F350 GAS 2.5" STAGE 1 SUSPENSION SYSTEM W EXPANSION PACK

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K62591L

Old price: $2,538.57

Price: $2,417.68

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

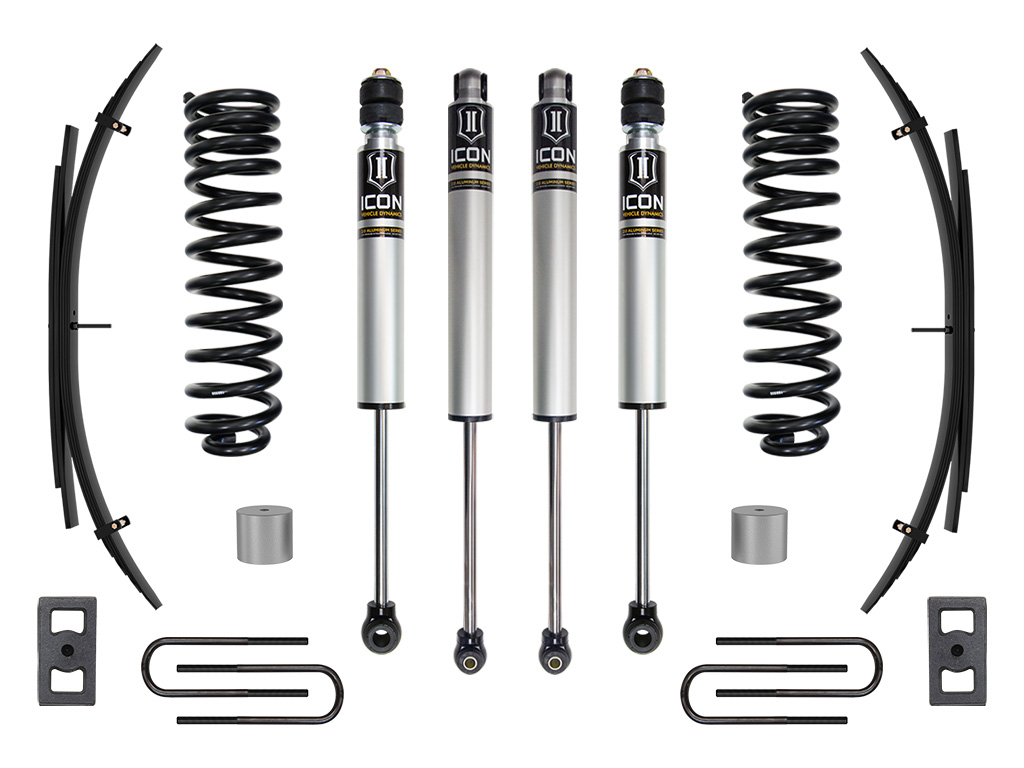

The ICON 2.5” suspension system is a great way to lift your 4WD 2023 Ford F-250/F-350 Super Duty while improving ride quality and performance. This entry level system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. ICON's Stage 1 System is comprised of dual rate coil springs optimized for trucks equipped with gasoline engines, alignment cams for adding caster, rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap, and ICON 2.0 Aluminum Series internal reservoir shocks front and rear. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
Add-On Part	611081 - F-SERIES DYNAMIC HEADLAMP REAR SENSOR KIT, 64039 - 08-25 FSD TRACK BAR BUMP STEER BRACKET KIT, 61111 - 17-25 FSD FRONT 2.5" EXTENDED SS BRAKE LINE KIT, 64038 - 17-25 FSD ADJ TRACK BAR KIT
Adjustable Compression	No
Adjustable Damping	No
Adjustable Rebound	No
Bushings Included	Yes
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Spring Color	Black
Coil Spring Material	Steel
Coils Quantity Front	2
Dual Rate Coil Springs	Yes
Front Reservoir Style	Internal
Front Shock Body Diameter	2
Front Spring Rate Type	Progressive Dual Rate
Grade Type	Performance
Leaf Spring Color	Black
Leaf Spring Leaf Quantity	7
Leaf Spring Material	Steel
Maximum Lift	2.5
Maximum Lift Front	2.5
Maximum Lift Height Front	2.5
Maximum Lift Height Rear	.5
Maximum Lift Rear	2
Minimum Lift Front	1.5
Mounting Hardware Included	Yes
OEM Wheels & Tires Fitment	Yes
Rear Reservoir Style	Internal
Rear Shock Body Diameter	2
Recommended Aftermarket Tires	35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels	ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset, ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset, ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Shocks Included	Yes
Spring Color	Black
Spring Material	Steel
Country of Origin	US
Condition	New
