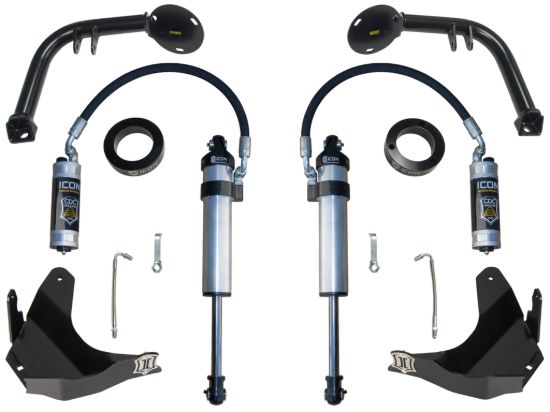

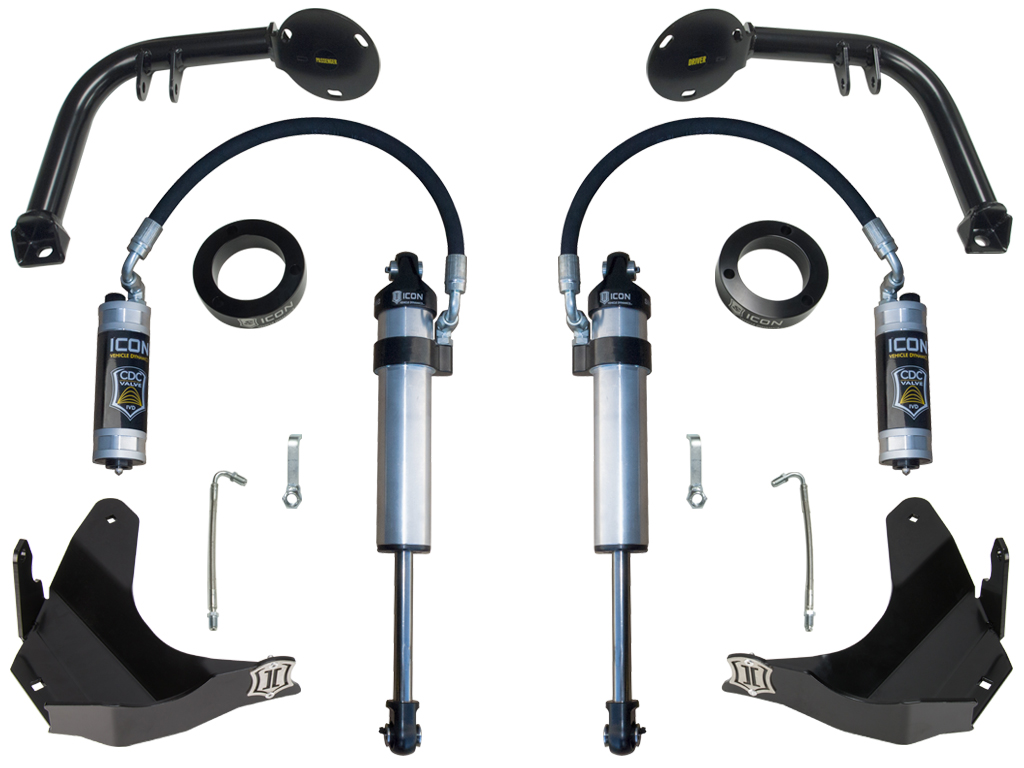

ICON Vehicle Dynamics Suspension Shock Absorber Kit - K53126

Name: ICON Vehicle Dynamics Suspension Shock Absorber Kit - K53126
SKU: K53126
Price: 2595.13 USD
Availability: InStock

16-23 TACOMA S2 STAGE 2 UPGRADE SYSTEM

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K53126

Old price: $2,724.88

Price: $2,595.13

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

The ICON Vehicle Dynamics S2 Secondary Shock System redefines the off-road capability of the 2016-2023 Toyota Tacoma by allowing for the installation of a secondary shock to an existing ICON coilover setup. The addition of a secondary 2.5 Aluminum Series shock means rougher terrain and larger off-road obstacles can be overcome with confidence as the damping ability of the vehicle’s suspension is effectively doubled. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. As opposed to overly complicated and expensive long travel kits, the ICON S2 System is an affordable upgrade that drastically increases off-road performance, is easy to install, and has a modular design that allows 2016-2023 Toyota Tacoma owners to upgrade in steps or all at once.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
Add-On Part	252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR), 252012 - -4 TO -10 HOSE SHIELD KIT
Adjustable Compression	Yes
Adjustable Rebound	No
Adjustable Ride Height	No
Bushings Included	Yes
Shaft Diameter	0.875
Cylinder Diameter	2.5
Recommended Aftermarket Tires	33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Cylinder Material	Aluminum
Cylinder Finish	Anodized
Valving Type	Digressive
Lower Mount Type	Eyelet
Upper Mount Type	Eyelet
Cylinder Color	Gray
Damping Adjustment Type	Manual
Dust Shield Included	No
Includes Bump Stop	No
Damping Type	Oil
Grade Type	Performance
Internal Construction Type	Single Tube
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Mounting Hardware Included	Yes
Remote Reservoir	Yes
California Prop 65 Warning	Yes
Gas Charged	Yes
OEM Wheels & Tires Fitment	Yes
Shock Mounts Included	Yes
Shocks Included	Yes
Recommended Aftermarket Wheels	ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset, ICON Alloys - 18x9" w/ 5" Backspace / 0mm Offset, ICON Alloys - 20x9" w/ 5" Backspace / 0mm Offset
Shaft Material	Chrome
Country of Origin	US
Condition	New
